Price Notice: Prices are not final. Confirm price and stock before ordering.
In stock
PKR 36,999
| Brand | ASUS |
| Model | PRIME B760M-A |
| Chipset | Intel B760 |
| CPU Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Supported CPUs | Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron Processors |
| RAM Type | DDR5 |
| RAM Capacity | Up to 96 GB |
| RAM Speed | DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (@x4) 1 x PCIe 4.0 x16 (@x1) |
| M.2 Slots | 2 x M.2 (PCIe 4.0 x4) |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x DisplayPort 2 x HDMI |
| LAN | Realtek 2.5Gb Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek 7.1 HD Audio with Audio Shielding, Premium Audio Capacitors, Dedicated PCB Layers |

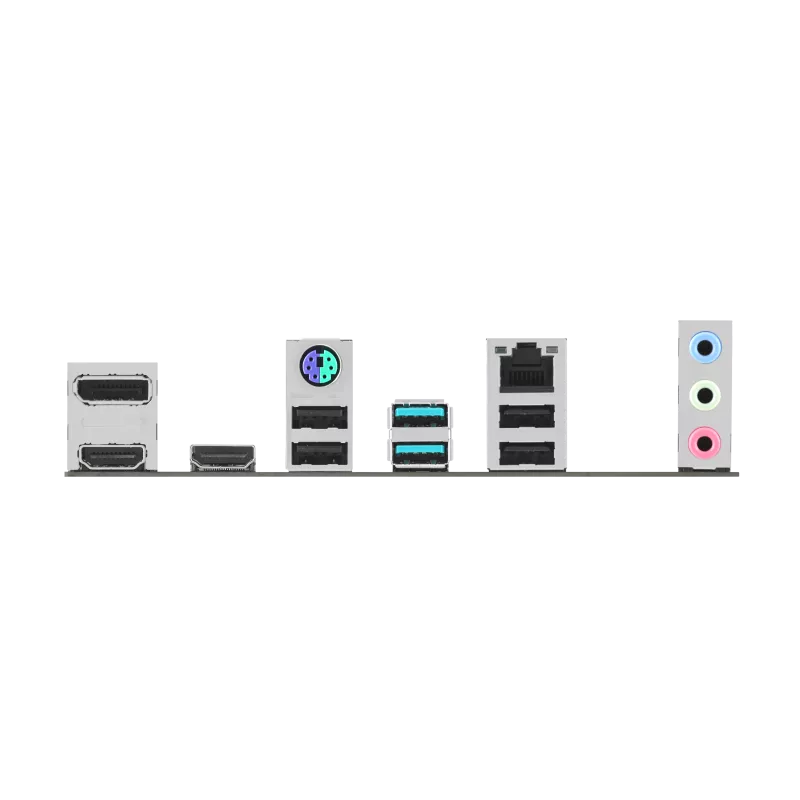

| USB Ports | • Rear: 2 x USB 3.2 Gen 2 • Rear: 4 x USB 2.0 • Front: 1 x USB 3.2 Gen 1 Header • Front: 1 x USB 3.2 Gen 1 Type-C Header |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin +12V Power • 1 x USB 3.2 Gen 1 Header • 1 x USB 3.2 Gen 1 Type-C Header • 2 x USB 2.0 Headers • 1 x 4-pin CPU Fan Header • 2 x 4-pin Chassis Fan Headers • 2 x Addressable Gen 2 RGB Headers • 1 x Aura RGB Header • 1 x LPT Header • 1 x COM Port Header • 1 x Front Panel Audio Header • 1 x 10-1 pin System Panel Header |
| Cooling Features | VRM, M.2, PCH Heatsinks; Hybrid Fan Headers; Fan Xpert 2+ |
| RGB Support | Yes – Aura Sync |
| Warranty | 10 Months Local Warranty |

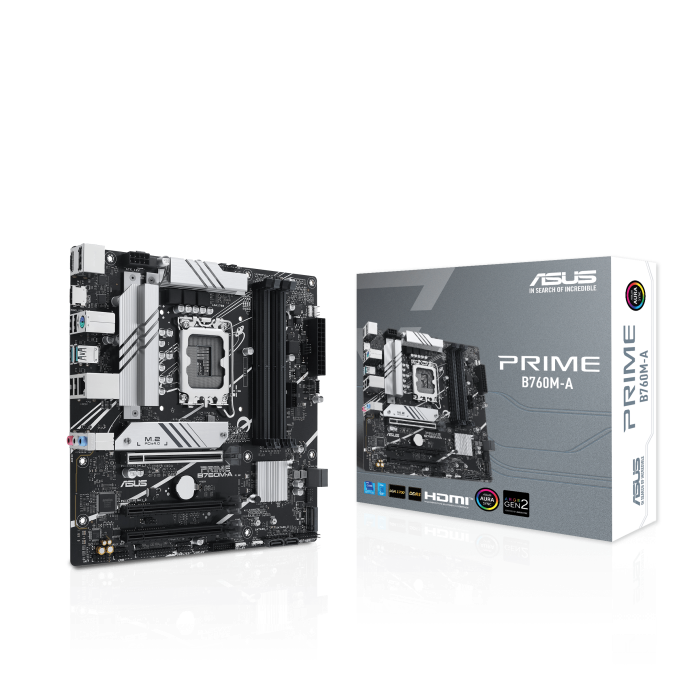

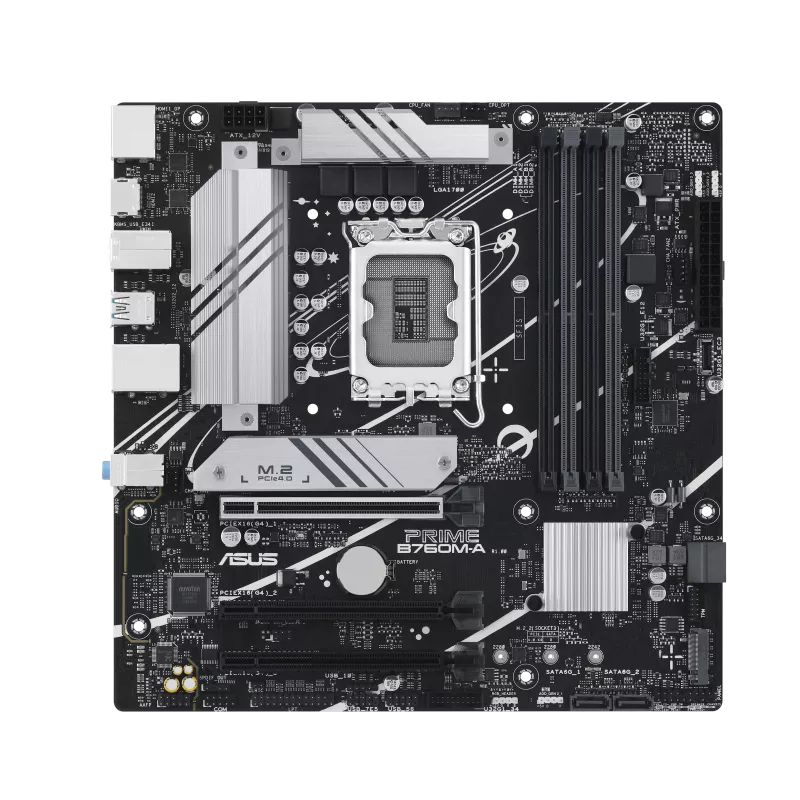

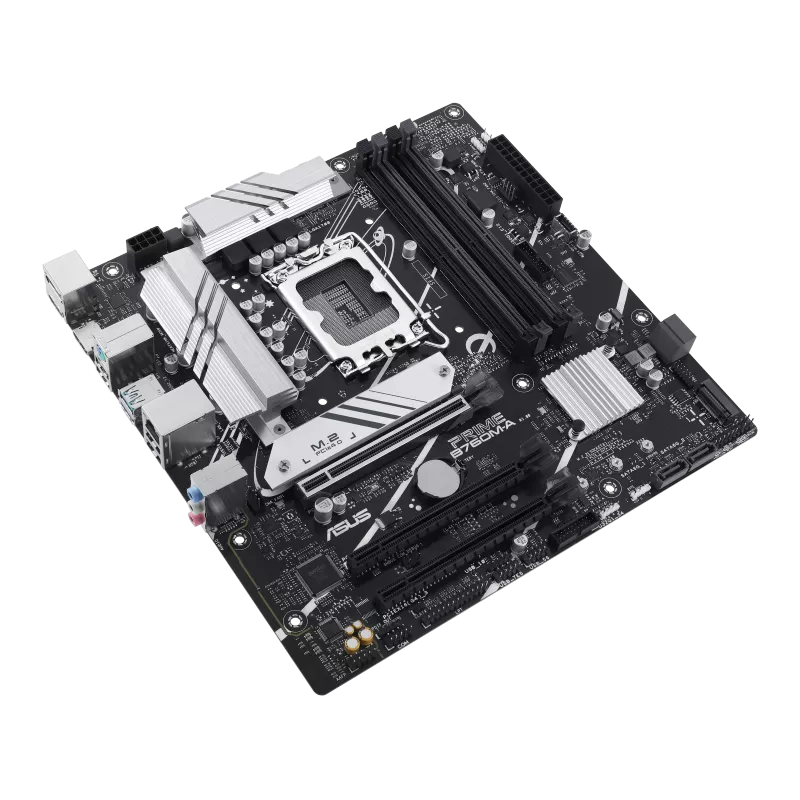

The ASUS PRIME B760M-A DDR5 LGA1700 Micro-ATX Motherboard is built for high-performance computing and advanced AI PC applications, supporting Intel 12th, 13th, and 14th Gen Core processors, as well as Pentium Gold and Celeron CPUs. Powered by the Intel B760 chipset, it offers robust power delivery, comprehensive cooling, and flexible connectivity for modern workloads.
It features dual-channel DDR5 memory support with ASUS Enhanced Memory Profile II and OptiMem II, allowing high-speed memory configurations. Storage options include 2 x M.2 slots (PCIe 4.0 x4) and SATA 6Gb/s ports, while expansion is available via PCIe 4.0 x16 and additional PCIe 4.0 slots. Networking is handled through Realtek 2.5Gb Ethernet, and multiple USB options, including rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C®, provide fast peripheral connectivity.
For cooling and customization, the motherboard includes VRM, M.2, and PCH heatsinks, hybrid fan headers with Fan Xpert 2+, Aura Sync RGB header, and dual Gen 2 addressable headers. Audio is delivered via premium onboard codecs, shielding, and dedicated PCB layers, ensuring immersive and high-fidelity sound.
