| Brand | MSI |
| Model | GAMING B860 GAMING PLUS WIFI |
| Chipset | Intel B860 |
| CPU Socket | LGA1851 |
| Form Factor | ATX |
| Supported CPUs | Intel Core Ultra (Series 2) Processors |
| RAM Type | DDR5 |
| RAM Capacity | 256 GB |
| RAM Speed | DDR5 8800+ MHz (OC) |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 5.0 |
| PCIe Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 4.0 x1 |
| M.2 Slots | 3 x M.2 (PCIe 5.0/4.0) |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x HDMI 1 x DisplayPort 1 x USB-C (DisplayPort/Thunderbolt 4) |
| LAN | 5Gb Ethernet |
| Wireless Connectivity | WiFi 7 + Bluetooth 5.4 |
| Audio | Realtek ALC897 7.1 HD Audio |

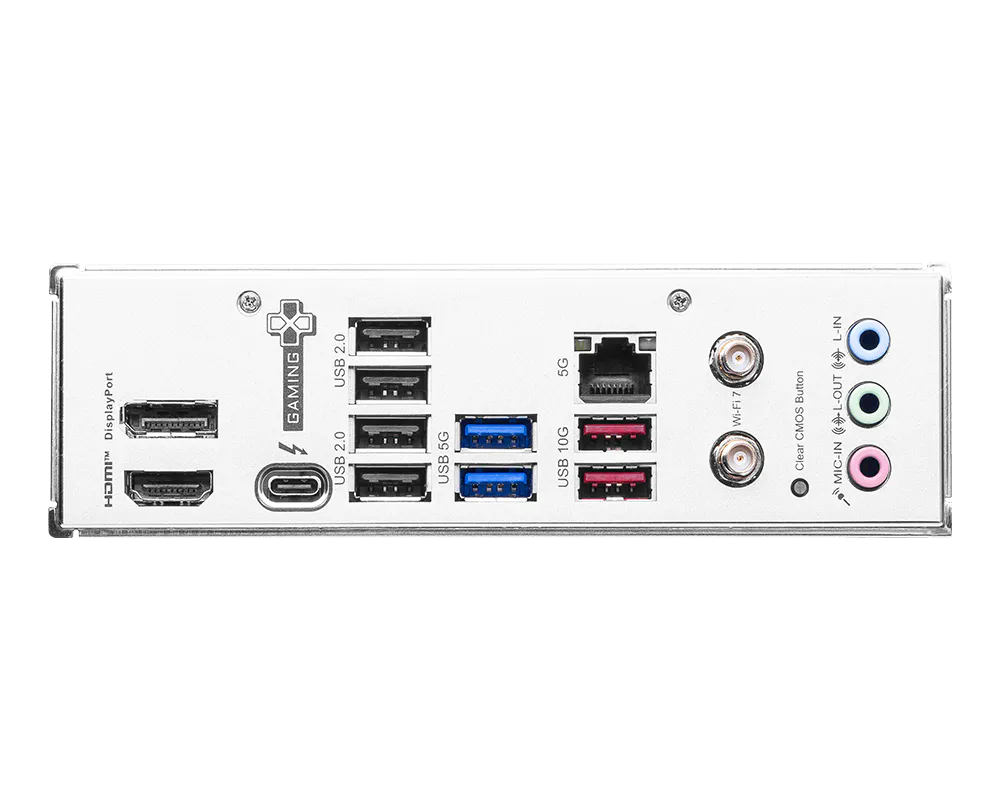

| USB Ports | • Rear: 1 x Thunderbolt 4 (USB-C 40Gbps) • Rear: 2 x USB 3.2 Gen 2 • Rear: 2 x USB 3.2 Gen 1 • Rear: 4 x USB 2.0 • Front: 1 x USB 10Gbps Type-C Header • Front: 4 x USB 5Gbps Type-A • Front: 2 x USB 2.0 Headers |
| Internal Headers | • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan Header • 1 x Pump/System Fan Header • 4 x System Fan Headers • 1 x USB-C Header • 2 x USB 2.0 Headers |
| Cooling Features | Extended Heatsink Design + M.2 Shield + Smart Fan Control |
| RGB Support | Yes – Mystic Light |
| Warranty | 10 Months Local Warranty |

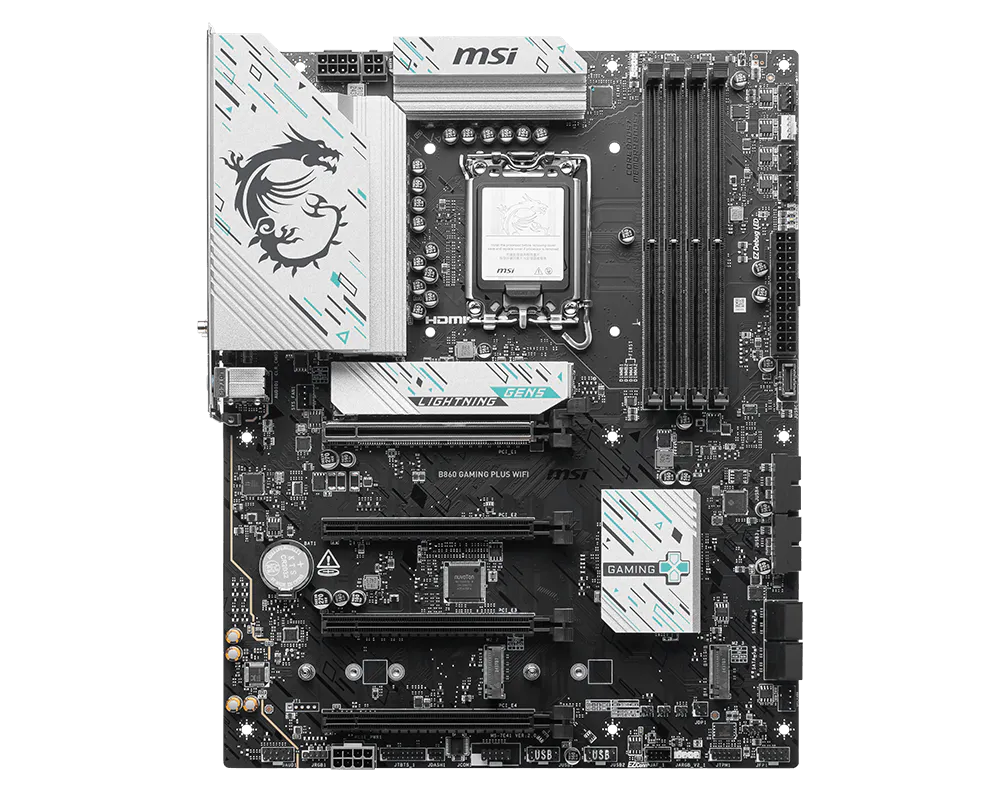

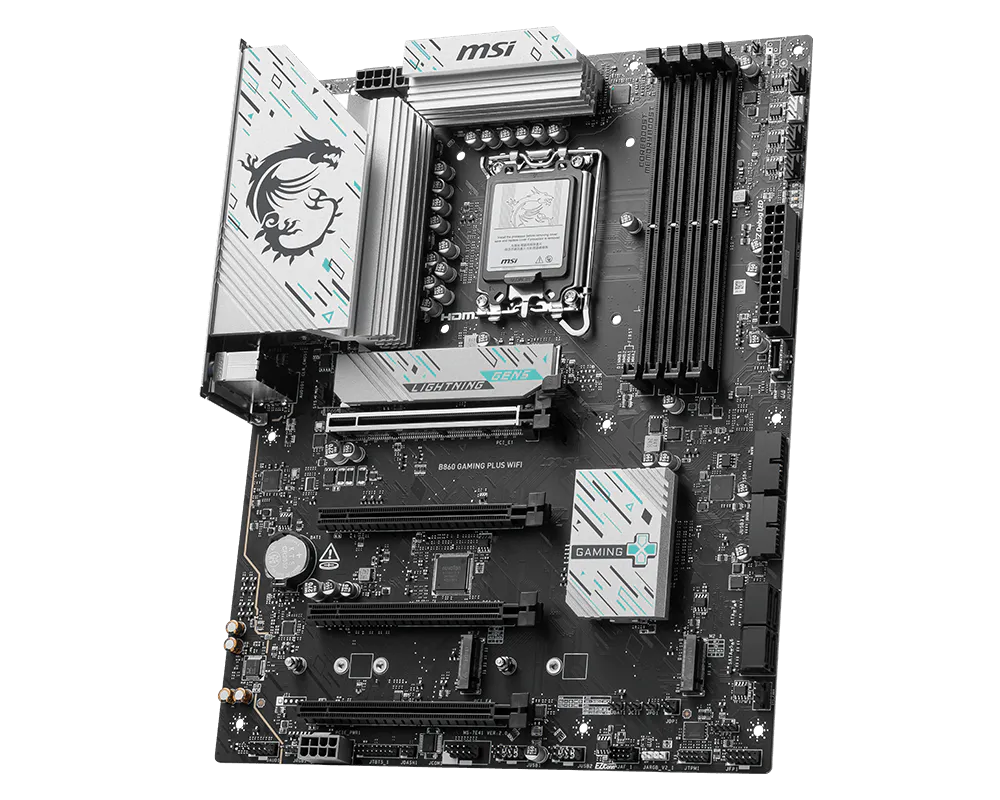

The MSI GAMING B860 GAMING PLUS WIFI DDR5 LGA1851 ATX Motherboard is designed to unlock the full potential of next-generation Intel platforms, delivering exceptional performance and connectivity for modern gaming and productivity systems. Built on the Intel B860 chipset and supporting Intel Core Ultra (Series 2) processors, this ATX motherboard ensures stability with a refined power design and premium component layout.
With support for DDR5 memory up to 8800+ MHz (OC) and an impressive 256 GB capacity across 4 DIMM slots, the MSI GAMING B860 GAMING PLUS WIFI DDR5 LGA1851 ATX Motherboard is ready for heavy multitasking and high-speed workloads. Featuring PCIe 5.0 x16, multiple PCIe expansion slots, and triple M.2 storage support (PCIe 5.0 & 4.0), it provides outstanding flexibility for high-performance builds.
Connectivity stands out with Intel Killer 5Gb Ethernet, advanced WiFi 7, and integrated Thunderbolt 4, enabling ultra-fast data transfer and multi-display support. Combined with robust cooling, EZ Debug LEDs, and customizable RGB lighting, the MSI GAMING B860 GAMING PLUS WIFI DDR5 LGA1851 ATX Motherboard is a future-ready choice for powerful, stable, and expandable PC systems.
