| Brand | MSI |
| Model | GAMING B860M GAMING WIFI |
| Chipset | Intel B860 |
| CPU Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Supported CPUs | Intel Core Ultra (Series 2) Processors |
| RAM Type | DDR5 |
| RAM Capacity | 128 GB |
| RAM Speed | DDR5 9066+ MHz (OC) |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 5.0 |
| PCIe Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 |
| M.2 Slots | 2 x M.2 (PCIe 5.0/4.0) |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x HDMI 1 x DisplayPort |
| LAN | 5Gb Ethernet |
| Wireless Connectivity | WiFi 7 + Bluetooth 5.4 |
| Audio | Realtek ALC897 7.1 HD Audio |

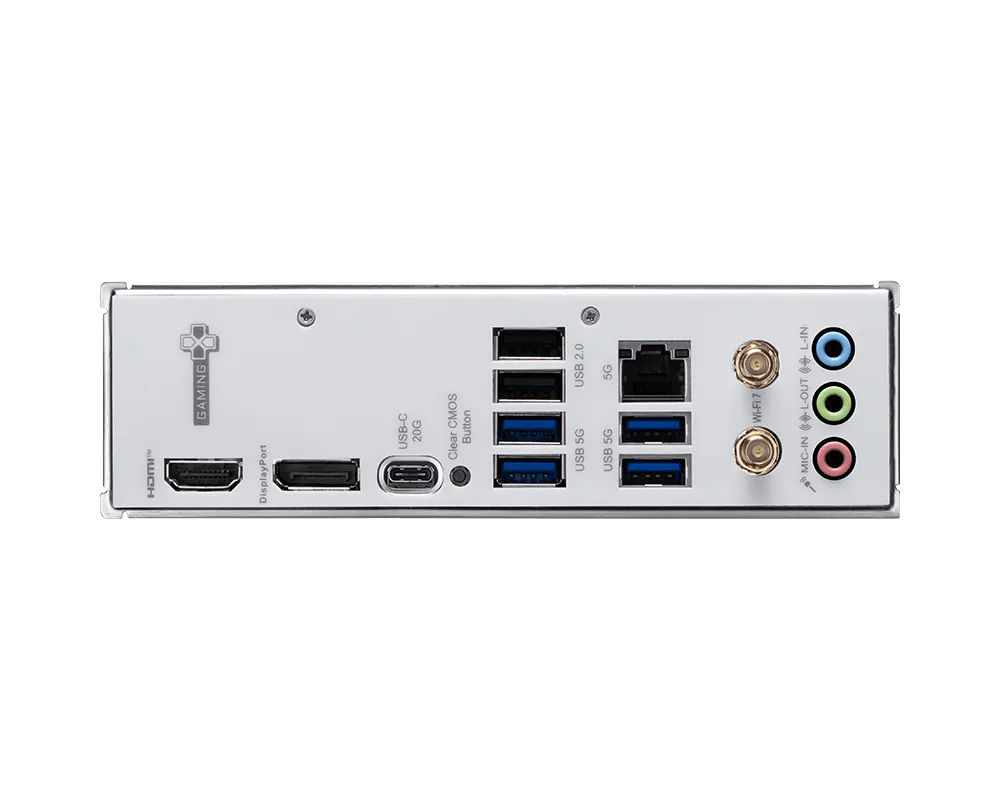

| USB Ports | • Rear: 1 x USB 20Gbps Type-C • Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB 10Gbps Type-C Header • Front: 2 x USB 5Gbps Type-A • Front: 2 x USB 2.0 Headers |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan Header • 1 x Pump/System Fan Header • 2 x System Fan Headers • 1 x USB-C Header • 2 x USB 2.0 Headers |
| Cooling Features | Extended Heatsink Design + Smart Fan Control |
| RGB Support | Yes – Mystic Light |
| Warranty | 10 Months Local Warranty |

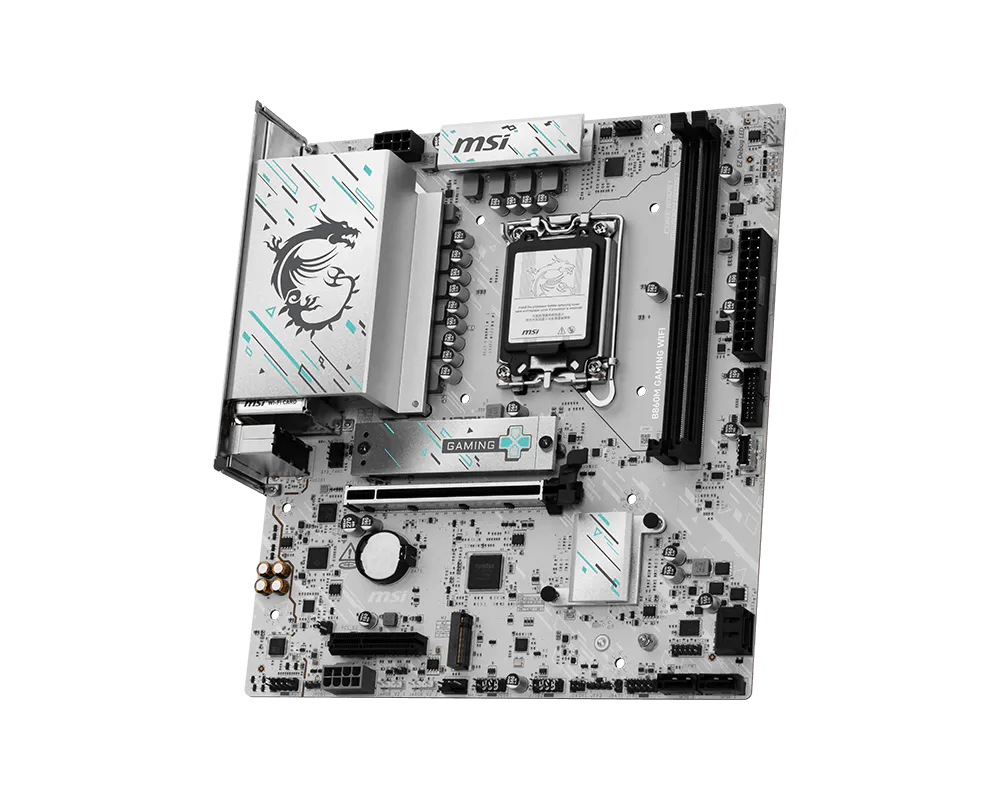

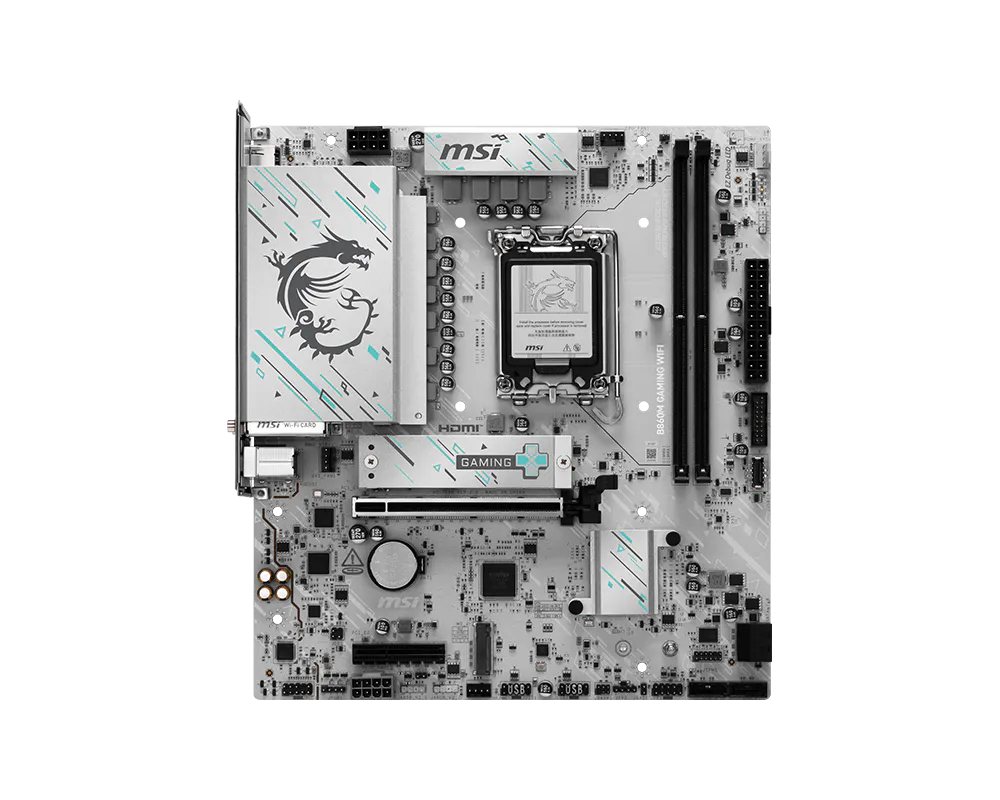

The MSI GAMING B860M GAMING WIFI DDR5 LGA1851 Micro-ATX Motherboard is built to power next-generation Intel systems with precision, speed, and reliability. Featuring the Intel B860 chipset and supporting Intel Core Ultra (Series 2) processors, this compact Micro-ATX board delivers exceptional performance through an optimized power design and efficient layout tailored for modern gaming and productivity builds.
Equipped with DDR5 memory support up to 9066+ MHz (OC) and a maximum capacity of 128 GB, the MSI GAMING B860M GAMING WIFI DDR5 LGA1851 Micro-ATX Motherboard ensures lightning-fast responsiveness and multitasking. With PCIe 5.0 x16 support, dual M.2 slots (PCIe 5.0 & 4.0), and reliable storage expansion, it offers the speed and flexibility required for high-performance systems.
Connectivity is cutting-edge with 5Gb Ethernet, integrated WiFi 7, and a wide range of high-speed USB ports including USB 20Gbps Type-C. Enhanced with practical features like EZ Debug LEDs, robust cooling headers, and RGB lighting support, the MSI GAMING B860M GAMING WIFI DDR5 LGA1851 Micro-ATX Motherboard is a future-ready solution for stable, high-performance PC builds.
