Price Notice: Prices are not final. Confirm price and stock before ordering.
In stock
PKR 22,499
| Brand | ASUS |
| Model | PRIME A520M-K/CSM |
| Chipset | AMD A520 |
| CPU Socket | AM4 |
| Form Factor | Micro-ATX |
| Supported CPUs | AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series Processors |
| RAM Type | DDR4 |
| RAM Capacity | 64 GB |
| RAM Speed | DDR4 5100 MHz (OC) |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 3.0 |
| PCIe Slots | 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 |
| M.2 Slots | 1 x M.2 (PCIe 3.0/SATA) |
| SATA Ports | 4 x SATA III |

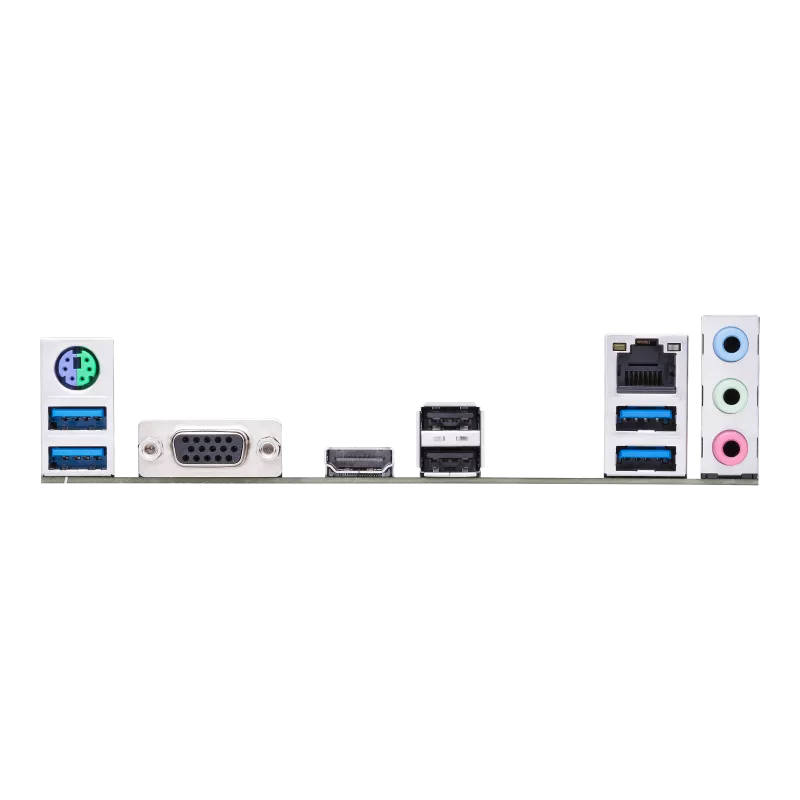

| Graphics Output | 1 x HDMI 2.1 1 x D-Sub |
| LAN | 1Gb Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek ALC887/897 7.1 HD Audio |
| USB Ports | • Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB 3.2 Gen 1 Header • Front: 2 x USB 2.0 Headers |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x USB 3.2 Gen 1 Header • 2 x USB 2.0 Headers • 2 x Fan Headers |
| Cooling Features | Aluminum Heatsink + Fan Xpert |
| RGB Support | No |
| Warranty | 10 Months Local Warranty |

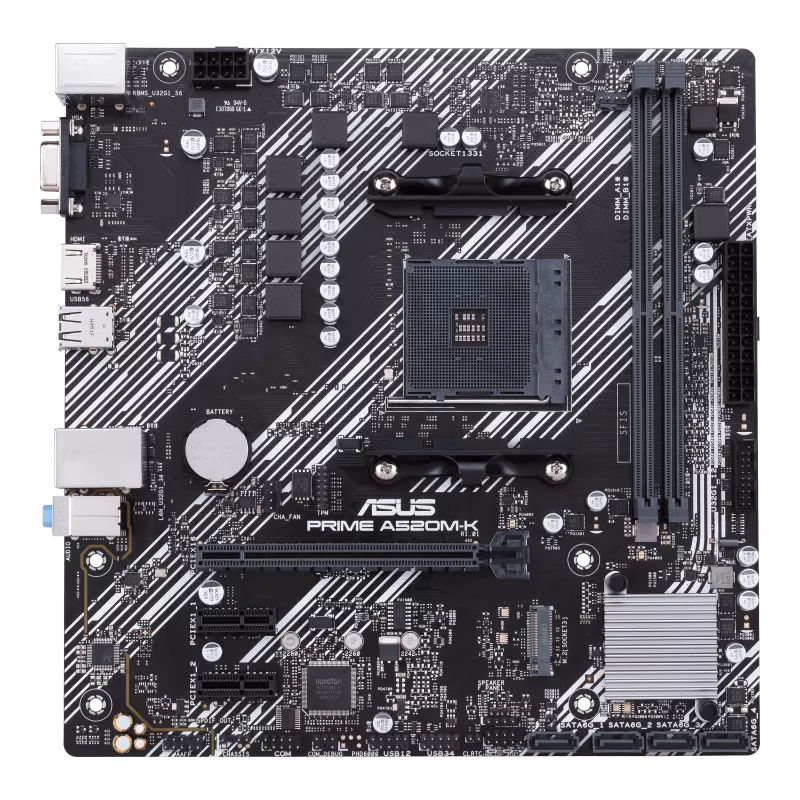

The ASUS PRIME A520M-K/CSM DDR4 AM4 Micro-ATX Motherboard is a reliable and efficient foundation for everyday computing and entry-level gaming builds. Built on the AMD A520 chipset with support for AM4 Ryzen processors, this compact Micro-ATX board delivers stable performance with ASUS’s trusted engineering and durability features.
Designed for flexibility, it supports DDR4 memory up to 64 GB with speeds reaching 5100 MHz (OC), ensuring smooth multitasking and responsiveness. The ASUS PRIME A520M-K/CSM DDR4 AM4 Micro-ATX Motherboard includes a PCIe 3.0 x16 slot for graphics cards, along with additional PCIe lanes for expansion. Storage options include 1 x M.2 slot and 4 x SATA III ports, providing ample room for SSDs and hard drives.
Connectivity is straightforward with 1Gb Ethernet LAN, multiple USB ports, and essential display outputs including HDMI and D-Sub. Equipped with ASUS 5X Protection III, basic heatsinks, and intelligent fan controls, this board ensures long-term reliability and stable operation, making it an excellent choice for cost-effective, dependable PC builds.
