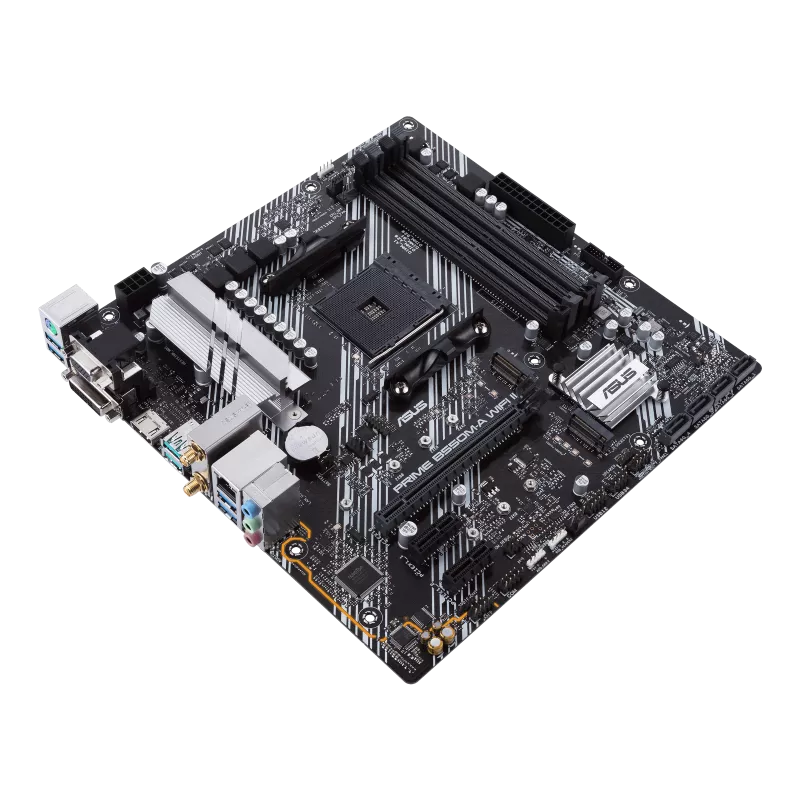

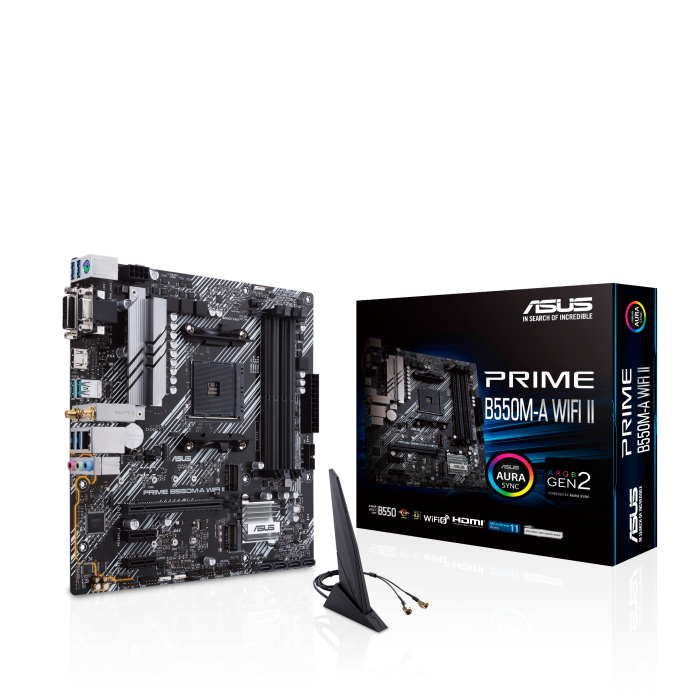

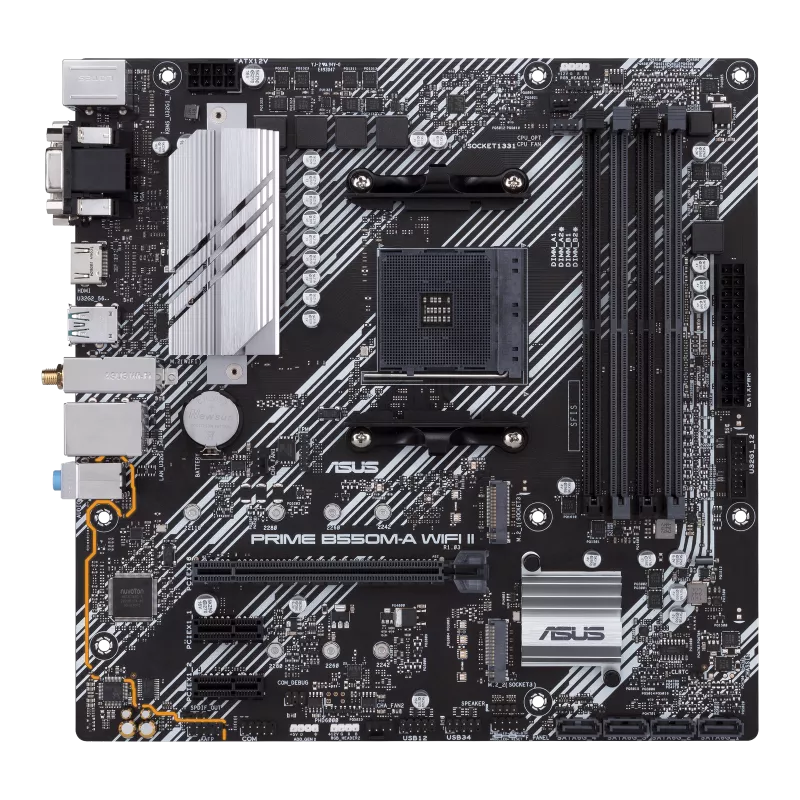

ASUS PRIME B550M-A WIFI II DDR4 AM4 Micro-ATX Motherboard

Name: ASUS PRIME B550M-A WIFI II DDR4 AM4 Micro-ATX Motherboard
Brand: ASUS
SKU: TN-10032
Price: 43499 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

43,499PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 1Gb Ethernet
Audio: Realtek ALC887 7.1 HD Audio
Brand: ASUS
Model: PRIME B550M-A WIFI II
Chipset: AMD B550
RAM Type: DDR4
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0/3.0)
RAM Speed: DDR4 4866 MHz (OC)

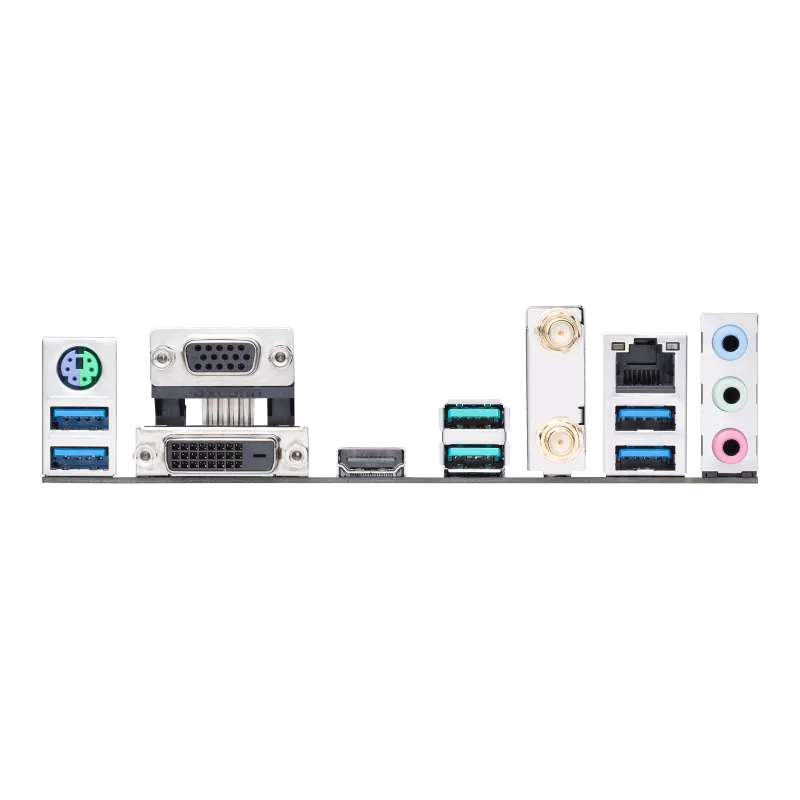

USB Ports: • Rear: 2 x USB 3.2 Gen 2 • Rear: 4 x USB 3.2 Gen 1 • Front: 1 x USB 3.2 Gen 1 Header • Front: 2 x USB 2.0 Headers
CPU Socket: AM4
PCIe Slots: 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 128 GB
Supported CPUs: AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 Processors
Graphics Output: 1 x HDMI 2.1 1 x DVI-D 1 x D-Sub
Cooling Features: VRM Heatsinks + Fan Xpert 2+
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x USB 3.2 Gen 1 Header • 2 x USB 2.0 Headers • 4 x Fan Headers
Wireless Connectivity: WiFi 6 + Bluetooth 5.2

43,499PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The ASUS PRIME B550M-A WIFI II DDR4 AM4 Micro-ATX Motherboard is a versatile and feature-rich solution designed for reliable everyday computing and mainstream gaming builds. Powered by the AMD B550 chipset and supporting AM4 Ryzen processors, it offers a solid foundation with efficient power delivery and stable performance for modern workloads.

With support for DDR4 memory up to 128 GB and speeds reaching 4866 MHz (OC), the ASUS PRIME B550M-A WIFI II DDR4 AM4 Micro-ATX Motherboard ensures smooth multitasking and responsive system performance. It features a PCIe 4.0 x16 slot for high-performance GPUs and dual M.2 slots for fast NVMe storage, along with 4 x SATA III ports for expanded storage flexibility.

Connectivity is enhanced with WiFi 6, Bluetooth 5.2, and 1Gb Ethernet, providing reliable wired and wireless networking options. Equipped with multiple USB ports, comprehensive cooling with VRM heatsinks, and Aura Sync RGB support, this motherboard delivers a balanced mix of performance, connectivity, and customization—making it an excellent choice for stable, future-ready PC builds.

Specifications

LAN

1Gb Ethernet

Audio

Realtek ALC887 7.1 HD Audio

Brand

ASUS

Model

PRIME B550M-A WIFI II

Chipset

AMD B550

RAM Type

DDR4

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0/3.0)

RAM Speed

DDR4 4866 MHz (OC)

USB Ports

• Rear: 2 x USB 3.2 Gen 2 • Rear: 4 x USB 3.2 Gen 1 • Front: 1 x USB 3.2 Gen 1 Header • Front: 2 x USB 2.0 Headers

CPU Socket

AM4

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

128 GB

Supported CPUs

AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 Processors

Graphics Output

1 x HDMI 2.1 1 x DVI-D 1 x D-Sub

Cooling Features

VRM Heatsinks + Fan Xpert 2+

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x USB 3.2 Gen 1 Header • 2 x USB 2.0 Headers • 4 x Fan Headers

Wireless Connectivity

WiFi 6 + Bluetooth 5.2
