| LAN | 1 x Realtek 2.5Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Brand | ASUS |
| Model | PRIME B760M-A WIFI D4 |
| Chipset | Intel B760 |
| RAM Type | DDR4 |
| Warranty | 10 Months Local Warranty |
| M.2 Slots | 2 x M.2 (PCIe 4.0, Key M) |
| RAM Speed | DDR4 5333+ MHz (OC) |
| USB Ports | • Rear: 2 x USB 3.2 Gen 2 Type-A • Rear: 4 x USB 2.0 Type-A • Front: 2 x USB 3.2 Gen 1 Headers • Front: 1 x USB 3.2 Gen 1 Type-C Header • Front: 2 x USB 2.0 Headers |
| CPU Socket | LGA1700 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 4.0 x16 (supports x1 mode) |
| SATA Ports | 4 x SATA III |
| Form Factor | Micro-ATX |
| RGB Support | Yes – Aura Sync |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 4.0 |
| RAM Capacity | 128 GB |
| Supported CPUs | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron Processors |
| Graphics Output | 1 x DisplayPort (4K@60Hz) 2 x HDMI (4K@60Hz) |
| Cooling Features | VRM Heatsinks + M.2 Heatsink |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x CPU Fan + 1 x CPU OPT Fan Header • 2 x Chassis Fan Headers • 3 x Addressable Gen 2 Headers • 1 x Aura RGB Header • 1 x SPI TPM Header (14-1pin) • 1 x 20-3 pin System Panel Header • 1 x Clear CMOS Header • 1 x COM Port Header • 1 x Front Panel Audio Header (AAFP) • 1 x S/PDIF Out Header |
| Wireless Connectivity | WiFi 6 + Bluetooth 5.2 |

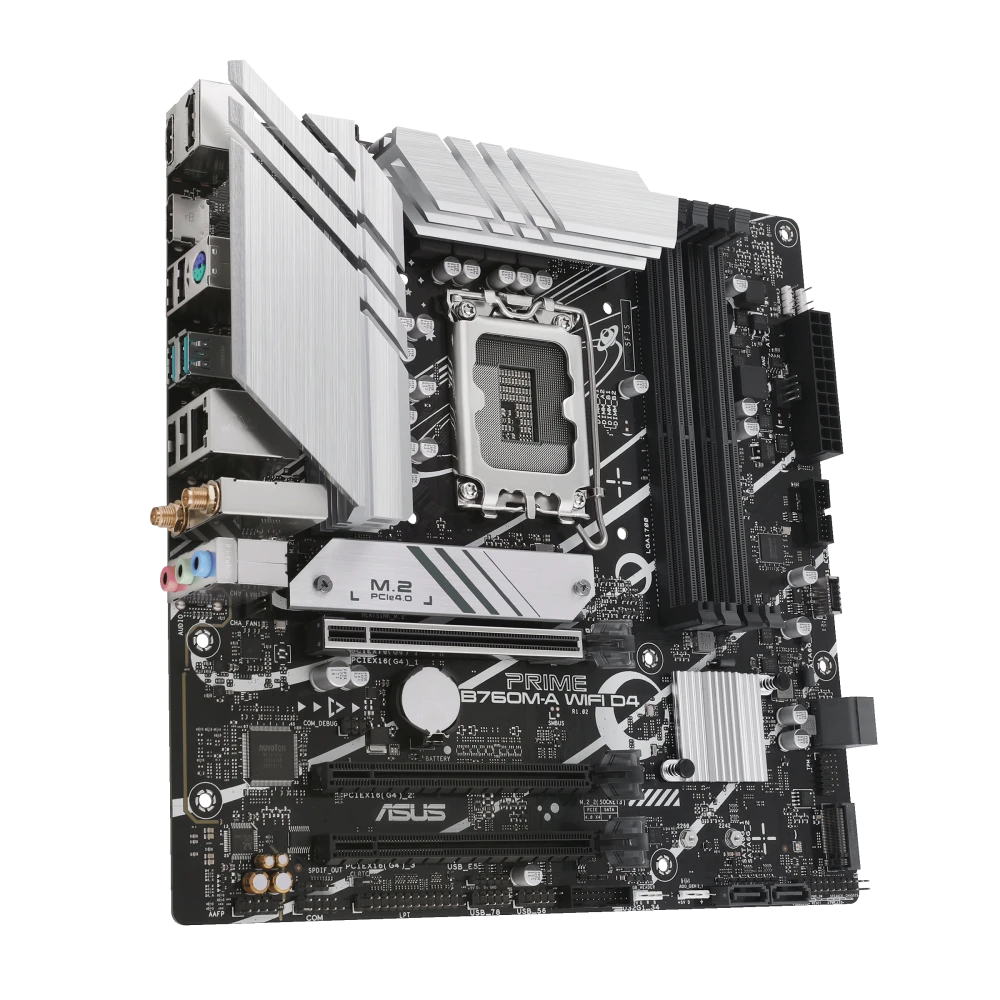

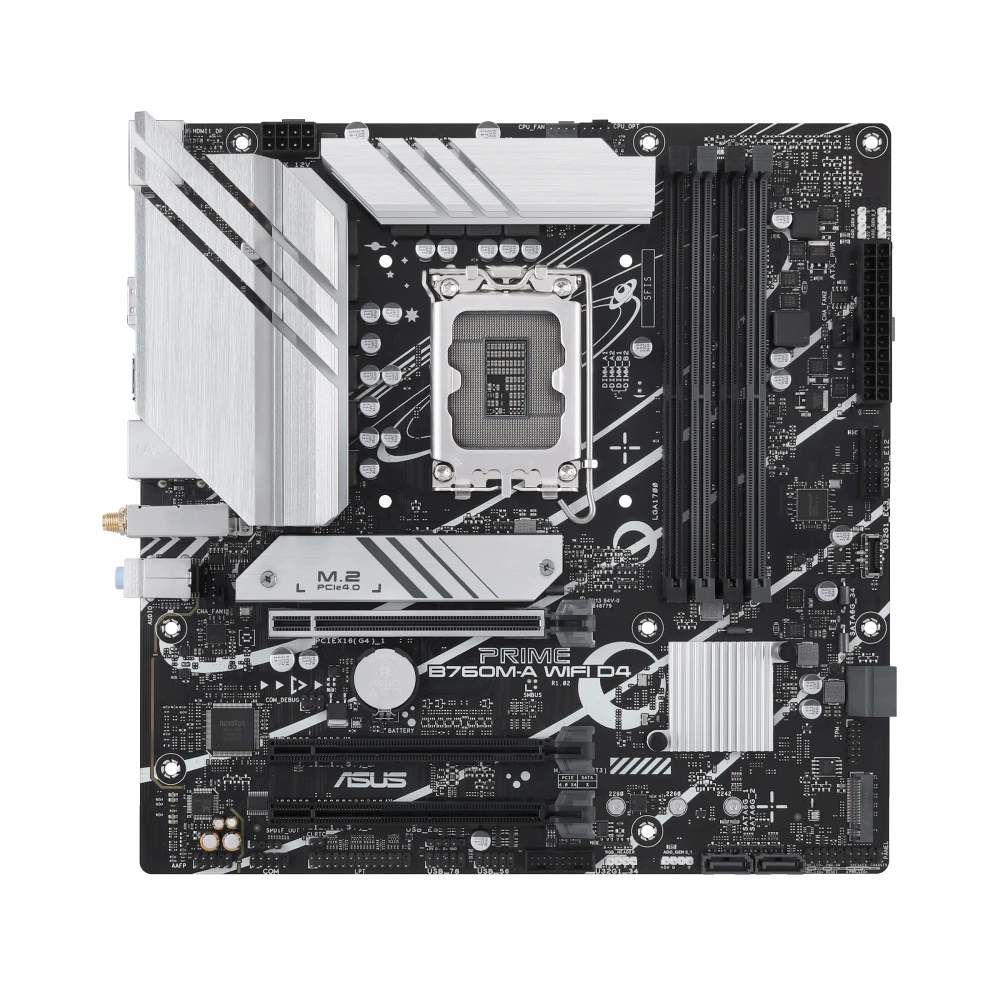

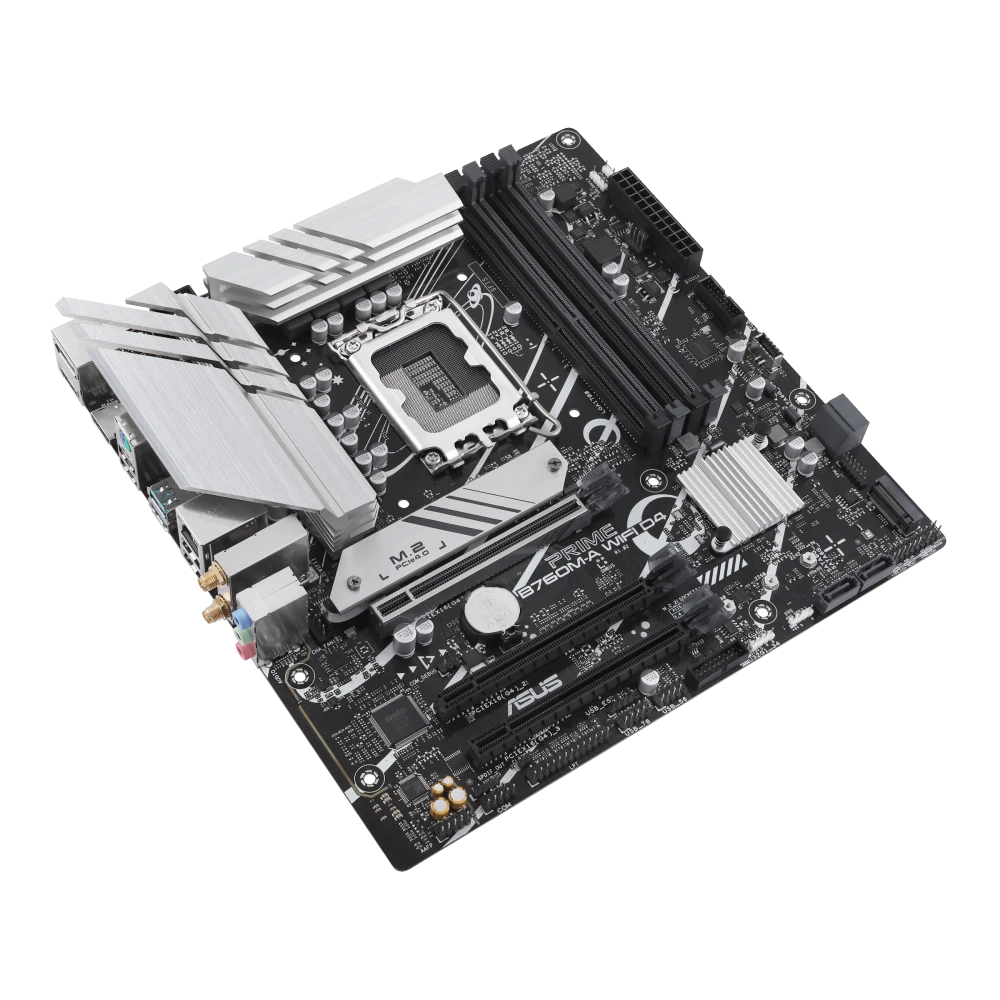

The ASUS PRIME B760M-A WIFI D4 DDR4 LGA1700 Micro-ATX Motherboard brings dependable everyday performance to budget and mid-range Intel builds. Built around the Intel B760 chipset and LGA1700 socket, it supports Intel Core 14th, 13th and 12th Gen processors along with Pentium Gold and Celeron chips, giving builders in Pakistan a flexible upgrade path on a Micro-ATX motherboard.
Four DIMM slots support up to 128GB of DDR4 memory with speeds up to DDR4 5333(OC) in dual channel mode, while two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports cover fast NVMe storage and traditional drives. Expansion comes from a PCIe 4.0 x16 slot plus two additional x16-length slots, giving room for a discrete graphics card and add-in cards alike.

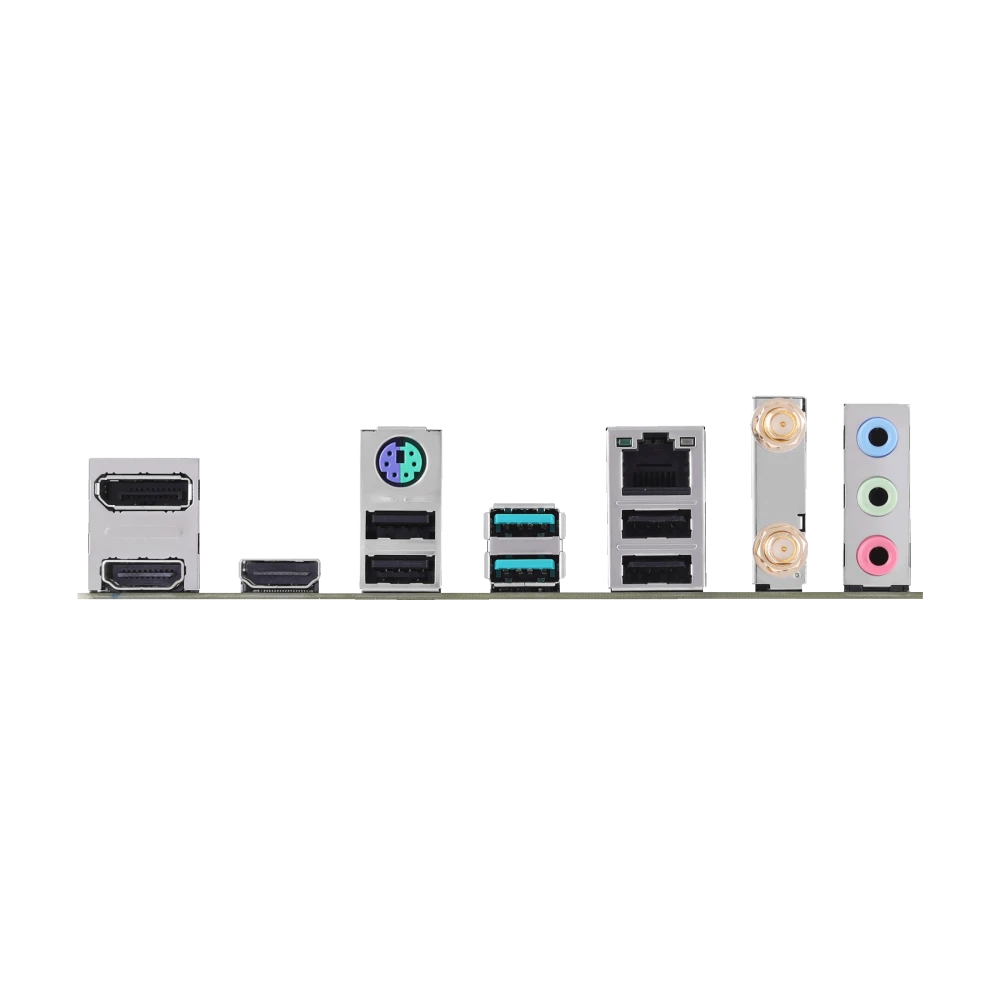

Connectivity is a standout at this price point, with built-in WiFi 6 and Bluetooth 5.2 alongside a Realtek 2.5Gb Ethernet port for stable wired networking. The rear I/O includes DisplayPort and dual HDMI outputs, USB 3.2 Gen 2 Type-A ports, and Realtek 7.1 surround sound audio, while VRM and M.2 heatsinks keep temperatures in check under sustained loads. Addressable Gen 2 and Aura RGB headers tie into ASUS Aura Sync for simple lighting control.
With solid power delivery, modern connectivity and ASUS 5X Protection III hardware safeguards, this motherboard is a dependable foundation for stable, future-ready Intel builds.
ASUS PRIME B760M-A WIFI D4 Micro-ATX Motherboard: Intel B760 chipset, LGA1700 socket, DDR4 memory, WiFi 6, 2.5Gb LAN. Best Price in Pakistan at TechNod.
