| Brand | ASUS |
| Model | PRIME B760M-K D4 |
| Chipset | Intel B760 |
| CPU Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Supported CPUs | Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron Processors |
| RAM Type | DDR4 |
| RAM Capacity | 64 GB |
| RAM Speed | DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 |
| M.2 Slots | 2 x M.2 (PCIe 4.0 x4) |
| SATA Ports | 4 x SATA III |

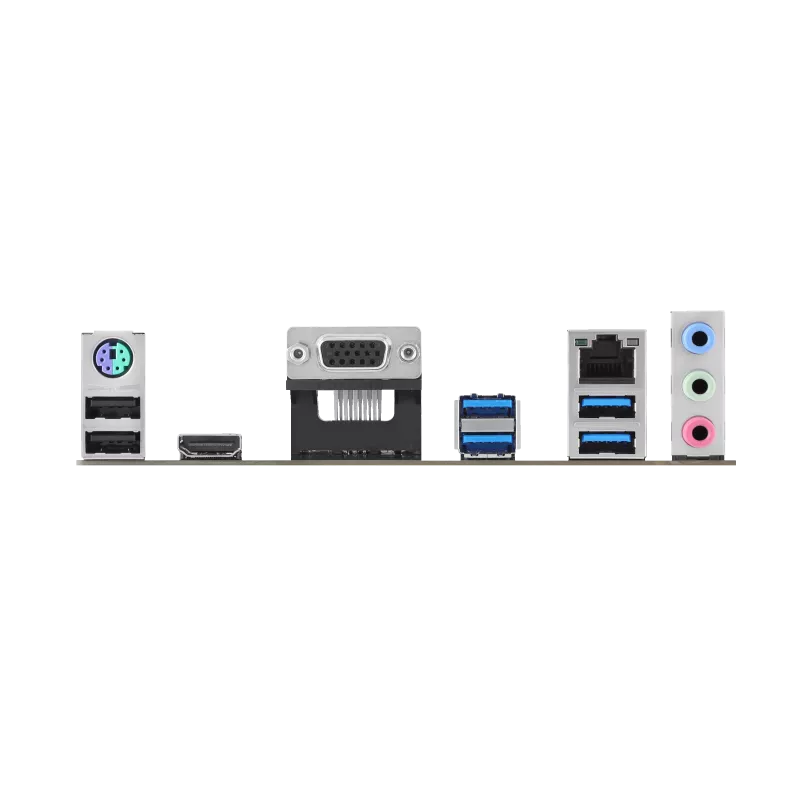

| Graphics Output | 1 x VGA 1 x HDMI |
| LAN | 2.5Gb Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek 7.1 HD Audio |
| USB Ports | • Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB 3.2 Gen 1 Header • Front: 2 x USB 2.0 Headers |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin +12V Power • 1 x USB 3.2 Gen 1 Header • 2 x USB 2.0 Headers • 1 x 4-pin CPU Fan Header • 1 x 4-pin Chassis Fan Header • 2 x Addressable Gen 2 RGB Headers • 1 x Aura RGB Header • 1 x Clear CMOS Header • 1 x Front Panel Audio Header • 1 x COM Port Header • 1 x S/PDIF Out Header • 1 x Speaker Header • 1 x SPI TPM Header • 1 x 10-1 pin System Panel Header |
| Cooling Features | VRM Heatsink + Fan Headers |
| RGB Support | Yes – Aura Sync |
| Warranty | 10 Months Local Warranty |
The ASUS PRIME B760M-K D4 DDR4 LGA1700 Micro-ATX Motherboard is engineered to deliver reliable performance for Intel 12th, 13th, and 14th Gen Core processors, as well as Pentium Gold and Celeron CPUs. Featuring the Intel B760 chipset and LGA1700 socket, it supports Intel Turbo Boost Technology 2.0 and Max Technology 3.0, ensuring smooth multitasking, efficient power delivery, and stable computing for home, office, or entry-level gaming setups. With ASUS 5X Protection III, your system enjoys DIGI+ VRM, LANGuard, overvoltage protection, and reinforced SafeSlot Core for long-lasting durability.
Memory support includes dual-channel DDR4 up to 64GB at 5333 MHz (OC), giving you the speed and capacity needed for modern applications. Storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports, while expansion is handled by a PCIe 4.0 x16 and 2 x PCIe 4.0 x1 slots. Networking comes via 2.5Gb Ethernet, and Realtek 7.1 HD Audio ensures immersive sound for media and communication.
For enthusiasts, the PRIME B760M-K D4 offers Aura Sync RGB headers, dual Gen 2 addressable headers, multiple fan headers, and ASUS Q-Design features like Q-DIMM and Q-Slot. This makes it an excellent choice for stylish, future-ready Micro-ATX builds with high reliability and expandability.
