ASUS PRIME B760M-K DDR5 LGA1700 Micro-ATX Motherboard

Name: ASUS PRIME B760M-K DDR5 LGA1700 Micro-ATX Motherboard
Brand: ASUS
SKU: TN-10009
Price: 29200 PKR
Availability: InStock

Manufacturer's page

1 / 3

29,200PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek 7.1 HD Audio
Brand: ASUS
Model: PRIME B760M-K
Chipset: Intel B760
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0 x4)
RAM Speed: DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz

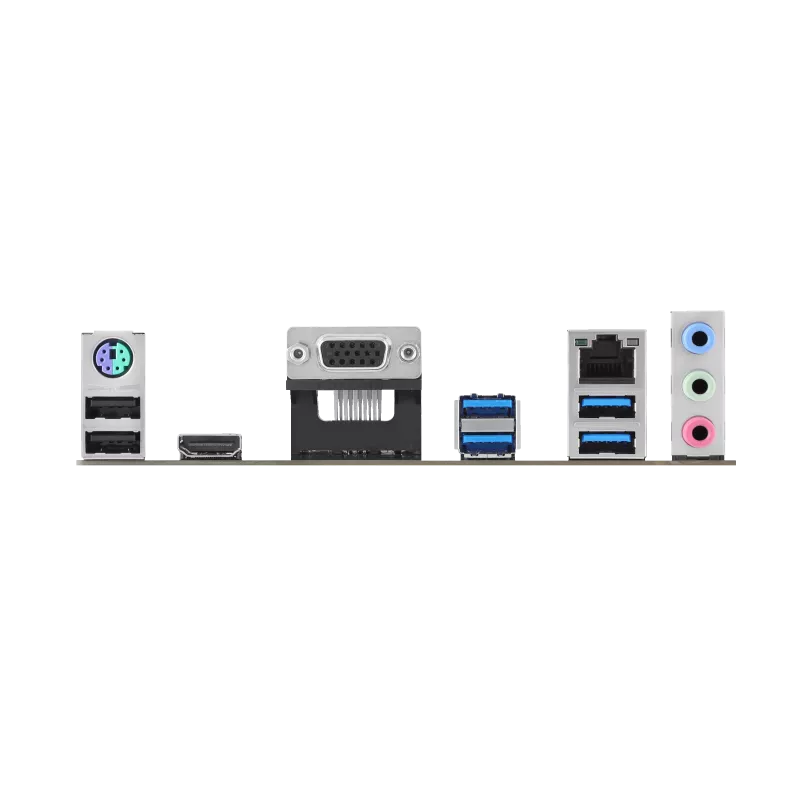

USB Ports: • Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB 3.2 Gen 1 Header • Front: 2 x USB 2.0 Headers
CPU Socket: LGA1700
PCIe Slots: 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – Aura Sync
Memory Slots: 2 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 96 GB
Supported CPUs: Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron Processors
Graphics Output: 1 x VGA 1 x HDMI
Cooling Features: VRM Heatsink + Fan Headers
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin +12V Power • 1 x USB 3.2 Gen 1 Header • 2 x USB 2.0 Headers • 1 x 4-pin CPU Fan Header • 2 x 4-pin Chassis Fan Headers • 2 x Addressable Gen 2 RGB Headers • 1 x Aura RGB Header • 1 x Clear CMOS Header • 1 x Front Panel Audio Header • 1 x COM Port Header • 1 x S/PDIF Out Header • 1 x Speaker Header • 1 x SPI TPM Header • 1 x 10-1 pin System Panel Header

29,200PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The ASUS PRIME B760M-K DDR5 LGA1700 Micro-ATX Motherboard is designed for high-performance computing with Intel 12th, 13th, and 14th Gen Core processors, as well as Pentium Gold and Celeron CPUs. Powered by the Intel B760 chipset, it supports Intel Turbo Boost Technology 2.0 and Max Technology 3.0, delivering stable performance and efficient power management.

This motherboard supports dual-channel DDR5 memory up to 96GB at speeds up to 8000 MHz (OC), ensuring exceptional responsiveness for multitasking and modern workloads. Storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports, while expansion is facilitated via a PCIe 4.0 x16 slot and 2 x PCIe 4.0 x1 slots. Networking is handled through 2.5Gb Ethernet, and Realtek 7.1 HD Audio provides rich, immersive sound.

With Aura Sync RGB headers, dual Gen 2 addressable headers, and multiple fan headers, the PRIME B760M-K DDR5 offers customization and cooling options for enthusiasts. ASUS 5X Protection III and Q-Design features like Q-DIMM, Q-LED Core, and Q-Slot enhance durability, ease of installation, and system reliability.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek 7.1 HD Audio

Brand

ASUS

Model

PRIME B760M-K

Chipset

Intel B760

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0 x4)

RAM Speed

DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz

USB Ports

• Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB 3.2 Gen 1 Header • Front: 2 x USB 2.0 Headers

CPU Socket

LGA1700

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 4.0 x1

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – Aura Sync

Memory Slots

2 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

96 GB

Supported CPUs

Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron Processors

Graphics Output

1 x VGA 1 x HDMI

Cooling Features

VRM Heatsink + Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin +12V Power • 1 x USB 3.2 Gen 1 Header • 2 x USB 2.0 Headers • 1 x 4-pin CPU Fan Header • 2 x 4-pin Chassis Fan Headers • 2 x Addressable Gen 2 RGB Headers • 1 x Aura RGB Header • 1 x Clear CMOS Header • 1 x Front Panel Audio Header • 1 x COM Port Header • 1 x S/PDIF Out Header • 1 x Speaker Header • 1 x SPI TPM Header • 1 x 10-1 pin System Panel Header
