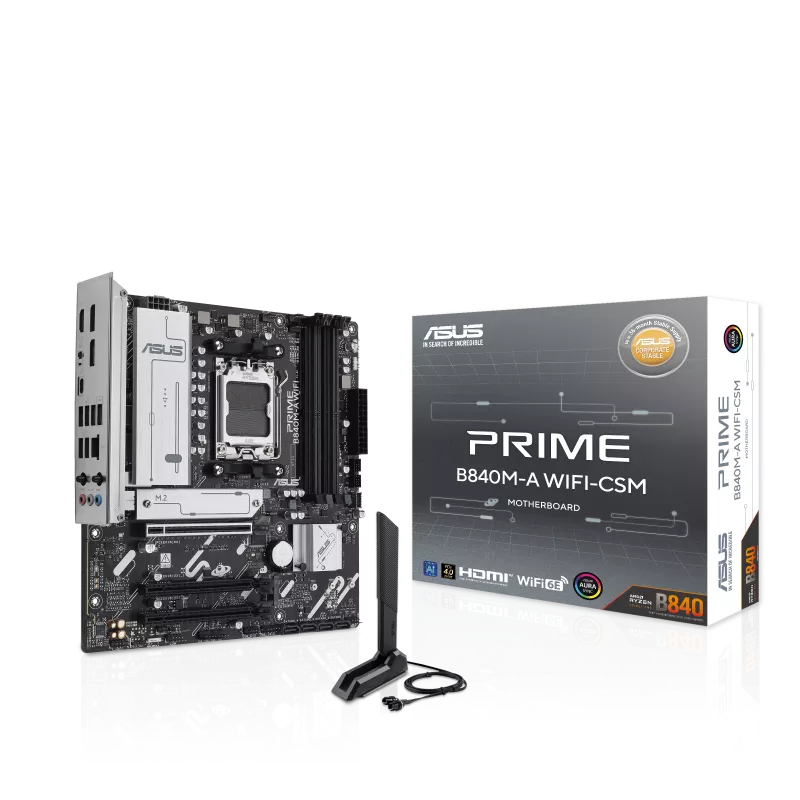

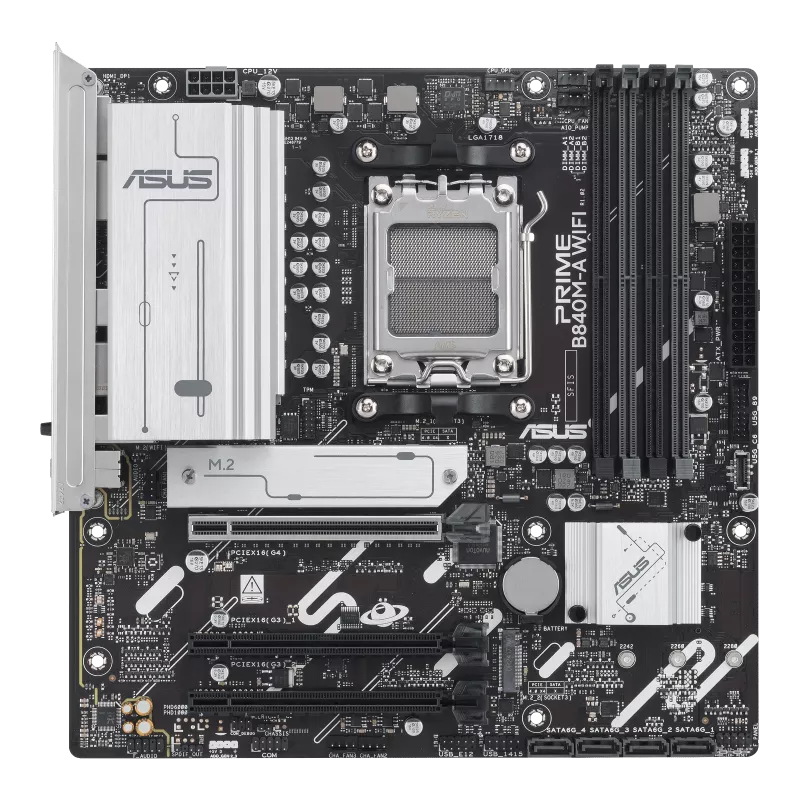

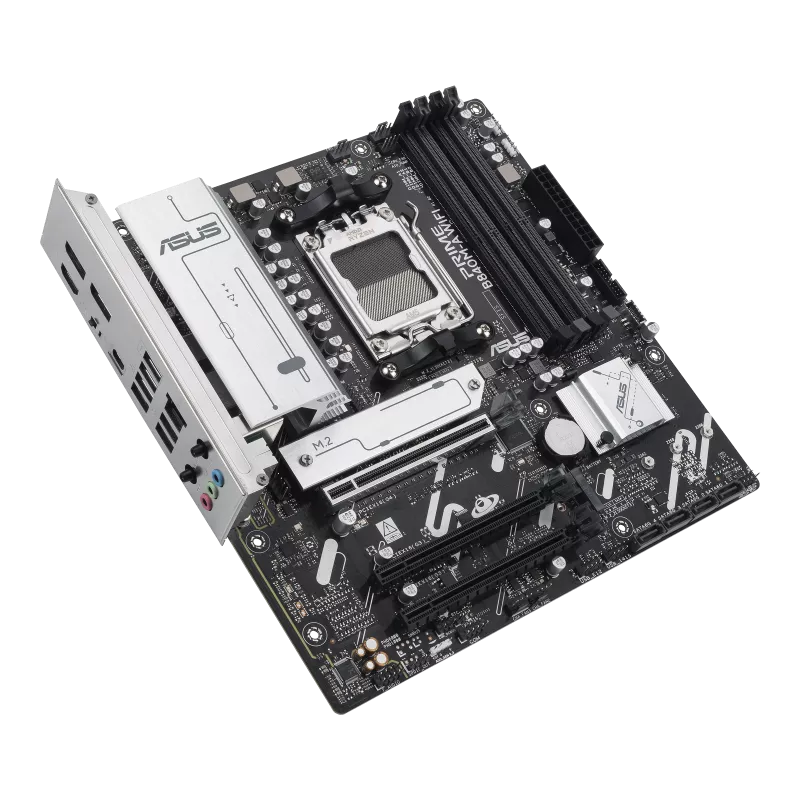

ASUS PRIME B840M-A WIFI-CSM DDR5 AM5 Micro-ATX Motherboard

Name: ASUS PRIME B840M-A WIFI-CSM DDR5 AM5 Micro-ATX Motherboard
Brand: ASUS
SKU: TN-10036
Price: 54999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

54,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek 7.1 HD Audio
Brand: ASUS
Model: PRIME B840M-A WIFI-CSM
Chipset: AMD B840
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 3 x M.2 (PCIe 4.0/3.0)
RAM Speed: DDR5 7600+ MT/s (OC)

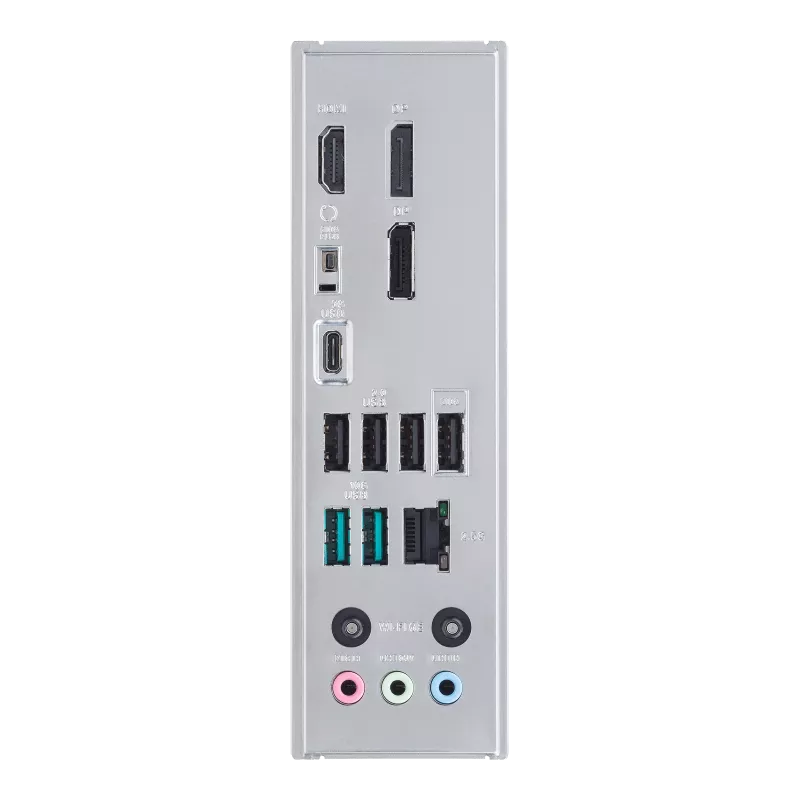

USB Ports: • Rear: 2 x USB 10Gbps Type-A • Rear: 1 x USB 5Gbps Type-C • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 5Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers
CPU Socket: AM5
PCIe Slots: 1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 (x1 mode)
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
Graphics Output: 2 x DisplayPort 1.4 1 x HDMI 2.1
Cooling Features: VRM Heatsinks + M.2 Heatsink + 5 Fan Headers
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 3 x M.2 slots • 4 x SATA III • 3 x Addressable Gen 2 headers • 1 x Clear CMOS header • 1 x COM Port header • 1 x Front Panel Audio header (F_AUDIO) • 1 x S/PDIF Out header • 1 x SPI TPM header • 1 x 10-1 pin Front Panel header
Wireless Connectivity: WiFi 6E + Bluetooth 5.3

54,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The ASUS PRIME B840M-A WIFI-CSM DDR5 AM5 Micro-ATX Motherboard is designed for enterprise, business, and professional applications, combining the latest AMD B840 chipset with support for Ryzen 9000, 8000, and 7000 Series processors. It offers robust performance, reliability, and enhanced manageability features, making it ideal for IT-managed desktops and workstations.

This motherboard supports DDR5 memory up to 256 GB with speeds up to 7600+ MT/s (OC), supporting both ECC and non-ECC un-buffered DIMMs. It features three M.2 slots including PCIe 4.0 support, multiple PCIe slots for expansion, and comprehensive connectivity with WiFi 6E, Bluetooth 5.3, and 2.5Gb Ethernet. Enterprise-oriented features like ASUS Control Center Express (ACCE) for remote IT management, and ASUS 5X Protection III, ensure stability, durability, and secure deployment in business environments.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek 7.1 HD Audio

Brand

ASUS

Model

PRIME B840M-A WIFI-CSM

Chipset

AMD B840

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

3 x M.2 (PCIe 4.0/3.0)

RAM Speed

DDR5 7600+ MT/s (OC)

USB Ports

• Rear: 2 x USB 10Gbps Type-A • Rear: 1 x USB 5Gbps Type-C • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 5Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers

CPU Socket

AM5

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 (x1 mode)

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000 / 8000 / 7000 Series Processors

Graphics Output

2 x DisplayPort 1.4 1 x HDMI 2.1

Cooling Features

VRM Heatsinks + M.2 Heatsink + 5 Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 3 x M.2 slots • 4 x SATA III • 3 x Addressable Gen 2 headers • 1 x Clear CMOS header • 1 x COM Port header • 1 x Front Panel Audio header (F_AUDIO) • 1 x S/PDIF Out header • 1 x SPI TPM header • 1 x 10-1 pin Front Panel header

Wireless Connectivity

WiFi 6E + Bluetooth 5.3
