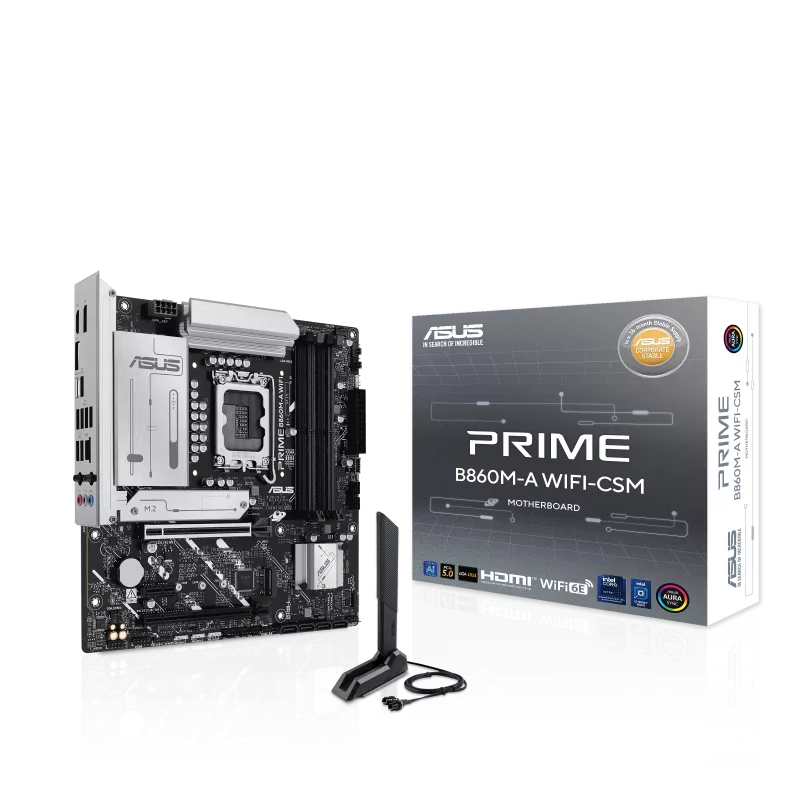

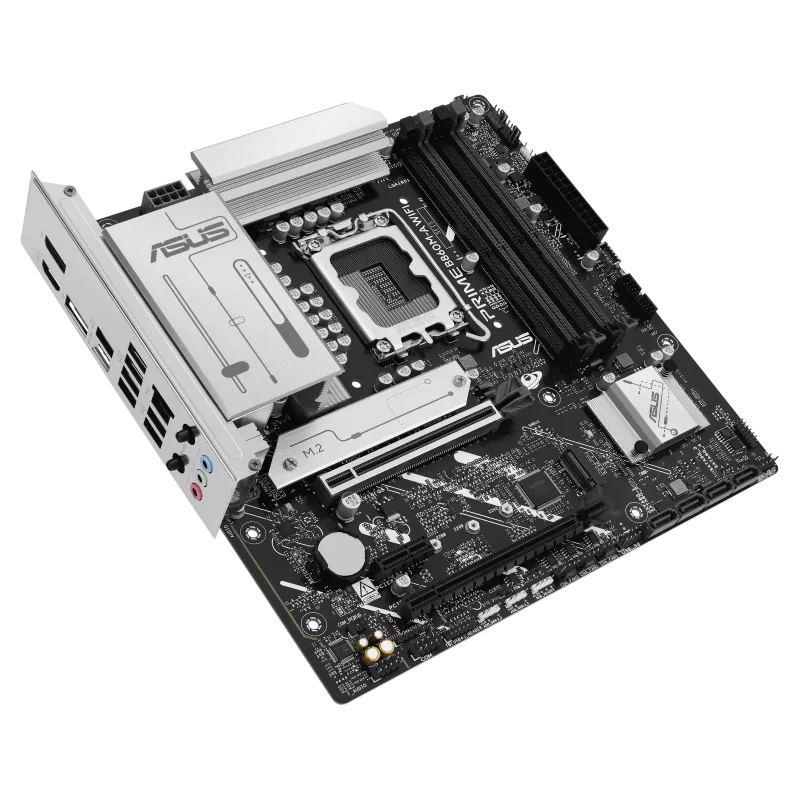

ASUS PRIME B860M-A WIFI-CSM DDR5 LGA1851 Micro-ATX Motherboard

Name: ASUS PRIME B860M-A WIFI-CSM DDR5 LGA1851 Micro-ATX Motherboard
Brand: ASUS
SKU: TN-10014
Price: 50600 PKR
Availability: InStock

Manufacturer's page

1 / 4

50,600PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: Realtek 2.5Gb Ethernet with ASUS LANGuard
Audio: Realtek 7.1 HD Audio with Audio Shielding, Premium Audio Capacitors, Dedicated PCB Layers
Brand: ASUS
Model: PRIME B860M-A WIFI-CSM
Chipset: Intel B860
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (M.2_1 PCIe 5.0 x4 / M.2_2 PCIe 4.0 x4)
RAM Speed: Up to 8666+ MT/s (OC)
USB Ports: • Rear: 1 x USB 20Gbps Type-C • Rear: 1 x USB 10Gbps Type-A • Rear: 2 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 10Gbps Type-C • Front: 1 x USB 5Gbps Header (supports 2 additional USB 5Gbps ports) • Front: 1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)
CPU Socket: LGA1851
PCIe Slots: 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (@x4) 1 x PCIe 4.0 x1
SATA Ports: 4 x SATA III 6Gb/s
Form Factor: Micro-ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0 / 4.0
RAM Capacity: Up to 256 GB
Supported CPUs: Intel Core Ultra Series 2 Processors

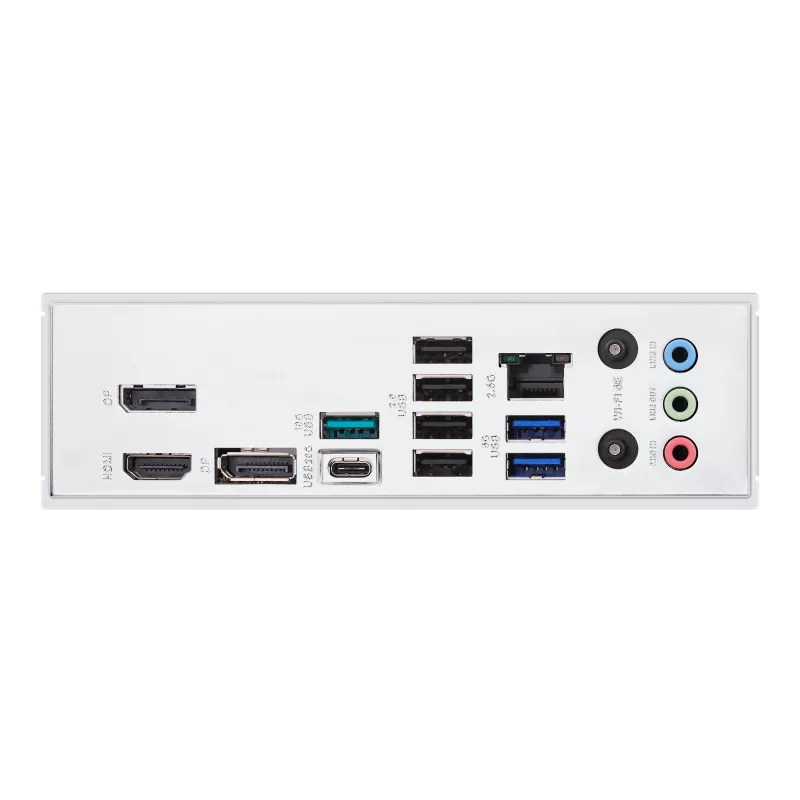

Graphics Output: 2 x DisplayPort 1 x HDMI 1 x USB Type-C (20Gbps, DP Alt Mode)
Cooling Features: VRM and M.2 Heatsinks; Multiple Fan Headers; Fan Xpert 2+
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin +12V CPU Power • 1 x CPU Fan Header • 1 x CPU OPT Fan Header • 1 x AIO Pump Header • 3 x Chassis Fan Headers • 3 x Addressable Gen2 RGB Headers • 1 x Aura RGB Header • 1 x Clear CMOS Header • 1 x Chassis Intrusion Header • 1 x COM Port Header • 1 x Front Panel Audio Header • 1 x S/PDIF Out Header • 1 x SPI TPM Header (14-1pin) • 1 x 10-1 pin Front System Panel Header • 1 x Thunderbolt™ (USB4) Header
Wireless Connectivity: Wi-Fi 6E 2x2, Bluetooth v5.3

50,600PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The ASUS PRIME B860M-A WIFI-CSM DDR5 LGA1851 Micro-ATX Motherboard is engineered for Intel Core Ultra Series 2 processors, delivering powerful performance and advanced connectivity for modern AI-ready PCs and high-demand workloads. Featuring the Intel B860 chipset, it supports DDR5 memory up to 256GB (8666+ MT/s OC) and includes dual M.2 slots with PCIe 5.0/4.0 support, SATA 6Gb/s ports, and Realtek 2.5Gb Ethernet with ASUS LANGuard for reliable networking.

Connectivity options include Wi-Fi 6E (2x2, 2.4/5/6GHz), Bluetooth v5.3, USB 20Gbps Type-C with DP Alt Mode, USB 10Gbps Type-A, and multiple USB 5Gbps/2.0 ports. Expansion is handled through PCIe 5.0 x16 and PCIe 4.0 x16/x1 slots, offering flexibility for modern GPUs and add-on cards.

Cooling and customization are supported via VRM and M.2 heatsinks, multiple fan headers, Aura Sync RGB header, and three Addressable Gen2 headers. Audio is powered by Realtek 7.1 HD Audio with shielding, dedicated PCB layers, and premium capacitors for clear, immersive sound.

Specifications

LAN

Realtek 2.5Gb Ethernet with ASUS LANGuard

Audio

Realtek 7.1 HD Audio with Audio Shielding, Premium Audio Capacitors, Dedicated PCB Layers

Brand

ASUS

Model

PRIME B860M-A WIFI-CSM

Chipset

Intel B860

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (M.2_1 PCIe 5.0 x4 / M.2_2 PCIe 4.0 x4)

RAM Speed

Up to 8666+ MT/s (OC)

USB Ports

• Rear: 1 x USB 20Gbps Type-C • Rear: 1 x USB 10Gbps Type-A • Rear: 2 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 10Gbps Type-C • Front: 1 x USB 5Gbps Header (supports 2 additional USB 5Gbps ports) • Front: 1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)

CPU Socket

LGA1851

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (@x4) 1 x PCIe 4.0 x1

SATA Ports

4 x SATA III 6Gb/s

Form Factor

Micro-ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0

RAM Capacity

Up to 256 GB

Supported CPUs

Intel Core Ultra Series 2 Processors

Graphics Output

2 x DisplayPort 1 x HDMI 1 x USB Type-C (20Gbps, DP Alt Mode)

Cooling Features

VRM and M.2 Heatsinks; Multiple Fan Headers; Fan Xpert 2+

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin +12V CPU Power • 1 x CPU Fan Header • 1 x CPU OPT Fan Header • 1 x AIO Pump Header • 3 x Chassis Fan Headers • 3 x Addressable Gen2 RGB Headers • 1 x Aura RGB Header • 1 x Clear CMOS Header • 1 x Chassis Intrusion Header • 1 x COM Port Header • 1 x Front Panel Audio Header • 1 x S/PDIF Out Header • 1 x SPI TPM Header (14-1pin) • 1 x 10-1 pin Front System Panel Header • 1 x Thunderbolt™ (USB4) Header

Wireless Connectivity

Wi-Fi 6E 2x2, Bluetooth v5.3
