Price Notice: Prices are not final. Kindly confirm price and stock before ordering.
| Brand | ASUS |
| Model | PRIME H510M-F |
| Chipset | Intel H510 |
| CPU Socket | LGA1200 |
| Form Factor | Micro-ATX |
| Supported CPUs | Intel 11th Gen Core / 10th Gen Core, Pentium Gold, Celeron Processors |
| RAM Type | DDR4 |
| RAM Capacity | 64 GB |
| RAM Speed | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0/3.0 x16 1 x PCIe 3.0 x1 |
| M.2 Slots | N/A |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x D-Sub |
| LAN | 1Gb Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek ALC887/897 7.1 HD Audio |

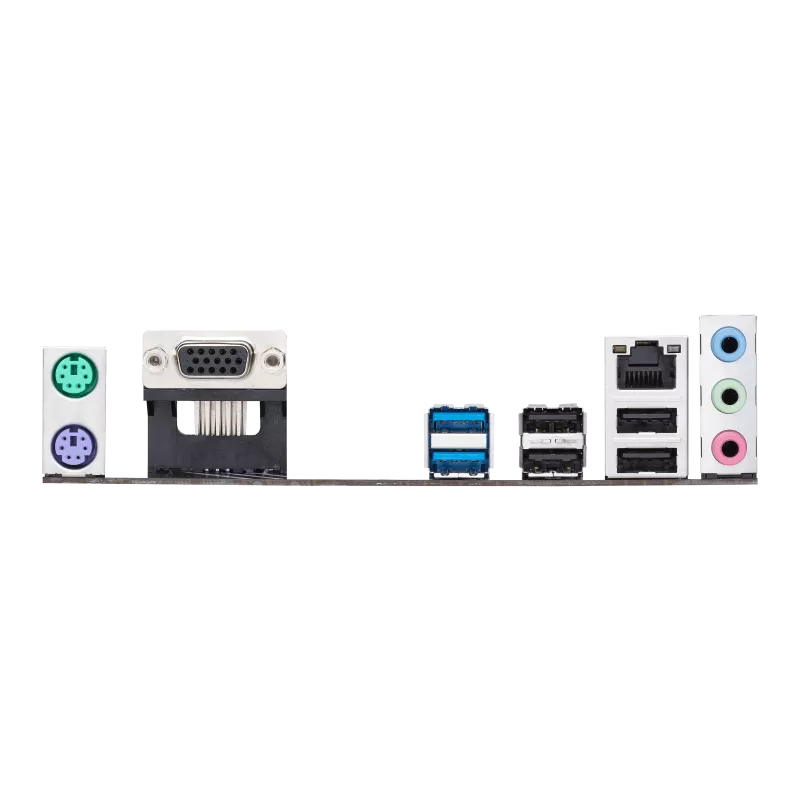

| USB Ports | • Rear: 2 x USB 3.2 Gen 1 • Rear: 4 x USB 2.0 • Front: 1 x USB 3.2 Gen 1 Header • Front: 1 x USB 2.0 Header |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 4-pin +12V Power • 1 x USB 3.2 Gen 1 Header • 1 x USB 2.0 Header • 1 x 4-pin CPU Fan Header • 1 x 4-pin Chassis Fan Header • 1 x Clear CMOS Header • 1 x Front Panel Audio Header • 1 x Speaker Header • 1 x 10-1 pin System Panel Header |
| Cooling Features | Aluminum Heatsink + Fan Headers |
| RGB Support | No |
| Warranty | 10 Months Local Warranty |

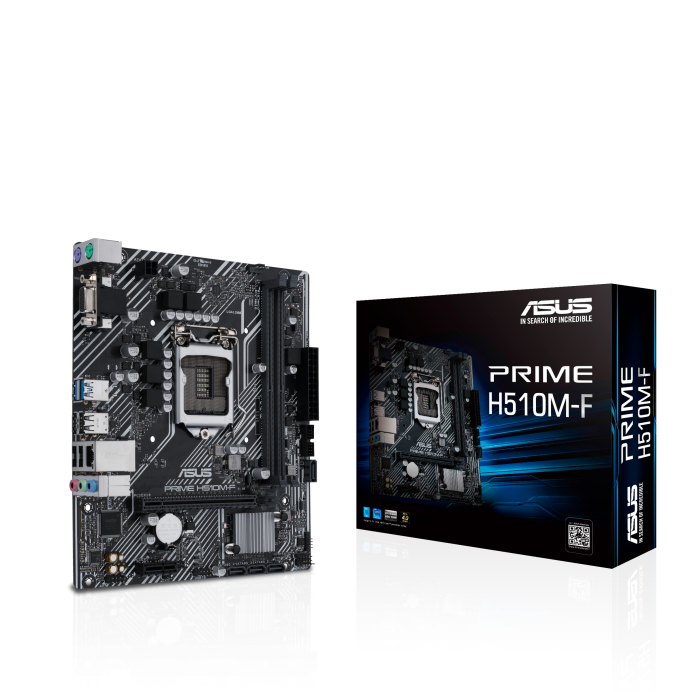

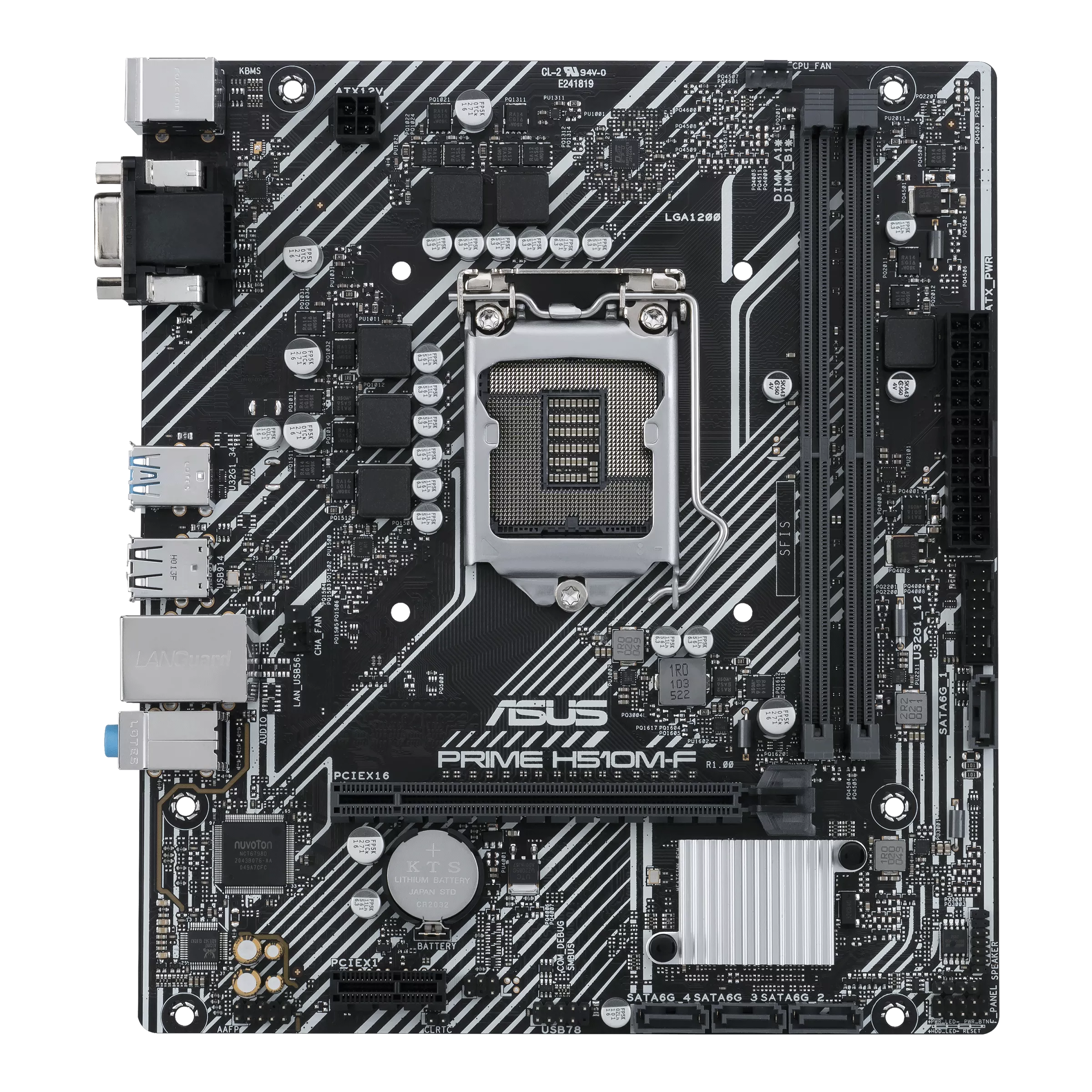

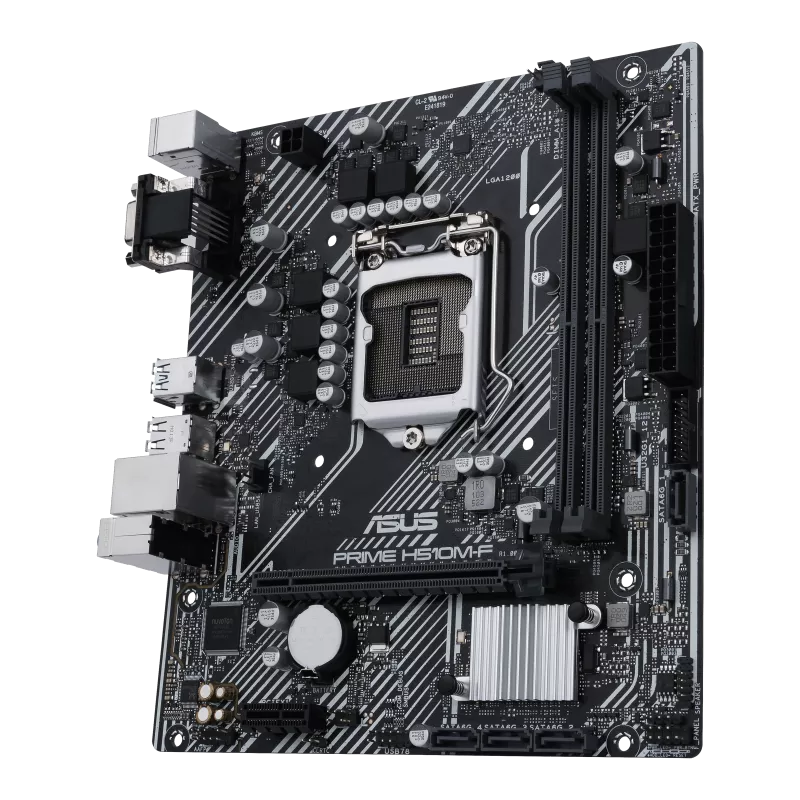

The ASUS PRIME H510M-F is a compact Micro-ATX motherboard designed for Intel’s 10th and 11th Gen Core processors, delivering a reliable foundation for productivity and everyday computing. Featuring the Intel H510 chipset and LGA1200 socket, this board supports CPUs up to 65W with native compatibility for Intel Turbo Boost Technology 2.0 and Max Technology 3.0, ensuring smooth performance under varied workloads. Its robust power design and DIGI+ VRM system offer stability for consistent operations.
Equipped with dual-channel DDR4 memory support up to 64GB at 3200(OC) MHz, the PRIME H510M-F balances speed and efficiency. The motherboard offers PCIe 4.0/3.0 and PCIe 3.0 expansion slots, multiple SATA 6Gb/s ports, and a versatile array of USB 3.2 and USB 2.0 ports. Networking is handled via 1Gb Ethernet, while audio enthusiasts benefit from Realtek ALC887/897 7.1 HD Audio with dedicated shielding for crystal-clear sound.
With thoughtful ASUS innovations like 5X Protection III, Q-Design features, and a straightforward cooling layout including fan headers and aluminum heatsinks, the ASUS PRIME H510M-F is an ideal Micro-ATX motherboard for stable, future-ready PC builds.
