| LAN | 1 x Intel I219-V 1Gb Ethernet |
| Audio | Realtek ALC897 7.1 HD Audio |
| Brand | ASUS |
| Model | PRIME H510M-K D4 |
| Chipset | Intel H510 |
| RAM Type | DDR4 |
| Warranty | 10 Months Local Warranty |
| M.2 Slots | 1 x M.2 (PCIe 3.0 x4 / SATA) |
| RAM Speed | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz |
| USB Ports | • Rear: 2 x USB 3.2 Gen 1 Type-A • Rear: 4 x USB 2.0 Type-A • Front: 2 x USB 3.2 Gen 1 (header) • Front: 2 x USB 2.0 (header) |
| CPU Socket | LGA1200 |
| PCIe Slots | 1 x PCIe 4.0/3.0 x16 1 x PCIe 3.0 x1 |
| SATA Ports | 4 x SATA III |
| Form Factor | Micro-ATX |
| RGB Support | Yes – RGB Header |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| RAM Capacity | 64 GB |
| Supported CPUs | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Graphics Output | 1 x HDMI 1 x D-Sub (VGA) |
| Cooling Features | Aluminum VRM Heatsink |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x USB 3.2 Gen 1 Header • 1 x USB 2.0 Header • 1 x RGB Header • 1 x CPU Fan Header • 1 x Chassis Fan Header |
| Wireless Connectivity | N/A |

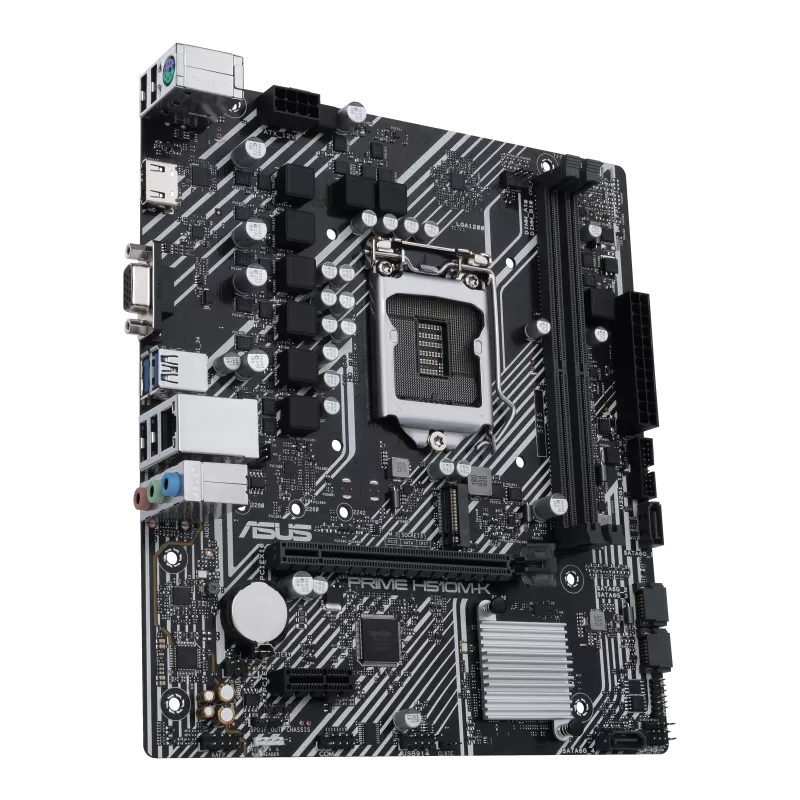

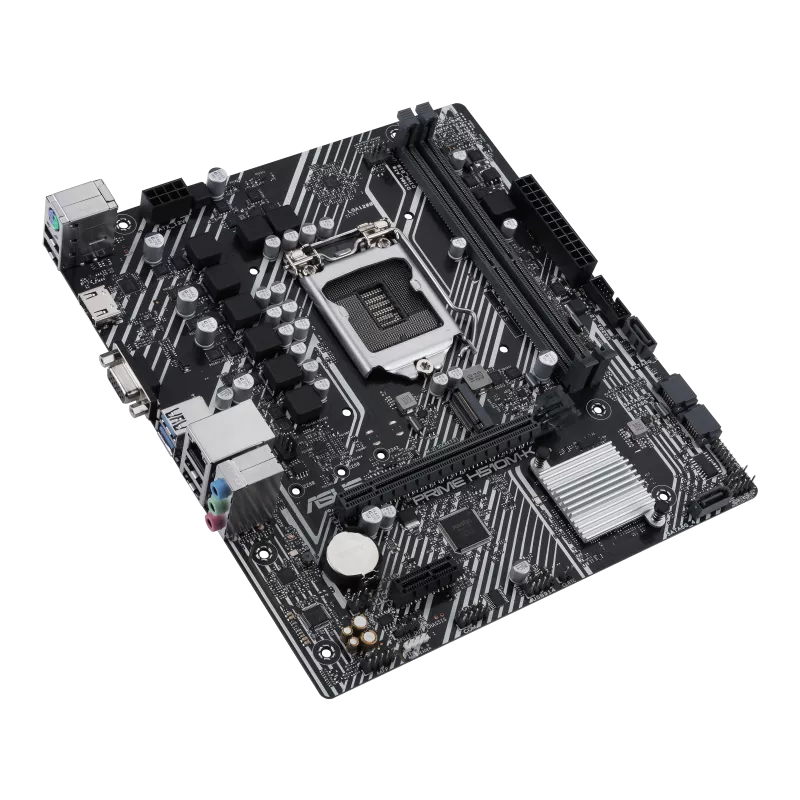

The ASUS PRIME H510M-K D4 is a Micro-ATX motherboard built on the Intel H510 chipset for LGA1200 socket processors, supporting 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs. It pairs two DDR4 memory slots in dual-channel mode with speeds up to DDR4 3200MHz (OC) and a maximum capacity of 64GB, giving everyday builds in Pakistan enough headroom for office work, study, and light gaming.
Expansion comes from a single PCIe 4.0 x16 slot alongside a PCIe 3.0 x1 slot, while storage is handled by one M.2 slot and 4 x SATA 6Gb/s ports for a mix of SSDs and hard drives. Display output runs through HDMI and D-Sub ports, and the onboard Realtek ALC897 7.1 audio codec keeps everyday sound quality solid for this class of motherboard.

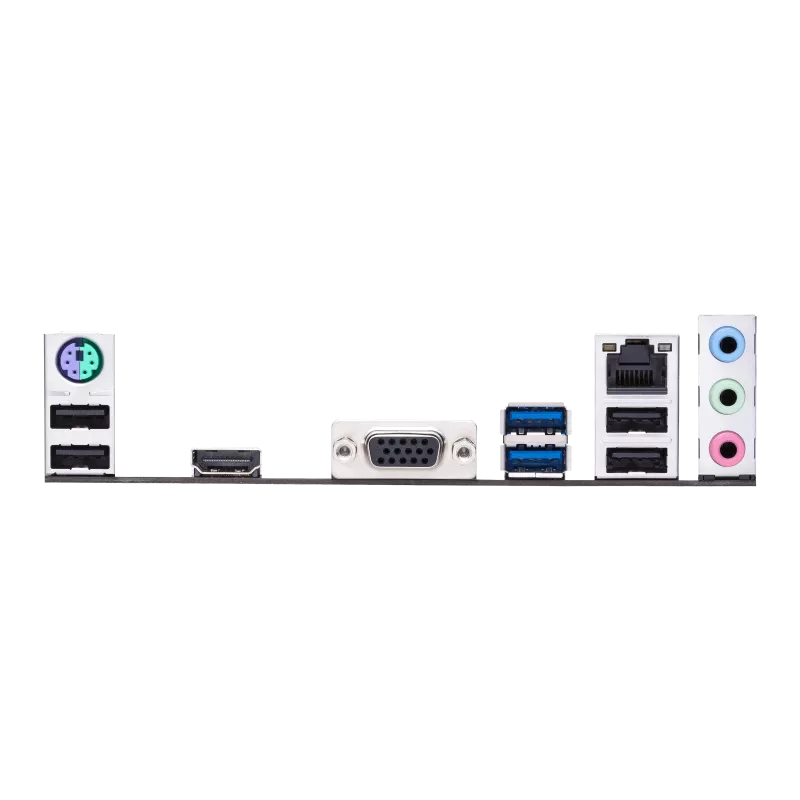

Networking runs on an Intel I219-V Gigabit LAN port, and rear connectivity includes USB 3.2 Gen 1 and USB 2.0 Type-A ports, backed by a PS/2 combo port for older peripherals. ASUS 5X Protection III adds DIGI+ VRM control, overvoltage protection and a stainless-steel back I/O shield, while an onboard RGB header and aluminum heatsink round out the design.
With dependable power delivery, dual storage options and straightforward BIOS tuning through Armoury Crate, the PRIME H510M-K D4 suits stable, long-term desktop motherboard builds that do not need DDR5 or PCIe 5.0 overhead.
ASUS PRIME H510M-K D4 Micro-ATX motherboard: LGA1200 socket, DDR4 3200MHz memory, PCIe 4.0 slot, 4 SATA 6Gb/s ports. Best Price in Pakistan at TechNod.
