ASUS ProArt X870E-CREATOR WIFI DDR5 AM5 ATX Motherboard

Name: ASUS ProArt X870E-CREATOR WIFI DDR5 AM5 ATX Motherboard
Brand: ASUS
SKU: TN-10224
Price: 187999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

187,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 1 x Marvell 10Gb Ethernet 1 x Intel 2.5Gb Ethernet
Audio: Realtek ALC1220P 7.1 Surround Sound HD Audio
Brand: ASUS
Model: ProArt X870E-CREATOR WIFI
Chipset: AMD X870E
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 4 x M.2 (PCIe 5.0/4.0)
RAM Speed: DDR5 8000+ MT/s (OC)

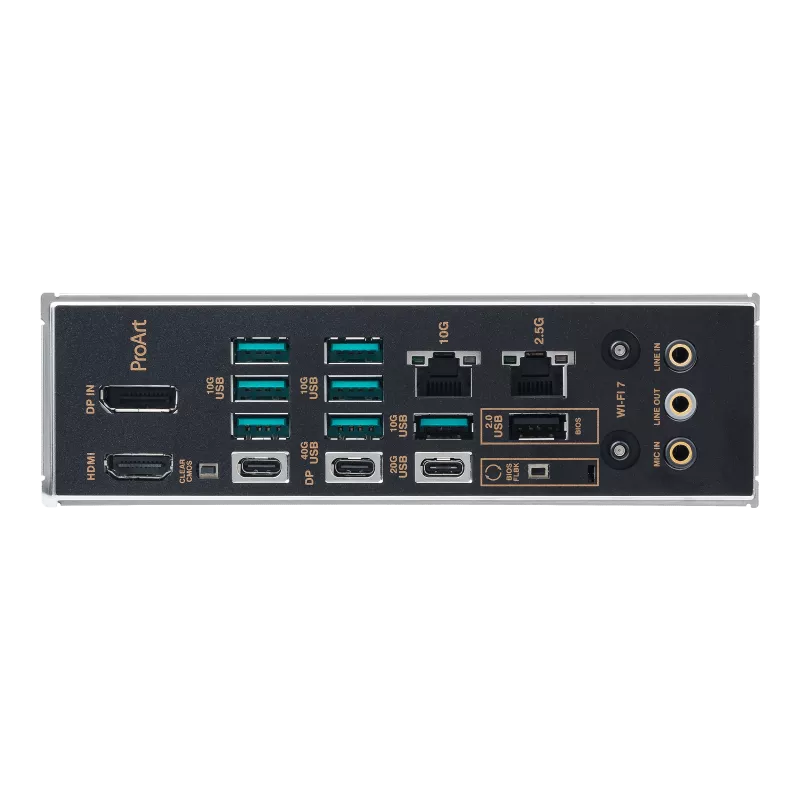

USB Ports: • Rear: 2 x USB4 (40Gbps) • Rear: 1 x USB 20Gbps (Type-C) • Rear: 7 x USB 10Gbps • Rear: 1 x USB 2.0 • Front: 1 x USB 20Gbps (Type-C with 30W PD)
CPU Socket: AM5
PCIe Slots: 2 x PCIe 5.0 x16 (supports x16 or x8/x8) 1 x PCIe 4.0 x16 (supports x4 mode)
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors
Graphics Output: 1 x HDMI 2.1 2 x USB4 (DisplayPort 1.4)
Cooling Features: VRM Heatsinks + M.2 Heatsinks + M.2 Backplate
Internal Headers: • 1 x 24-pin Main Power • 2 x 8-pin +12V Power • 1 x USB 20Gbps Header • 1 x USB 5Gbps Header • 3 x USB 2.0 Headers • 8 x Fan/Pump Headers • 1 x COM Port Header
Wireless Connectivity: WiFi 7 + Bluetooth 5.4

187,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The ASUS ProArt X870E-CREATOR WIFI DDR5 AM5 ATX Motherboard is a sophisticated platform tailored for creative professionals working with AMD Ryzen 9000, 8000, and 7000 series processors. This motherboard is built to handle intensive rendering and multitasking with a robust power solution featuring DIGI+ VRM and DrMOS power stages. It supports ultra fast DDR5 8000+ MT/s (OC) memory, providing the high bandwidth necessary for high resolution video editing and 3D modeling. Dual PCIe 5.0 x16 slots allow for powerful multi GPU setups or high speed storage expansion, ensuring creators have the hardware overhead required for complex projects.

Securing the ASUS ProArt X870E-CREATOR WIFI DDR5 AM5 ATX Motherboard in Pakistan provides access to an elite networking suite, including a Marvell AQtion 10Gb Ethernet port for rapid local file transfers and WiFi 7 for superior wireless performance. The rear panel features two USB4 40Gbps ports that support 8K display output, while the front panel header offers USB 20Gbps with 30W PD fast charging. Storage is expansive with four M.2 slots, including two PCIe 5.0 x4 sockets for top tier NVMe speeds. Finished with a clean, professional aesthetic and specialized software like ProArt Creator Hub, this motherboard is the ultimate choice for stability and productivity.

ASUS ProArt X870E-CREATOR WIFI AM5 Motherboard: DDR5 8000+ MHz, Dual USB4, WiFi 7, 10Gb & 2.5Gb LAN, and PCIe 5.0. Best Price in Pakistan at TechNod.

Specifications

LAN

1 x Marvell 10Gb Ethernet 1 x Intel 2.5Gb Ethernet

Audio

Realtek ALC1220P 7.1 Surround Sound HD Audio

Brand

ASUS

Model

ProArt X870E-CREATOR WIFI

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (PCIe 5.0/4.0)

RAM Speed

DDR5 8000+ MT/s (OC)

USB Ports

• Rear: 2 x USB4 (40Gbps) • Rear: 1 x USB 20Gbps (Type-C) • Rear: 7 x USB 10Gbps • Rear: 1 x USB 2.0 • Front: 1 x USB 20Gbps (Type-C with 30W PD)

CPU Socket

AM5

PCIe Slots

2 x PCIe 5.0 x16 (supports x16 or x8/x8) 1 x PCIe 4.0 x16 (supports x4 mode)

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors

Graphics Output

1 x HDMI 2.1 2 x USB4 (DisplayPort 1.4)

Cooling Features

VRM Heatsinks + M.2 Heatsinks + M.2 Backplate

Internal Headers

• 1 x 24-pin Main Power • 2 x 8-pin +12V Power • 1 x USB 20Gbps Header • 1 x USB 5Gbps Header • 3 x USB 2.0 Headers • 8 x Fan/Pump Headers • 1 x COM Port Header

Wireless Connectivity

WiFi 7 + Bluetooth 5.4

About this product

ASUS ProArt X870E-CREATOR WIFI AM5 Motherboard: DDR5 8000+ MHz, Dual USB4, WiFi 7, 10Gb & 2.5Gb LAN, and PCIe 5.0. Best Price in Pakistan at TechNod.
