| LAN | 1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet |
| Audio | ROG SupremeFX ALC4082 7.1 Surround Sound HD Audio with ESS ES9219 Quad DAC |
| Brand | ASUS |
| Model | ROG CROSSHAIR X870E DARK HERO |
| Chipset | AMD X870E |
| RAM Type | DDR5 |
| Warranty | 10 Months Local Warranty |
| M.2 Slots | 1 x M.2 22110 (PCIe 5.0 x4) 1 x M.2 2280 (PCIe 5.0 x4) 2 x M.2 2280 (PCIe 4.0 x4) 1 x M.2 2230 (PCIe 4.0 x2) 1 x SlimSAS Connector (PCIe 4.0 x4) |
| RAM Speed | DDR5 9600+ MT/s (OC) |
| USB Ports | • Rear: 2 x USB4 (40Gbps) • Rear: 3 x USB 10Gbps (Type-C) • Rear: 6 x USB 10Gbps (Type-A) • Front: 1 x USB 20Gbps (Type-C with 60W PD) • Front: 1 x USB 20Gbps (Type-C) • Front: 2 x USB 5Gbps Headers |
| CPU Socket | AM5 |
| PCIe Slots | 2 x PCIe 5.0 x16 (SafeSlot with Q-Release) |
| SATA Ports | 4 x SATA III |
| Form Factor | ATX |
| RGB Support | Yes – Aura Sync |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 5.0 |
| RAM Capacity | 256 GB |
| Supported CPUs | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Graphics Output | 1 x HDMI |
| Cooling Features | 3D VC M.2 Heatsink + VRM Heatsinks with Heatpipe + M.2 Backplate |
| Internal Headers | • 1 x 24-pin Main Power • 2 x 8-pin +12V Power (ProCool II) • 3 x Addressable Gen 2 RGB Headers • Multiple 4-pin PWM Fan Headers • AIO Q-Connector |
| Wireless Connectivity | WiFi 7 + Bluetooth 5.4 |

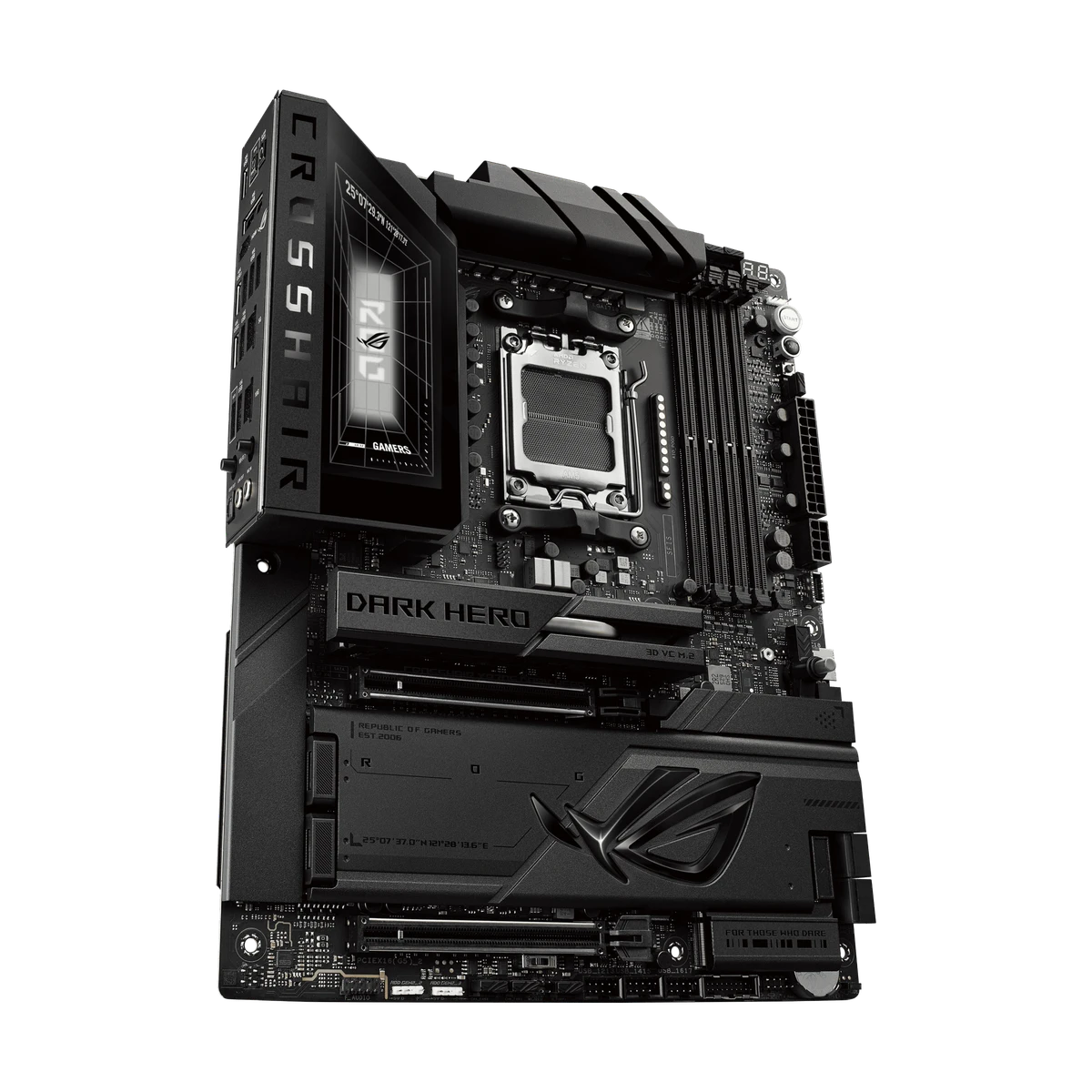

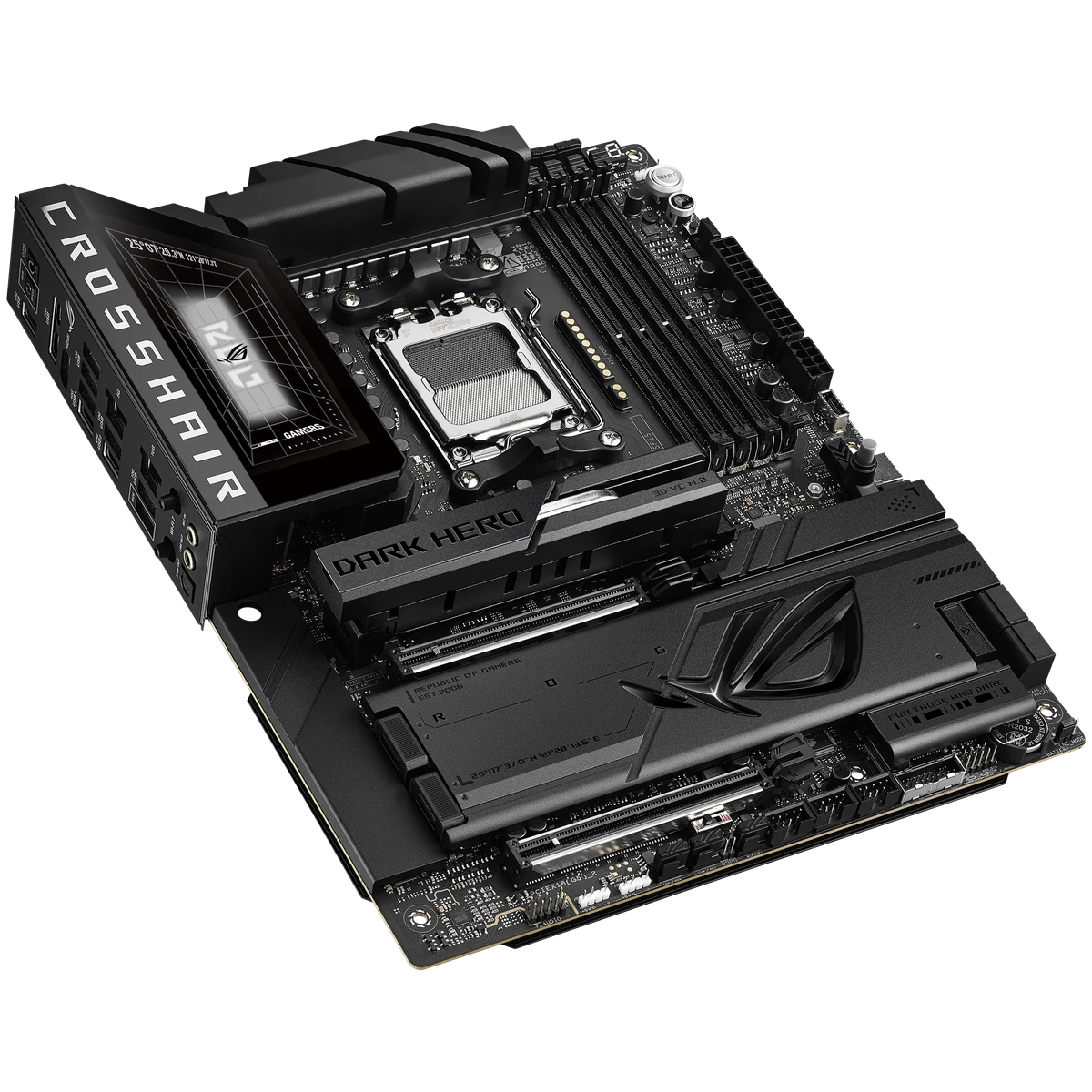

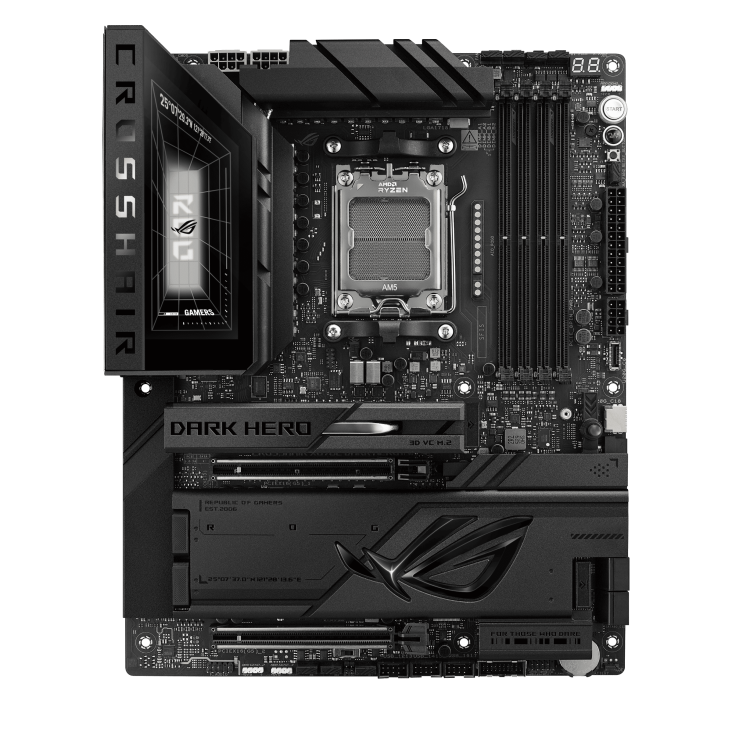

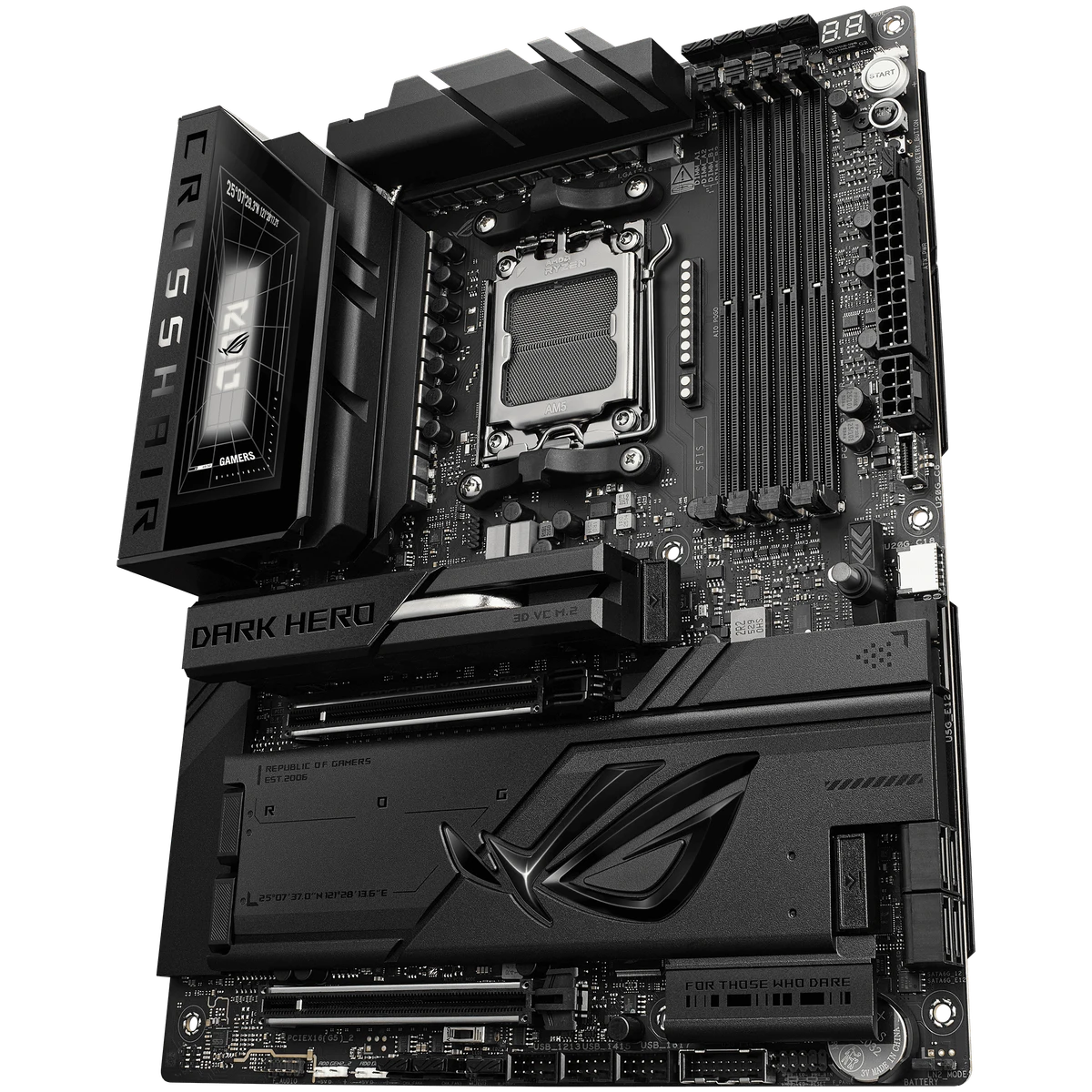

The ASUS ROG CROSSHAIR X870E DARK HERO is a flagship AM5 gaming motherboard built on the AMD X870E chipset for AMD Ryzen 9000, 8000, and 7000 Series desktop processors. It pairs a 20+2+2 power stage VRM design with dual ProCool II 8-pin connectors to deliver stable power under heavy overclocking loads, while 4 x DIMM slots support DDR5 memory up to 256GB at speeds of 9600+ MT/s (OC) thanks to NitroPath DRAM technology.
Storage is handled by five M.2 slots including dual PCIe 5.0 x4 M.2 sockets with a 3D VC heatsink, plus 4 x SATA III ports, and the board routes two PCIe 5.0 x16 SafeSlots for the latest GPUs. Networking covers a 10Gb Realtek LAN, a 5Gb Realtek LAN, and WiFi 7 with Bluetooth 5.4, backed by ROG SupremeFX ALC4082 audio with an ESS Quad DAC for studio-grade sound on every build.

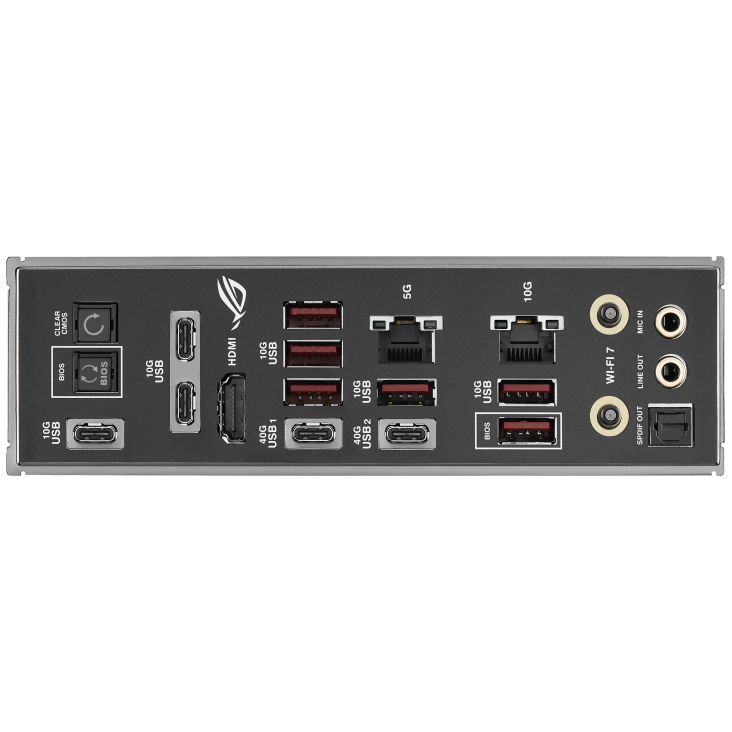

Rear I/O includes USB4 40Gbps ports, multiple USB 10Gbps connections, and a BIOS FlashBack button, all wrapped in Polymo Lighting II and Aura Sync RGB. For builders in Pakistan assembling a high-end AM5 gaming motherboard rig, the CROSSHAIR X870E DARK HERO delivers the connectivity, thermal headroom, and overclocking stability needed for a future-ready flagship desktop.
ASUS ROG CROSSHAIR X870E DARK HERO DDR5 AM5 ATX Motherboard: X870E chipset, DDR5 9600+ MT/s, WiFi 7, 5x M.2, dual 10G/5G LAN. Best Price in Pakistan at TechNod.
