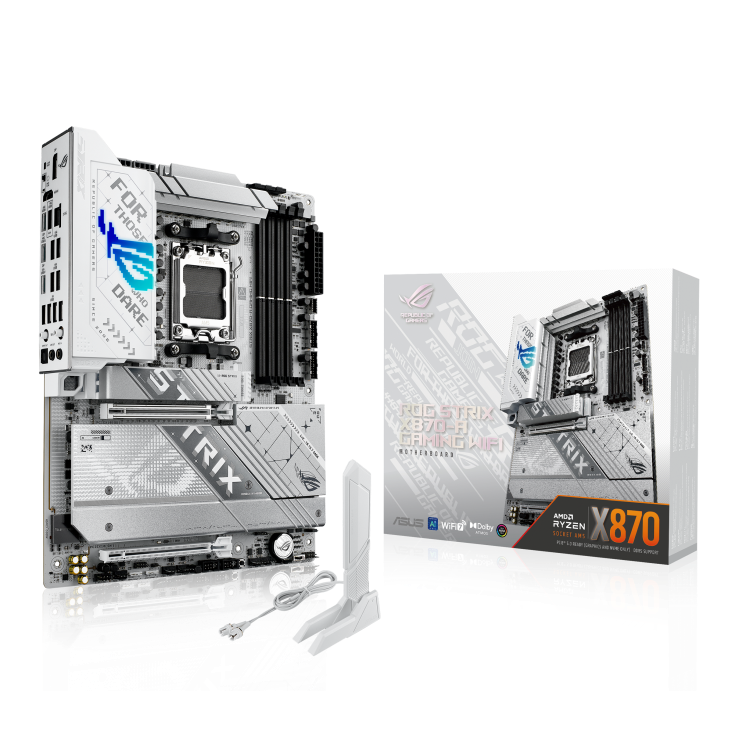

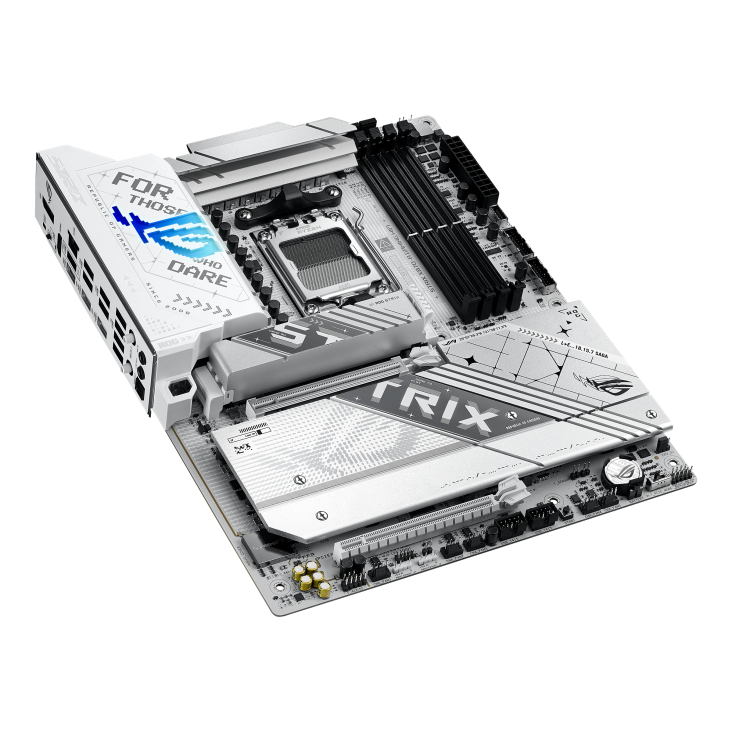

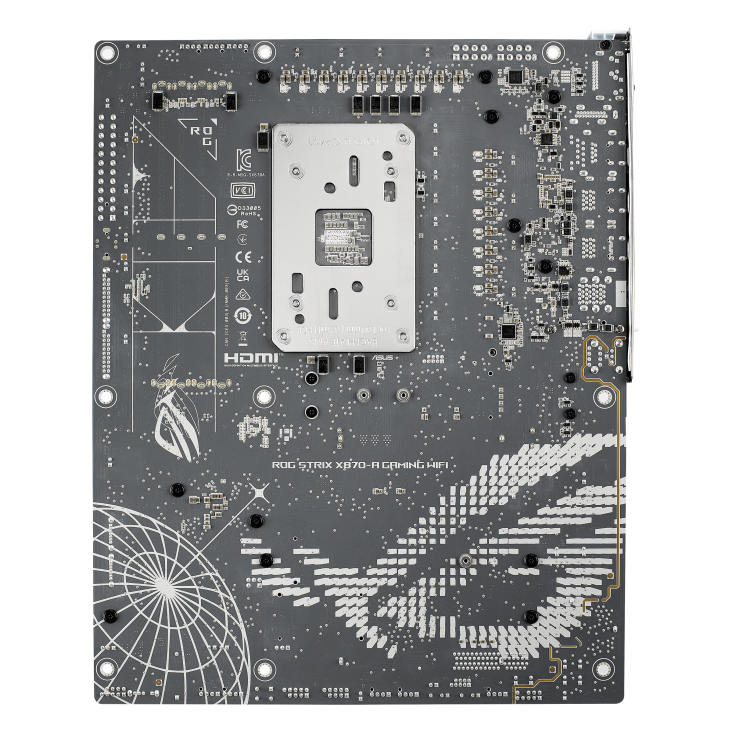

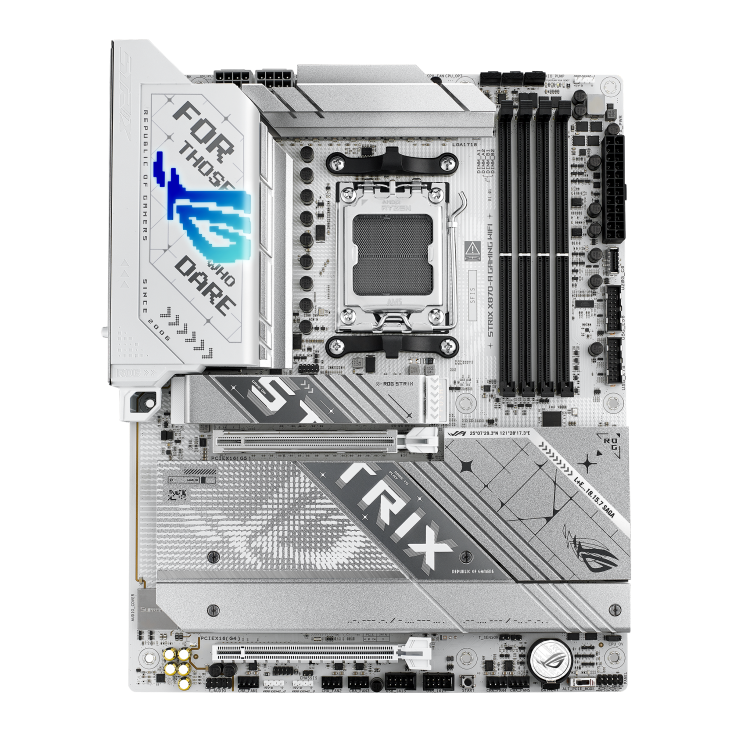

ASUS ROG STRIX X870-A GAMING WIFI DDR5 AM5 ATX Motherboard

Name: ASUS ROG STRIX X870-A GAMING WIFI DDR5 AM5 ATX Motherboard
Brand: ASUS
SKU: TN-10041
Price: 147999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 5

147,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC1220P 7.1 HD Audio
Brand: ASUS
Model: TUF GAMING X870E-PLUS WIFI7
Chipset: AMD X870E
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 4 x M.2 (PCIe 5.0 / 4.0)
RAM Speed: DDR5 8000+ MT/s (OC)

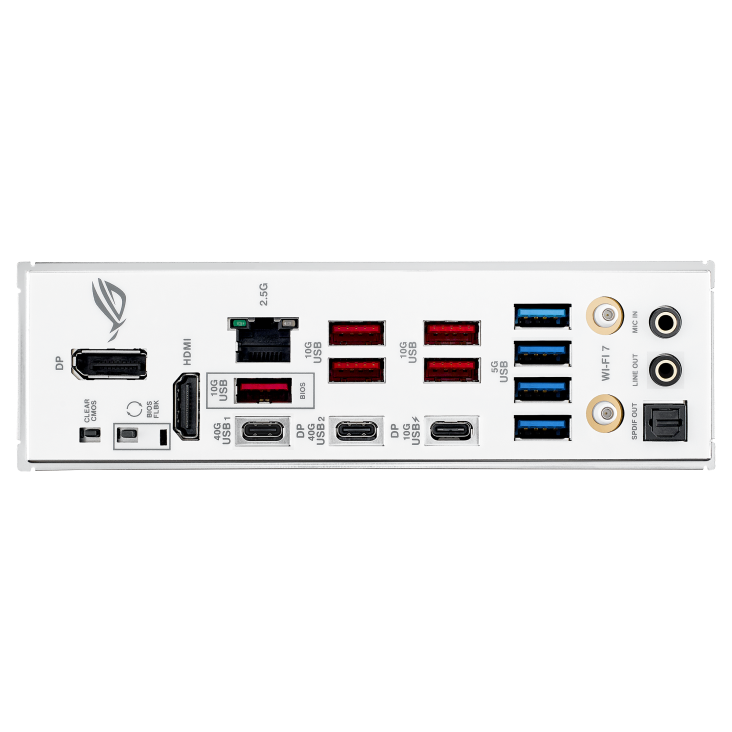

USB Ports: • Rear: 2 x USB4® Type-C 40Gbps • Rear: 3 x USB 10Gbps Type-A • Rear: 4 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers
CPU Socket: AM5
PCIe Slots: • 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x16 (supports x4 mode) • 1 x PCIe 4.0 x16 (Chipset, x4 mode) • 1 x PCIe 3.0 x1 slot
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0 / 4.0 / 3.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
Graphics Output: 1 x HDMI 2.1 2 x USB4® Type-C (40Gbps) with Display Output
Cooling Features: VRM Heatsinks + M.2 Heatsinks + 7 Fan Headers
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 4 x M.2 slots • 4 x SATA III • 4 x Chassis Fan Headers + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable Gen 2 headers • 1 x Clear CMOS header • 1 x Chassis Intrusion header • 1 x Front Panel Audio header (F_AUDIO) • 1 x 10-1 pin Front System Panel header • 1 x Thermal Sensor header
Wireless Connectivity: Wi-Fi 7 + Bluetooth 5.4

147,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The ASUS ROG STRIX X870-A GAMING WIFI DDR5 AM5 ATX Motherboard is a premium gaming motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors with the X870 chipset. It supports DDR5 memory up to 256 GB at 8000+ MT/s (OC), features PCIe 5.0 and 4.0 slots, Wi-Fi 7, and high-speed USB4® 40Gbps connectivity. Designed for gamers and content creators, it offers ROG SupremeFX ALC4080 7.1 HD audio, multiple M.2 storage slots, and advanced ROG Q-Design, Extreme Engine Digi+, and Aura Sync RGB support.

This motherboard includes Armoury Crate, Fan Xpert 4 with AI Cooling II, AI Overclocking Guide, TurboV Core, and other ROG/ASUS software for optimized performance and system customization.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC1220P 7.1 HD Audio

Brand

ASUS

Model

TUF GAMING X870E-PLUS WIFI7

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (PCIe 5.0 / 4.0)

RAM Speed

DDR5 8000+ MT/s (OC)

USB Ports

• Rear: 2 x USB4® Type-C 40Gbps • Rear: 3 x USB 10Gbps Type-A • Rear: 4 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers

CPU Socket

AM5

PCIe Slots

• 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x16 (supports x4 mode) • 1 x PCIe 4.0 x16 (Chipset, x4 mode) • 1 x PCIe 3.0 x1 slot

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0 / 3.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000 / 8000 / 7000 Series Processors

Graphics Output

1 x HDMI 2.1 2 x USB4® Type-C (40Gbps) with Display Output

Cooling Features

VRM Heatsinks + M.2 Heatsinks + 7 Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 4 x M.2 slots • 4 x SATA III • 4 x Chassis Fan Headers + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable Gen 2 headers • 1 x Clear CMOS header • 1 x Chassis Intrusion header • 1 x Front Panel Audio header (F_AUDIO) • 1 x 10-1 pin Front System Panel header • 1 x Thermal Sensor header

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4

About this product
