| Product Name | ASUS ROG STRIX X870-F GAMING WIFI DDR5 AM5 ATX Motherboard |
| Brand | ASUS |
| Model | ROG STRIX X870-F GAMING WIFI |
| Chipset | AMD X870 |
| CPU Socket | AM5 |
| Form Factor | ATX |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| RAM Type | DDR5 |
| RAM Capacity | 256 GB |
| RAM Speed | DDR5 8000+ MT/s (OC) |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 5.0 / 4.0 |
| PCIe Slots | • 1 x PCIe 5.0 x16 (CPU, supports x16) • 1 x PCIe 4.0 x16 (CPU, supports x8/x4) • 1 x PCIe 4.0 x16 (Chipset, supports x4) |
| M.2 Slots | 4 x M.2 (PCIe 5.0 / 4.0) |
| SATA Ports | 2 x SATA III |
| Graphics Output | 1 x DisplayPort 1.4 (8K@30Hz) 1 x HDMI 2.1 (4K@60Hz) 2 x USB4® Type-C (40Gbps) with Display Output |
| LAN | Intel 2.5Gb Ethernet |
| Wireless Connectivity | Wi-Fi 7 + Bluetooth 5.4 |
| Audio | ROG SupremeFX ALC4080 7.1 HD Audio with Savitech AMP |

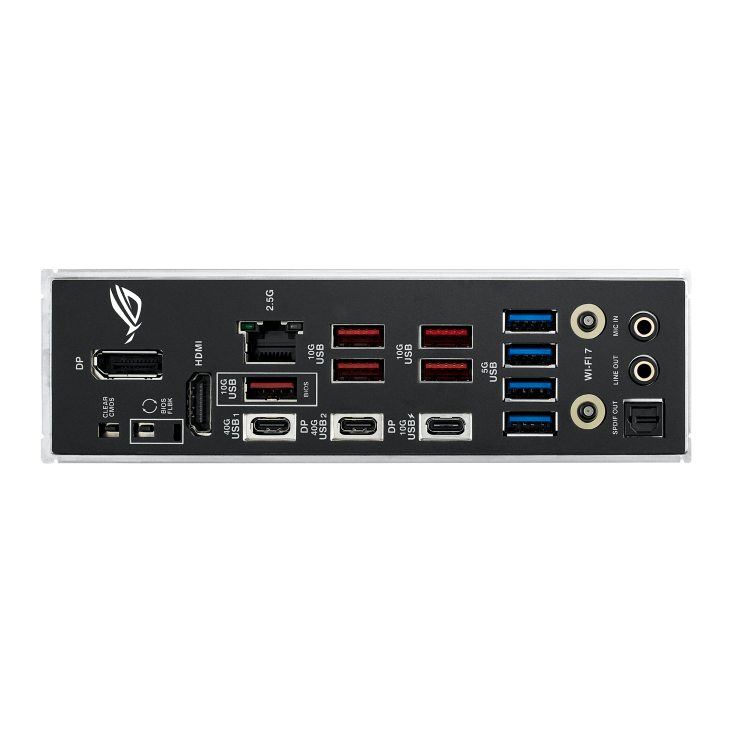

| USB Ports | • Rear: 2 x USB4® Type-C 40Gbps (DP Alt Mode) • Rear: 6 x USB 10Gbps (5 x Type-A + 1 x Type-C PD 30W) • Rear: 4 x USB 5Gbps Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 2 x USB 5Gbps Headers (supports 4 ports) • Front: 2 x USB 2.0 Headers (supports 4 ports) |
| Internal Headers | • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 4 x M.2 slots • 2 x SATA III • 5 x Chassis Fan + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable Gen 2 RGB headers • 1 x Alteration PCIe mode switch • 1 x Chassis Intrusion header • 1 x CPU Overvoltage jumper • 1 x Front Panel Audio header (F_AUDIO) • 1 x Start button • 1 x 10-1 pin System Panel header • 1 x Thermal Sensor header |
| Cooling Features | M.2 Heatsinks + M.2 Backplate + VRM Heatsinks + 7 Fan Headers |
| RGB Support | Yes – Aura Sync Addressable Gen 2 |
| RAID Support | RAID 0/1/5/10 (PCIe & SATA via AMD RAIDXpert2, CPU dependent) |
| Warranty | 10 Months Local Warranty |
The ASUS ROG STRIX X870-F GAMING WIFI DDR5 AM5 ATX Motherboard is a high-performance gaming motherboard built on the AMD X870 chipset, designed for AMD Ryzen 9000, 8000, and 7000 Series processors. It supports DDR5 memory up to 256 GB with speeds exceeding 8000 MT/s (OC), along with PCIe 5.0 and PCIe 4.0 expansion, making it ideal for next-gen GPUs and storage.
With Wi-Fi 7, Intel 2.5Gb Ethernet, USB4® 40Gbps, and advanced ROG SupremeFX ALC4080 audio, it delivers top-tier connectivity and immersive sound. The board also features 4 M.2 slots, robust VRM cooling, Aura Sync RGB, and a full suite of ASUS AI and ROG software tools like Armoury Crate, Fan Xpert 4, and AI Overclocking for optimized performance and customization.
