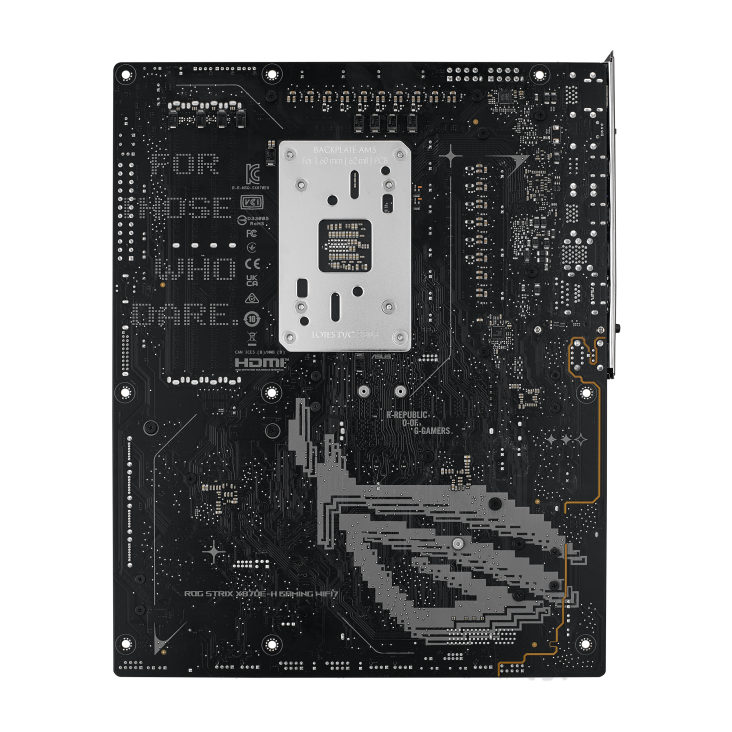

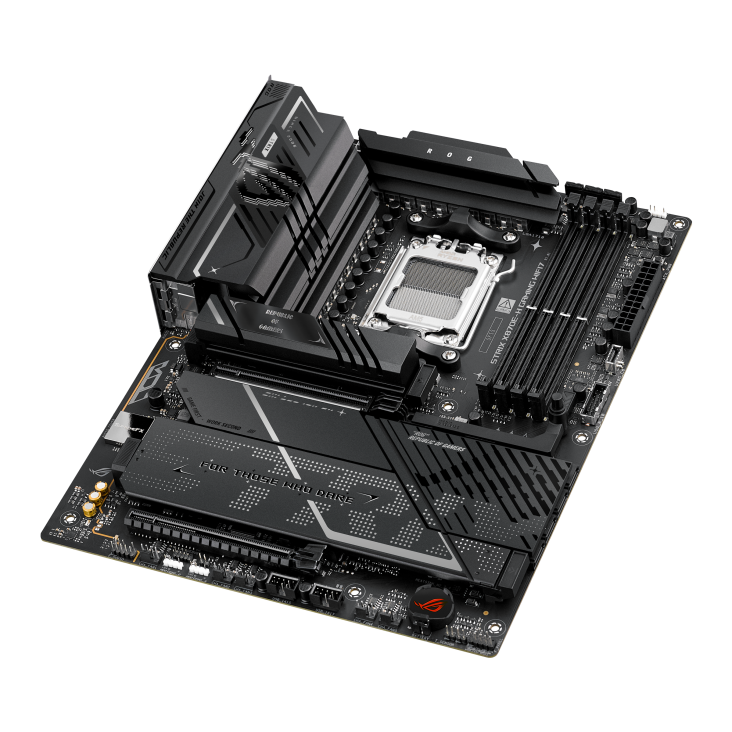

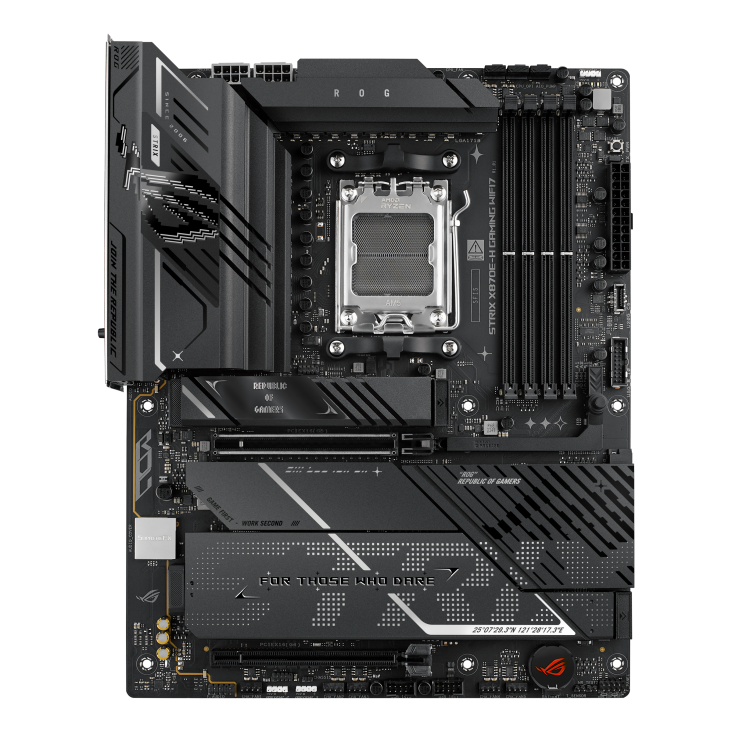

ASUS ROG STRIX X870E-H GAMING WIFI7 DDR5 AM5 ATX Motherboard

Specifications

LAN

Realtek 5Gb Ethernet

Audio

Realtek ALC1220P 7.1 HD Audio with internal AMP

Brand

ASUS

Model

ROG STRIX X870E-H GAMING WIFI7

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (PCIe 5.0 / 4.0)

RAM Speed

DDR5 8000+ MT/s (OC)

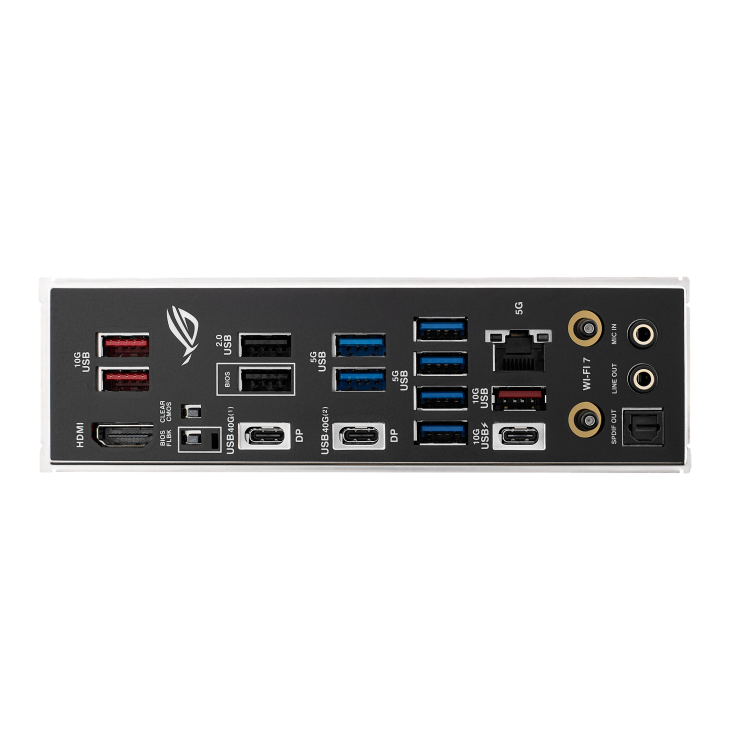

USB Ports

• Rear: 2 x USB4® Type-C 40Gbps • Rear: 4 x USB 10Gbps (3 x Type-A + 1 x Type-C PD/PPS) • Rear: 6 x USB 5Gbps Type-A • Rear: 2 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header (supports 2 ports) • Front: 2 x USB 2.0 Headers (supports 4 ports)

CPU Socket

AM5

PCIe Slots

• 1 x PCIe 5.0 x16 (CPU, supports x16) • 1 x PCIe 4.0 x16 (CPU, supports x8/x4) • 1 x PCIe 4.0 x16 (Chipset, x4)

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Aura Sync Addressable Gen 2

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0

RAID Support

RAID 0/1/5/10 via AMD RAIDXpert2 (dependent on CPU)

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000 / 8000 / 7000 Series Processors

Graphics Output

1 x HDMI 2.1 (4K@60Hz) 2 x USB4® Type-C (40Gbps) with Display Output

Cooling Features

M.2 Heatsinks + VRM Heatsinks + 7 Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 4 x M.2 slots • 4 x SATA III • 5 x Chassis Fan + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable Gen 2 RGB headers • 1 x Chassis Intrusion header • 1 x CPU Overvoltage jumper • 1 x Front Panel Audio header (F_AUDIO) • 1 x Start button • 1 x 10-1 pin Front Panel System header • 1 x Thermal Sensor header

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4
