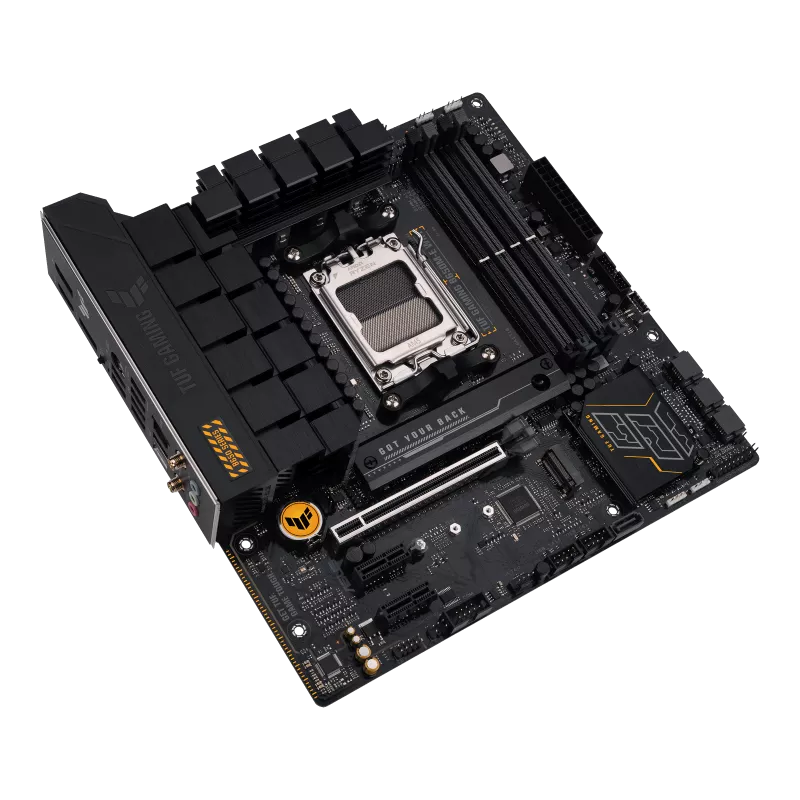

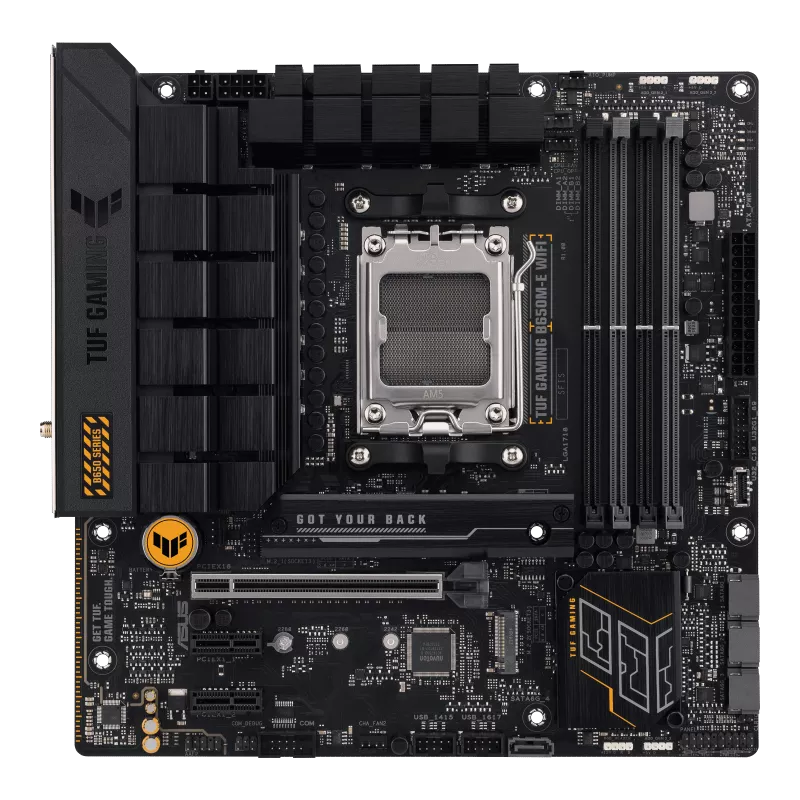

ASUS TUF GAMING B650M-E WIFI DDR5 AM5 Micro-ATX Motherboard

Name: ASUS TUF GAMING B650M-E WIFI DDR5 AM5 Micro-ATX Motherboard
Brand: ASUS
SKU: TN-10034
Price: 62999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

62,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek 7.1 HD Audio
Brand: ASUS
Model: TUF GAMING B650M-E WIFI
Chipset: AMD B650
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 5.0/4.0)
RAM Speed: DDR5 7600+ MHz (OC)

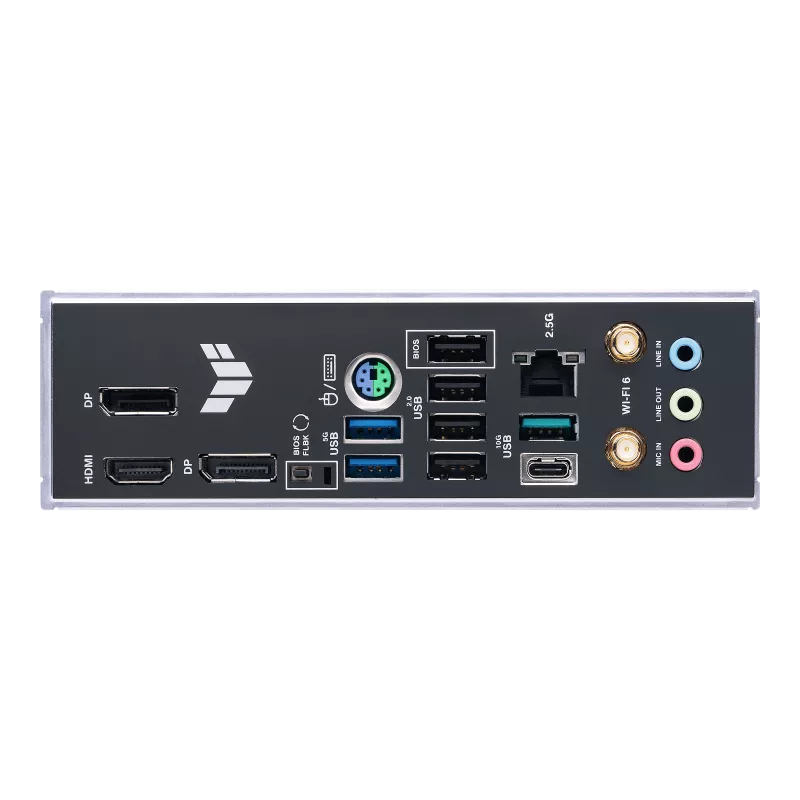

USB Ports: • Rear: 2 x USB 3.2 Gen 2 • Rear: 2 x USB 3.2 Gen 1 • Rear: 4 x USB 2.0 • Front: 1 x USB-C Header • Front: 1 x USB 3.2 Gen 1 Header
CPU Socket: AM5
PCIe Slots: 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0
RAM Capacity: 192 GB
Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
Graphics Output: 2 x DisplayPort 1.4 1 x HDMI 2.1
Cooling Features: VRM Heatsinks + M.2 Heatsink + Fan Xpert 2+
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x 4-pin CPU Power • 1 x USB-C Header • 2 x USB 2.0 Headers • 5 x Fan Headers
Wireless Connectivity: WiFi 6 + Bluetooth 5.2

62,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The ASUS TUF GAMING B650M-E WIFI DDR5 AM5 Micro-ATX Motherboard is built for durability and performance, making it an excellent choice for gamers and power users seeking a reliable AM5 platform. Powered by the AMD B650 chipset and supporting the latest Ryzen 9000, 8000, and 7000 series processors, it delivers consistent performance with robust power delivery and TUF-grade components.

With support for DDR5 memory up to 192 GB and speeds reaching 7600+ MHz (OC), the ASUS TUF GAMING B650M-E WIFI DDR5 AM5 Micro-ATX Motherboard ensures fast multitasking and future-ready memory performance. It features a PCIe 4.0 x16 slot for modern GPUs and dual M.2 slots, including PCIe 5.0 support, for ultra-fast storage solutions.

Connectivity is enhanced with WiFi 6, Bluetooth 5.2, and 2.5Gb Ethernet, ensuring fast and stable networking. Advanced cooling with VRM and M.2 heatsinks, along with multiple fan headers, keeps temperatures under control. With Aura Sync RGB support and rugged TUF protection features, this motherboard is ideal for building a stable, high-performance, and long-lasting PC.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek 7.1 HD Audio

Brand

ASUS

Model

TUF GAMING B650M-E WIFI

Chipset

AMD B650

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 5.0/4.0)

RAM Speed

DDR5 7600+ MHz (OC)

USB Ports

• Rear: 2 x USB 3.2 Gen 2 • Rear: 2 x USB 3.2 Gen 1 • Rear: 4 x USB 2.0 • Front: 1 x USB-C Header • Front: 1 x USB 3.2 Gen 1 Header

CPU Socket

AM5

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 4.0 x1

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0

RAM Capacity

192 GB

Supported CPUs

AMD Ryzen 9000 / 8000 / 7000 Series Processors

Graphics Output

2 x DisplayPort 1.4 1 x HDMI 2.1

Cooling Features

VRM Heatsinks + M.2 Heatsink + Fan Xpert 2+

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x 4-pin CPU Power • 1 x USB-C Header • 2 x USB 2.0 Headers • 5 x Fan Headers

Wireless Connectivity

WiFi 6 + Bluetooth 5.2
