ASUS TUF GAMING B860-PLUS WIFI DDR5 LGA1851 ATX Motherboard

Name: ASUS TUF GAMING B860-PLUS WIFI DDR5 LGA1851 ATX Motherboard
Brand: ASUS
SKU: TN-10016
Price: 71500 PKR
Availability: InStock

Manufacturer's page

1 / 4

71,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: Realtek 2.5Gb Ethernet with TUF LANGuard
Audio: Realtek 7.1 HD Audio with Audio Shielding, Rear Optical S/PDIF Out, Premium Audio Capacitors, Dedicated PCB Layers, Audio Cover
Brand: ASUS
Model: TUF GAMING B860-PLUS WIFI
Chipset: Intel B860
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 3 x M.2 (M.2_1 PCIe 5.0 x4 / M.2_2 PCIe 4.0 x4 / M.2_3 PCIe 4.0 x4)
RAM Speed: Up to 8666+ MT/s (OC)

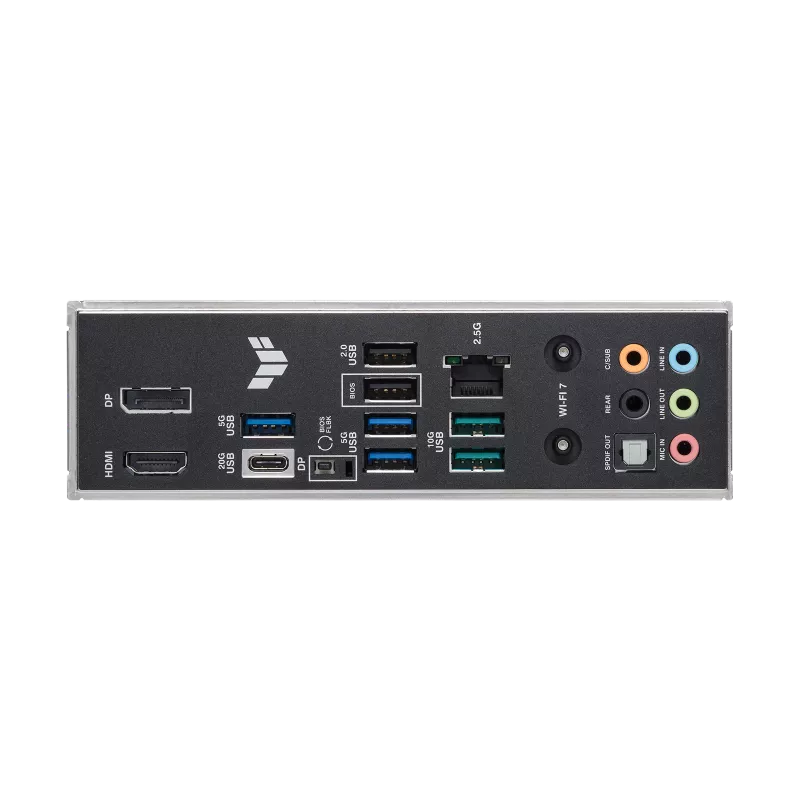

USB Ports: • Rear: 1 x USB 20Gbps Type-C • Rear: 2 x USB 10Gbps Type-A • Rear: 3 x USB 5Gbps Type-A • Rear: 2 x USB 2.0 Type-A • Front: 1 x USB 10Gbps Type-C • Front: 1 x USB 5Gbps Header (supports 2 additional USB 5Gbps ports) • Front: 1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)
CPU Socket: LGA1851
PCIe Slots: 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1
SATA Ports: 4 x SATA III 6Gb/s
Form Factor: ATX
RGB Support: Yes – Aura Sync Addressable Gen2
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0 / 4.0
RAM Capacity: Up to 256 GB
Supported CPUs: Intel Core Ultra Series 2 Processors
Graphics Output: 1 x DisplayPort 1 x HDMI 1 x USB Type-C (20Gbps, DP Alt Mode)
Cooling Features: VRM and M.2 Heatsinks; Multiple Fan Headers; Fan Xpert 4
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin +12V CPU Power • 1 x CPU Fan Header • 1 x CPU OPT Fan Header • 1 x AIO Pump Header • 4 x Chassis Fan Headers • 3 x Addressable Gen2 RGB Headers • 1 x Clear CMOS Header • 1 x Chassis Intrusion Header • 1 x COM Port Header • 1 x Front Panel Audio Header • 1 x 10-1 pin Front System Panel Header • 1 x Thunderbolt™ (USB4) Header
Wireless Connectivity: Wi-Fi 7 2x2 (802.11be), Bluetooth v5.4

71,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The ASUS TUF GAMING B860-PLUS WIFI DDR5 LGA1851 ATX Motherboard is built for Intel Core Ultra Series 2 processors, offering a balance of high-performance, durability, and advanced connectivity. Featuring the Intel B860 chipset, it supports DDR5 memory up to 256GB (8666+ MT/s OC) and includes three M.2 slots plus four SATA 6Gb/s ports for extensive storage options. Networking is reinforced with Realtek 2.5Gb Ethernet and TUF LANGuard, while Wi-Fi 7 (2x2) and Bluetooth v5.4 provide ultra-fast wireless performance.

Expansion options include PCIe 5.0 x16, PCIe 4.0 x16 (x4 mode), and PCIe 4.0 x1 slots, offering flexibility for GPUs and add-on cards. Cooling is enhanced with VRM and M.2 heatsinks, multiple fan headers, and fan control via Fan Xpert 4. Audio is delivered by Realtek 7.1 HD Audio with audio shielding, premium capacitors, rear optical S/PDIF out, and dedicated PCB layers.

Specifications

LAN

Realtek 2.5Gb Ethernet with TUF LANGuard

Audio

Realtek 7.1 HD Audio with Audio Shielding, Rear Optical S/PDIF Out, Premium Audio Capacitors, Dedicated PCB Layers, Audio Cover

Brand

ASUS

Model

TUF GAMING B860-PLUS WIFI

Chipset

Intel B860

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

3 x M.2 (M.2_1 PCIe 5.0 x4 / M.2_2 PCIe 4.0 x4 / M.2_3 PCIe 4.0 x4)

RAM Speed

Up to 8666+ MT/s (OC)

USB Ports

• Rear: 1 x USB 20Gbps Type-C • Rear: 2 x USB 10Gbps Type-A • Rear: 3 x USB 5Gbps Type-A • Rear: 2 x USB 2.0 Type-A • Front: 1 x USB 10Gbps Type-C • Front: 1 x USB 5Gbps Header (supports 2 additional USB 5Gbps ports) • Front: 1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)

CPU Socket

LGA1851

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1

SATA Ports

4 x SATA III 6Gb/s

Form Factor

ATX

RGB Support

Yes – Aura Sync Addressable Gen2

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0

RAM Capacity

Up to 256 GB

Supported CPUs

Intel Core Ultra Series 2 Processors

Graphics Output

1 x DisplayPort 1 x HDMI 1 x USB Type-C (20Gbps, DP Alt Mode)

Cooling Features

VRM and M.2 Heatsinks; Multiple Fan Headers; Fan Xpert 4

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin +12V CPU Power • 1 x CPU Fan Header • 1 x CPU OPT Fan Header • 1 x AIO Pump Header • 4 x Chassis Fan Headers • 3 x Addressable Gen2 RGB Headers • 1 x Clear CMOS Header • 1 x Chassis Intrusion Header • 1 x COM Port Header • 1 x Front Panel Audio Header • 1 x 10-1 pin Front System Panel Header • 1 x Thunderbolt™ (USB4) Header

Wireless Connectivity

Wi-Fi 7 2x2 (802.11be), Bluetooth v5.4
