ASUS TUF GAMING B860M-PLUS WIFI DDR5 LGA1851 Micro-ATX Motherboard

Name: ASUS TUF GAMING B860M-PLUS WIFI DDR5 LGA1851 Micro-ATX Motherboard
Brand: ASUS
SKU: TN-10015
Price: 66000 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

66,000PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: Realtek 2.5Gb Ethernet with TUF LANGuard
Audio: Realtek 7.1 HD Audio with Audio Shielding, Rear Optical S/PDIF Out, Premium Audio Capacitors, Dedicated PCB Layers
Brand: ASUS
Model: TUF GAMING B860M-PLUS WIFI
Chipset: Intel B860
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 3 x M.2 (M.2_1 PCIe 5.0 x4 / M.2_2 PCIe 4.0 x4 / M.2_3 PCIe 4.0 x4)
RAM Speed: Up to 8800+ MT/s (OC)

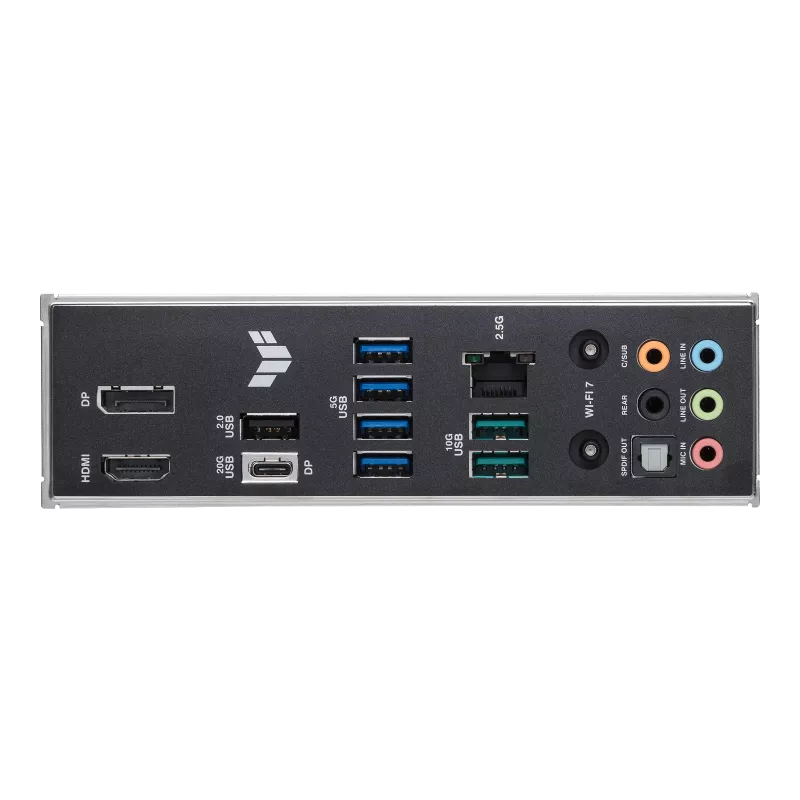

USB Ports: • Rear: 1 x USB 20Gbps Type-C • Rear: 2 x USB 10Gbps Type-A • Rear: 4 x USB 5Gbps Type-A • Rear: 1 x USB 2.0 Type-A • Front: 1 x USB 10Gbps Type-C • Front: 1 x USB 5Gbps Header (supports 2 additional USB 5Gbps ports) • Front: 1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)
CPU Socket: LGA1851
PCIe Slots: 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4
SATA Ports: 4 x SATA III 6Gb/s
Form Factor: Micro-ATX
RGB Support: Yes – Aura Sync Addressable Gen2
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0 / 4.0
RAM Capacity: Up to 256 GB
Supported CPUs: Intel Core Ultra Series 2 Processors
Graphics Output: 1 x DisplayPort 1 x HDMI 1 x USB Type-C (20Gbps, DP Alt Mode)
Cooling Features: VRM and M.2 Heatsinks; Multiple Fan Headers; Fan Xpert 2+
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin +12V CPU Power • 1 x CPU Fan Header • 1 x CPU OPT Fan Header • 1 x AIO Pump Header • 3 x Chassis Fan Headers • 3 x Addressable Gen2 RGB Headers • 1 x Clear CMOS Header • 1 x Chassis Intrusion Header • 1 x Front Panel Audio Header • 1 x 10-1 pin Front System Panel Header • 1 x Thunderbolt™ (USB4) Header
Wireless Connectivity: Wi-Fi 7 2x2 (802.11be), Bluetooth v5.4

66,000PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The ASUS TUF GAMING B860M-PLUS WIFI DDR5 LGA1851 Micro-ATX Motherboard is designed for Intel Core Ultra Series 2 processors, offering robust performance and advanced connectivity for modern gaming and AI-ready PCs. Featuring the Intel B860 chipset, it supports DDR5 memory up to 256GB (8800+ MT/s OC) and includes three M.2 slots with PCIe 5.0/4.0 support, along with SATA 6Gb/s ports for versatile storage options. Networking is reinforced with Realtek 2.5Gb Ethernet and TUF LANGuard, while Wi-Fi 7 (2x2) and Bluetooth v5.4 provide ultra-fast wireless connectivity.

Expansion options include PCIe 5.0 x16 and PCIe 4.0 x4 slots, giving flexibility for GPUs and high-speed add-on cards. Cooling and customization are supported with VRM and M.2 heatsinks, multiple fan headers, Aura Sync addressable Gen2 headers, and RGB support. Audio is delivered by Realtek 7.1 HD Audio with shielding, premium capacitors, and dedicated PCB layers.

Specifications

LAN

Realtek 2.5Gb Ethernet with TUF LANGuard

Audio

Realtek 7.1 HD Audio with Audio Shielding, Rear Optical S/PDIF Out, Premium Audio Capacitors, Dedicated PCB Layers

Brand

ASUS

Model

TUF GAMING B860M-PLUS WIFI

Chipset

Intel B860

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

3 x M.2 (M.2_1 PCIe 5.0 x4 / M.2_2 PCIe 4.0 x4 / M.2_3 PCIe 4.0 x4)

RAM Speed

Up to 8800+ MT/s (OC)

USB Ports

• Rear: 1 x USB 20Gbps Type-C • Rear: 2 x USB 10Gbps Type-A • Rear: 4 x USB 5Gbps Type-A • Rear: 1 x USB 2.0 Type-A • Front: 1 x USB 10Gbps Type-C • Front: 1 x USB 5Gbps Header (supports 2 additional USB 5Gbps ports) • Front: 1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)

CPU Socket

LGA1851

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4

SATA Ports

4 x SATA III 6Gb/s

Form Factor

Micro-ATX

RGB Support

Yes – Aura Sync Addressable Gen2

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0

RAM Capacity

Up to 256 GB

Supported CPUs

Intel Core Ultra Series 2 Processors

Graphics Output

1 x DisplayPort 1 x HDMI 1 x USB Type-C (20Gbps, DP Alt Mode)

Cooling Features

VRM and M.2 Heatsinks; Multiple Fan Headers; Fan Xpert 2+

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin +12V CPU Power • 1 x CPU Fan Header • 1 x CPU OPT Fan Header • 1 x AIO Pump Header • 3 x Chassis Fan Headers • 3 x Addressable Gen2 RGB Headers • 1 x Clear CMOS Header • 1 x Chassis Intrusion Header • 1 x Front Panel Audio Header • 1 x 10-1 pin Front System Panel Header • 1 x Thunderbolt™ (USB4) Header

Wireless Connectivity

Wi-Fi 7 2x2 (802.11be), Bluetooth v5.4
