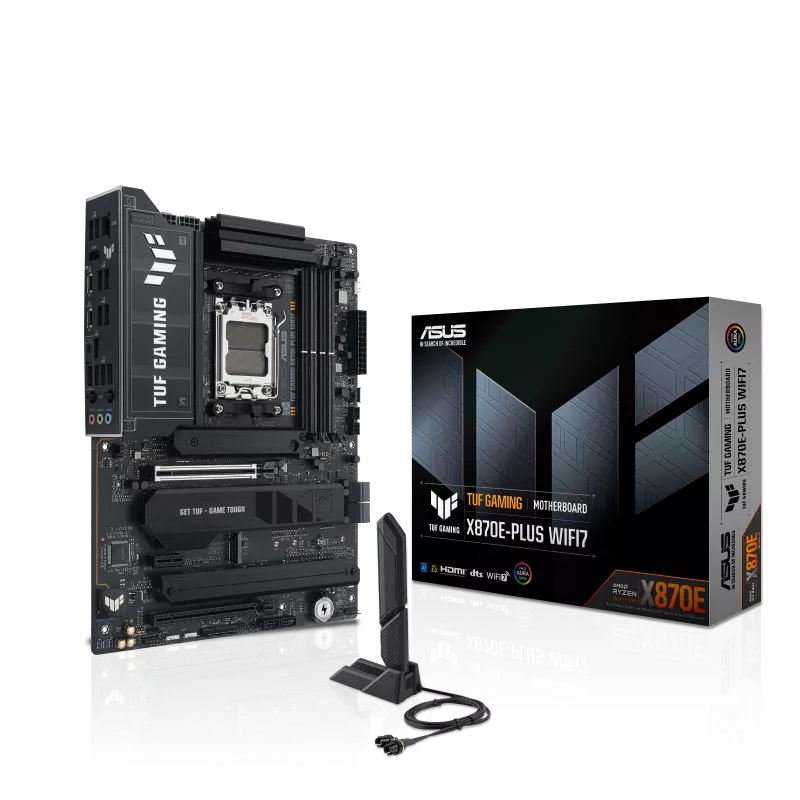

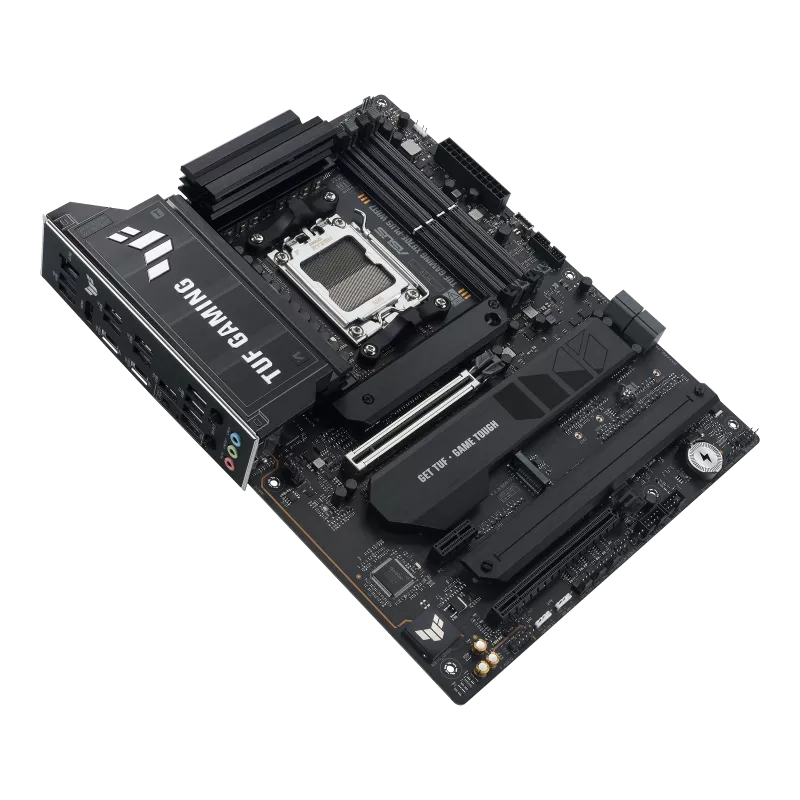

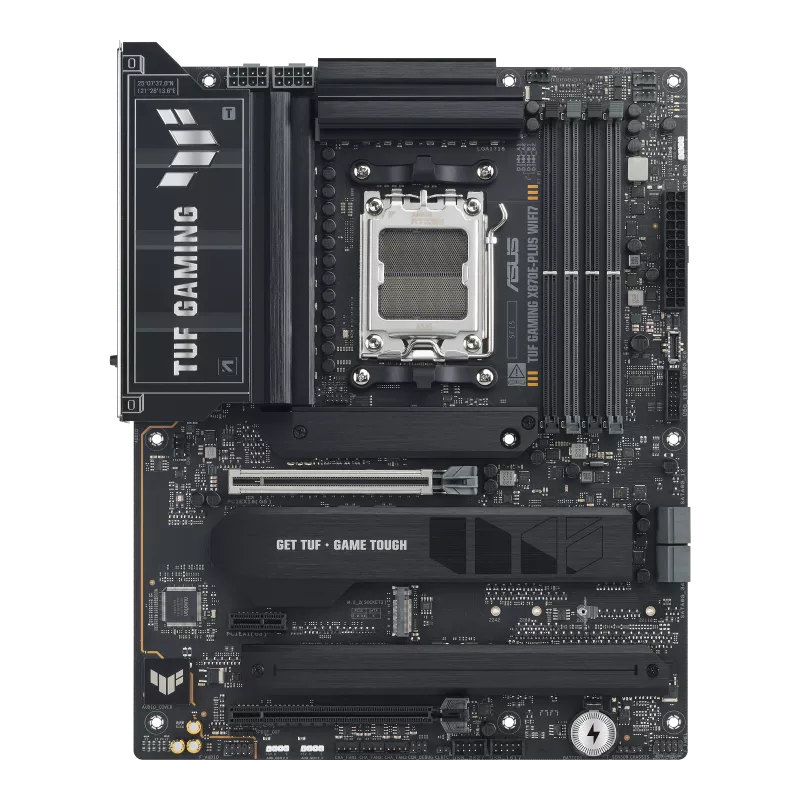

ASUS TUF GAMING X870E-PLUS WIFI7 DDR5 AM5 ATX Motherboard

Name: ASUS TUF GAMING X870E-PLUS WIFI7 DDR5 AM5 ATX Motherboard
Brand: ASUS
SKU: TN-10040
Price: 115500 PKR
Availability: InStock

Manufacturer's page

1 / 4

115,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC1220P 7.1 HD Audio
Brand: ASUS
Model: TUF GAMING X870E-PLUS WIFI7
Chipset: AMD X870E
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 4 x M.2 (PCIe 5.0 / 4.0)
RAM Speed: DDR5 8000+ MT/s (OC)

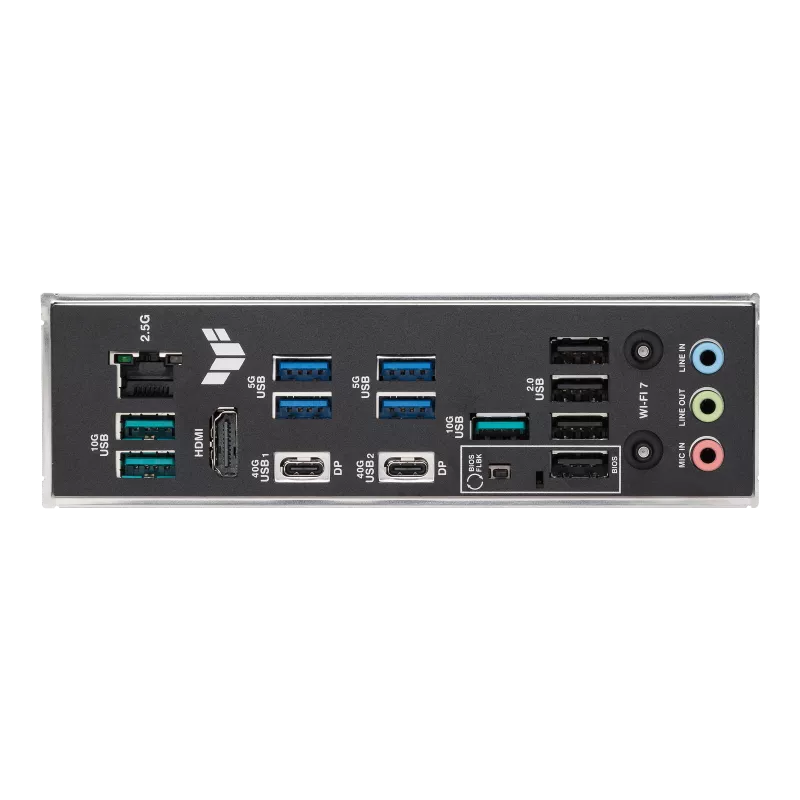

USB Ports: • Rear: 2 x USB4® Type-C 40Gbps • Rear: 3 x USB 10Gbps Type-A • Rear: 4 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers
CPU Socket: AM5
PCIe Slots: • 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x16 (supports x4 mode) • 1 x PCIe 4.0 x16 (Chipset, x4 mode) • 1 x PCIe 3.0 x1 slot
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0 / 4.0 / 3.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
Graphics Output: 1 x HDMI 2.1 2 x USB4® Type-C (40Gbps) with Display Output
Cooling Features: VRM Heatsinks + M.2 Heatsinks + 7 Fan Headers
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 4 x M.2 slots • 4 x SATA III • 4 x Chassis Fan Headers + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable Gen 2 headers • 1 x Clear CMOS header • 1 x Chassis Intrusion header • 1 x Front Panel Audio header (F_AUDIO) • 1 x 10-1 pin Front System Panel header • 1 x Thermal Sensor header
Wireless Connectivity: Wi-Fi 7 + Bluetooth 5.4

115,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The ASUS TUF GAMING X870E-PLUS WIFI7 DDR5 AM5 ATX Motherboard is a high-performance gaming motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors with the X870E chipset. It supports DDR5 memory up to 256 GB at 8000+ MT/s (OC), features PCIe 5.0 graphics, Wi-Fi 7, and robust USB connectivity including USB4® 40Gbps. Designed for gamers, it delivers high-quality Realtek ALC1220P 7.1 HD audio, multiple M.2 and SATA storage options, and advanced TUF Protection and cooling solutions.

This motherboard provides ASUS Aura Sync RGB, Armoury Crate, AI Cooling II, TurboV Core, and other ASUS-exclusive software tools for optimized performance and easy system customization.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC1220P 7.1 HD Audio

Brand

ASUS

Model

TUF GAMING X870E-PLUS WIFI7

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (PCIe 5.0 / 4.0)

RAM Speed

DDR5 8000+ MT/s (OC)

USB Ports

• Rear: 2 x USB4® Type-C 40Gbps • Rear: 3 x USB 10Gbps Type-A • Rear: 4 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers

CPU Socket

AM5

PCIe Slots

• 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x16 (supports x4 mode) • 1 x PCIe 4.0 x16 (Chipset, x4 mode) • 1 x PCIe 3.0 x1 slot

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0 / 3.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000 / 8000 / 7000 Series Processors

Graphics Output

1 x HDMI 2.1 2 x USB4® Type-C (40Gbps) with Display Output

Cooling Features

VRM Heatsinks + M.2 Heatsinks + 7 Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 4 x M.2 slots • 4 x SATA III • 4 x Chassis Fan Headers + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable Gen 2 headers • 1 x Clear CMOS header • 1 x Chassis Intrusion header • 1 x Front Panel Audio header (F_AUDIO) • 1 x 10-1 pin Front System Panel header • 1 x Thermal Sensor header

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4
