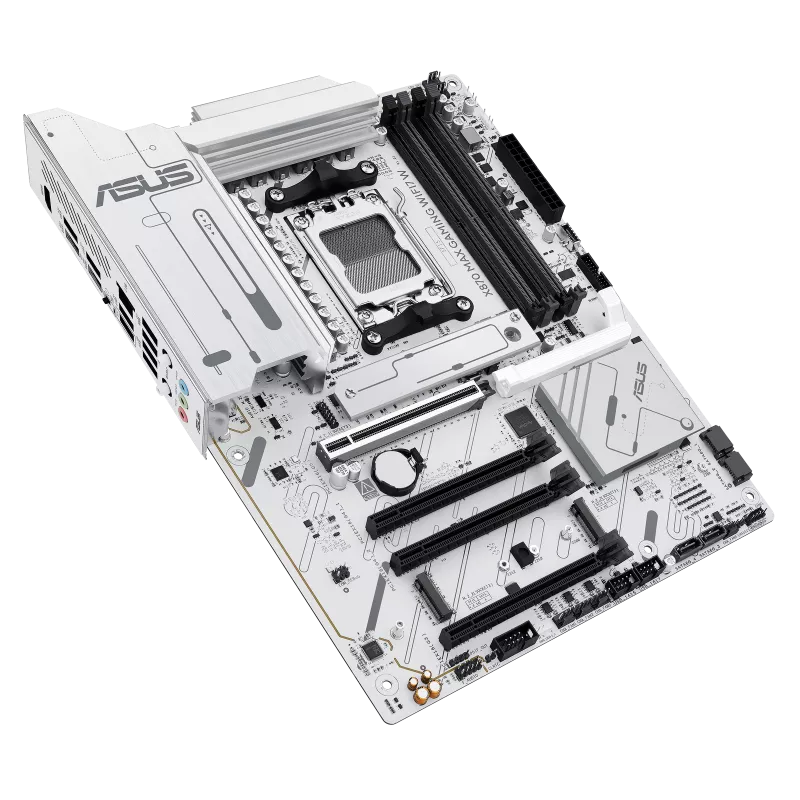

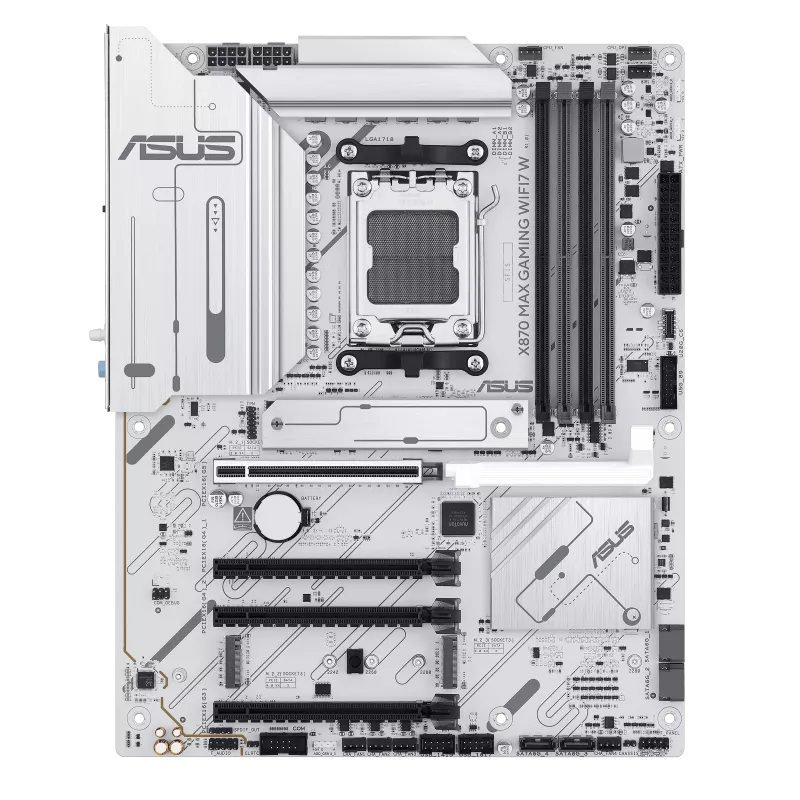

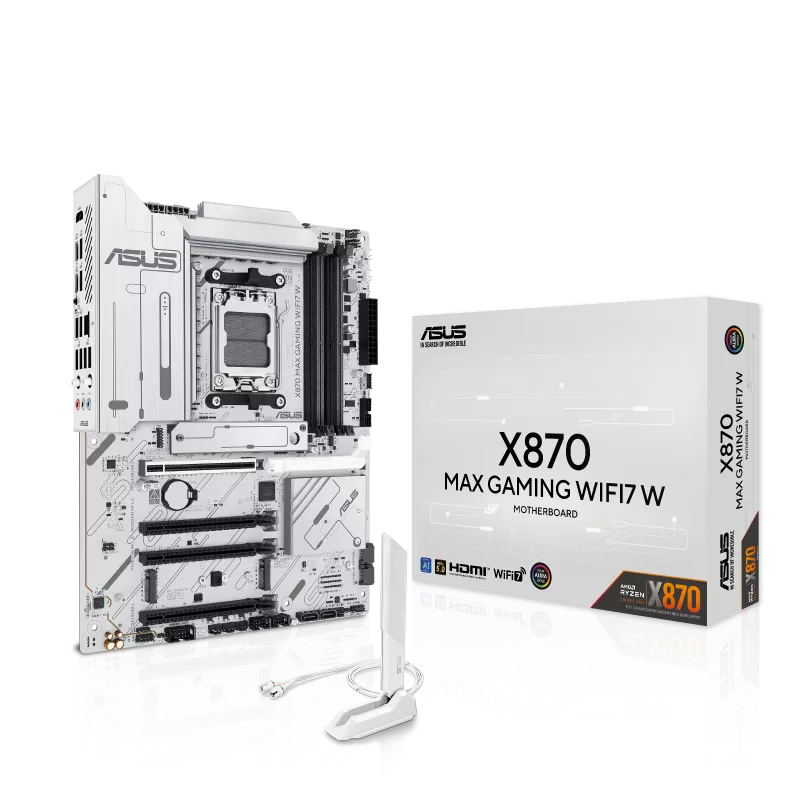

ASUS X870 MAX GAMING WIFI7 W DDR5 AM5 ATX Motherboard

Manufacturer's page

1 / 4

97,000PKR

In stock

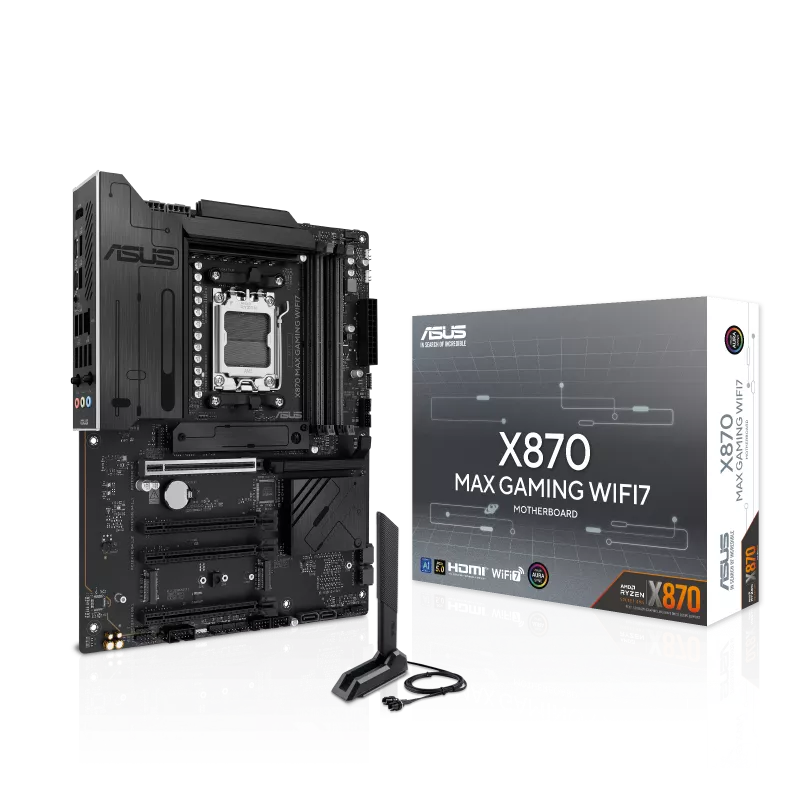

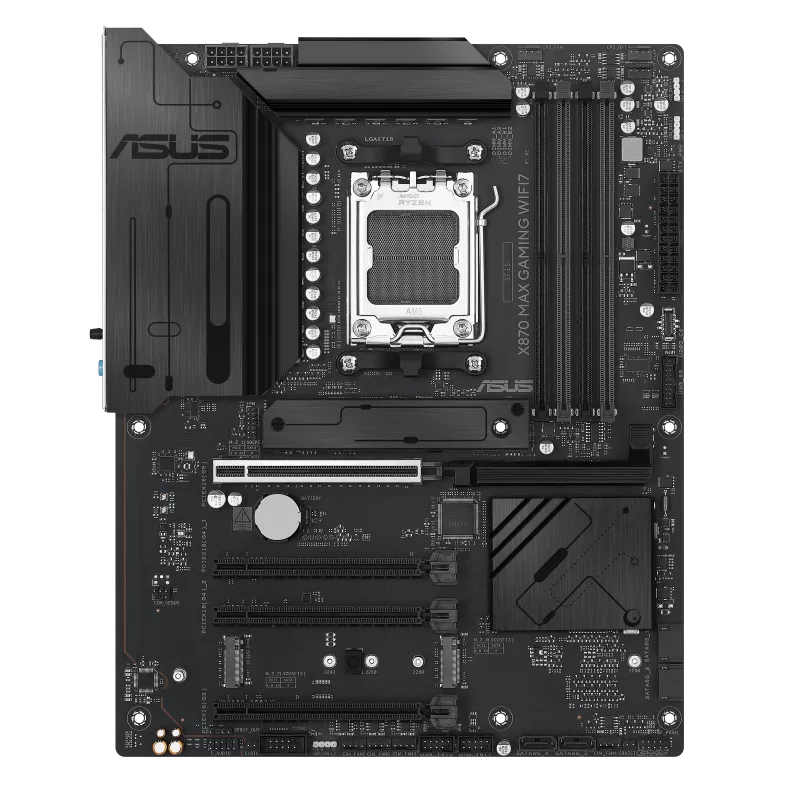

Color

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek 7.1 HD Audio
Brand: ASUS
Model: X870 MAX GAMING WIFI7 W
Chipset: AMD X870
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 3 x M.2 (PCIe 5.0/4.0)
RAM Speed: DDR5 8000+ MT/s (OC)

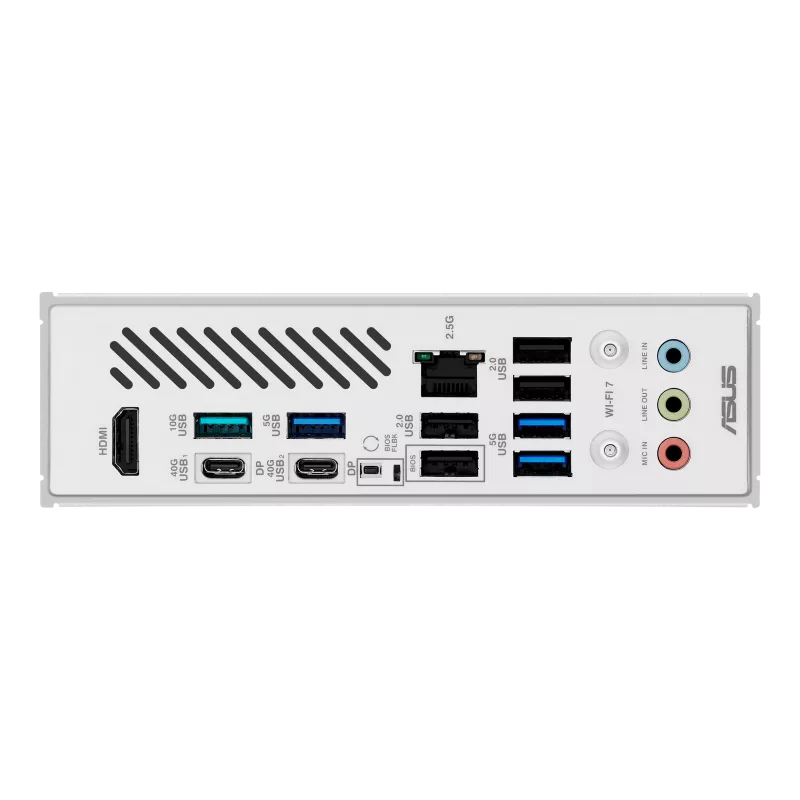

USB Ports: • Rear: 2 x USB4® Type-C 40Gbps • Rear: 1 x USB 10Gbps Type-A • Rear: 3 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers
CPU Socket: AM5
PCIe Slots: • 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x16 (x1 mode) • 2 x PCIe 4.0 x16 (x1 mode) • 1 x PCIe 3.0 x16 (x1 mode)
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Aura Sync
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0 / 4.0 / 3.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series Processors
Graphics Output: 1 x HDMI 2.1 2 x USB4® Type-C (40Gbps) with Display Output
Cooling Features: VRM Heatsinks + Flexible M.2 Heatsinks + 7 Fan Headers
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 3 x M.2 slots • 4 x SATA III • 4 x Chassis Fan Headers + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable RGB Gen 2 headers • 1 x Clear CMOS header • 1 x Chassis Intrusion header • 1 x COM Port header • 1 x Front Panel Audio header (F_AUDIO) • 1 x S/PDIF Out header • 1 x SPI TPM header (14-1 pin) • 1 x 10-1 pin System Panel header
Wireless Connectivity: Wi-Fi 7 + Bluetooth 5.4

97,000PKR

In stock

Color

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The ASUS X870 MAX GAMING WIFI7 W DDR5 AM5 ATX Motherboard is a flagship gaming platform designed for AMD Ryzen 9000, 8000, and 7000 Series processors, featuring the X870 chipset with advanced Wi-Fi 7 support, high-speed DDR5 memory up to 256 GB, PCIe 5.0 graphics, and USB4® 40Gbps connectivity. Built for extreme performance, this motherboard includes ASUS 5X PROTECTION III, premium Realtek 7.1 HD audio, robust storage options, and customizable Aura Sync RGB lighting.

Engineered for gamers and content creators, it supports RAID 0/1/5/10, multiple M.2 NVMe drives, advanced cooling solutions, and ASUS-exclusive utilities like Armoury Crate, ASUS AI Advisor, TurboV Core, and UEFI BIOS tools for easy system optimization.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek 7.1 HD Audio

Brand

ASUS

Model

X870 MAX GAMING WIFI7 W

Chipset

AMD X870

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

3 x M.2 (PCIe 5.0/4.0)

RAM Speed

DDR5 8000+ MT/s (OC)

USB Ports

• Rear: 2 x USB4® Type-C 40Gbps • Rear: 1 x USB 10Gbps Type-A • Rear: 3 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 Type-A • Front: 1 x USB 20Gbps Type-C Header • Front: 1 x USB 5Gbps Header • Front: 2 x USB 2.0 Headers

CPU Socket

AM5

PCIe Slots

• 1 x PCIe 5.0 x16 • 1 x PCIe 4.0 x16 (x1 mode) • 2 x PCIe 4.0 x16 (x1 mode) • 1 x PCIe 3.0 x16 (x1 mode)

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Aura Sync

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0 / 4.0 / 3.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000 / 8000 / 7000 Series Processors

Graphics Output

1 x HDMI 2.1 2 x USB4® Type-C (40Gbps) with Display Output

Cooling Features

VRM Heatsinks + Flexible M.2 Heatsinks + 7 Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 3 x M.2 slots • 4 x SATA III • 4 x Chassis Fan Headers + 1 x CPU Fan + 1 x CPU OPT + 1 x AIO Pump • 3 x Addressable RGB Gen 2 headers • 1 x Clear CMOS header • 1 x Chassis Intrusion header • 1 x COM Port header • 1 x Front Panel Audio header (F_AUDIO) • 1 x S/PDIF Out header • 1 x SPI TPM header (14-1 pin) • 1 x 10-1 pin System Panel header

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4
