| Brand | MSI |
| Model | B650M GAMING WIFI |
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| Form Factor | Micro-ATX |
| Supported CPUs | AMD Ryzen 9000/8000/7000 Series Processors |
| RAM Type | DDR5 |
| RAM Capacity | 128 GB |
| RAM Speed | DDR5 7800+ MHz (OC) |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 |
| M.2 Slots | 2 x M.2 (PCIe 4.0) |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| LAN | 2.5Gb Ethernet |
| Wireless Connectivity | WiFi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897 7.1 HD Audio |
| USB Ports | • Rear: 3 x USB 5Gbps Type-A • Rear: 1 x USB 5Gbps Type-C • Rear: 2 x USB 2.0 • Front: 4 x USB 5Gbps Type-A • Front: 4 x USB 2.0 |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x CPU Fan • 3 x System Fan • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 2 x Addressable RGB Header (JARGB_V2) • 1 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 • 4 x USB 5Gbps Type-A • 1 x USB 5Gbps Type-C |
| Cooling Features | VRM Heatsinks + Smart Fan Control |
| RGB Support | Yes – RGB Fusion |
| Warranty | 10 Months Local Warranty |

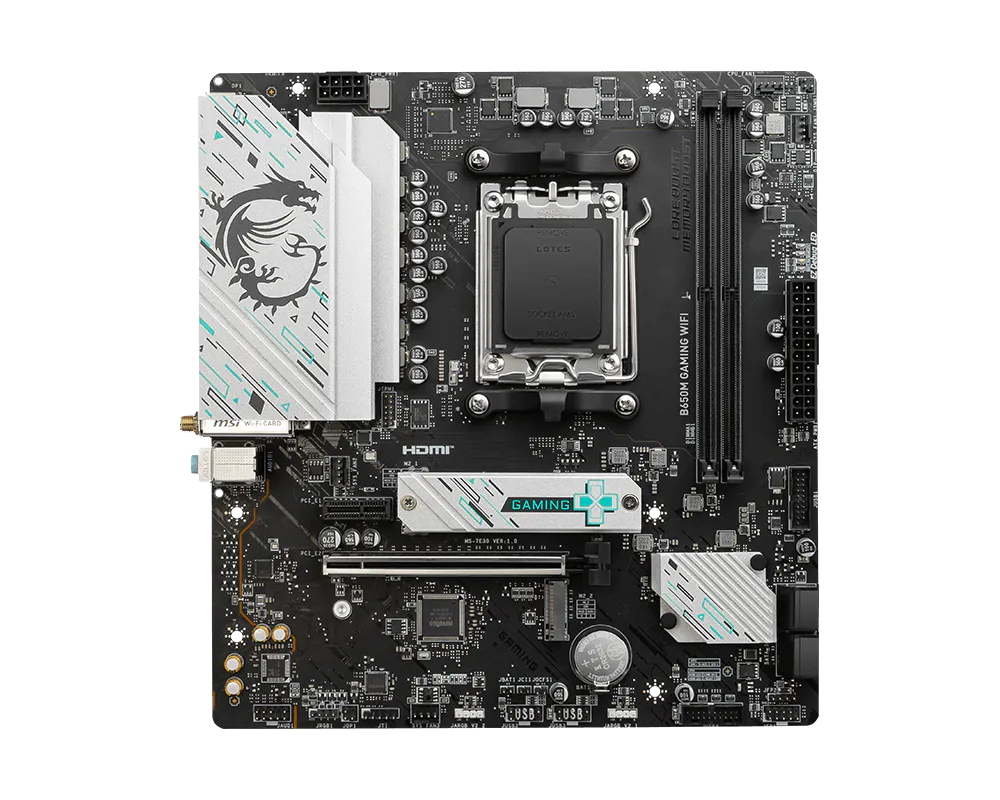

The MSI B650M GAMING WIFI DDR5 AM5 Micro-ATX Motherboard is engineered for gamers and PC enthusiasts seeking high performance in a compact form factor. Featuring the AMD B650 chipset and AM5 socket, it fully supports AMD Ryzen 9000, 8000, and 7000 series processors, delivering stable power and efficient thermal management for demanding workloads and gaming sessions.
This motherboard supports DDR5 memory up to 7800+ MHz (OC) with a maximum capacity of 128 GB, optimized for dual-channel configurations and AMD EXPO™ overclocking. With PCIe 4.0 x16 and PCIe 3.0 x1 slots, along with dual M.2 slots and 4 SATA III ports, it offers versatile expansion and ultra-fast storage options for modern builds.

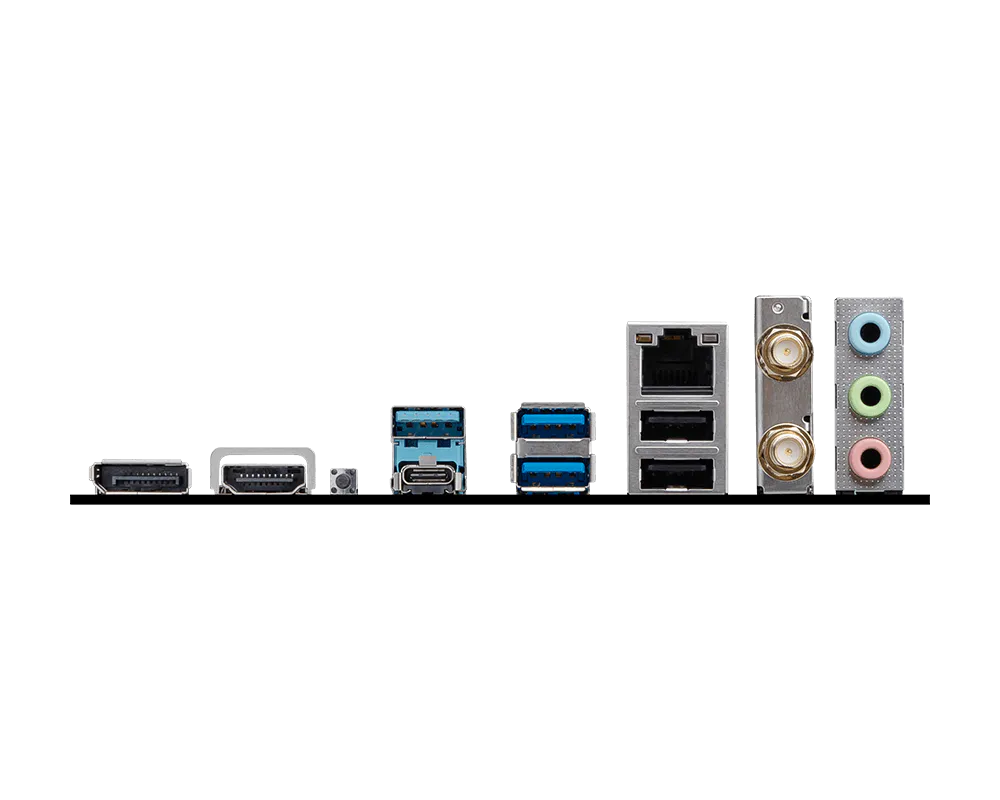

Connectivity options include WiFi 6E, Bluetooth 5.3, and 2.5Gb Ethernet, alongside a rich selection of rear and internal USB ports. Integrated graphics support via HDMI 2.1 and DisplayPort 1.4, multiple fan headers, and RGB lighting headers provide flexible cooling and customization. Enhanced diagnostics with EZ Debug LEDs ensures easy troubleshooting and system stability.
The MSI B650M GAMING WIFI DDR5 AM5 Micro-ATX Motherboard combines performance, connectivity, and future-ready features, making it an ideal choice for reliable and high-performance PC builds.
