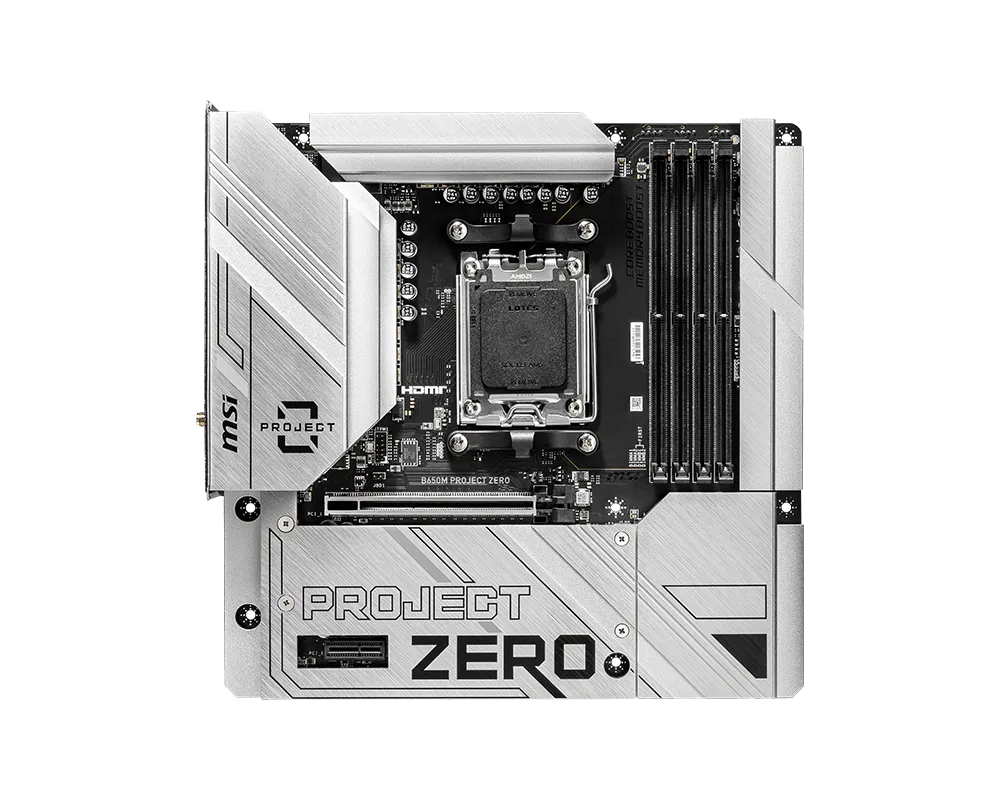

MSI B650M PROJECT ZERO DDR5 AM5 Micro-ATX Motherboard

Name: MSI B650M PROJECT ZERO DDR5 AM5 Micro-ATX Motherboard
Brand: MSI
SKU: TN-10105
Price: 58500 PKR
Availability: InStock

Manufacturer's page

1 / 5

58,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC897 7.1 HD Audio
Brand: MSI
Model: B650M PROJECT ZERO
Chipset: AMD B650
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0)
RAM Speed: DDR5 7600+ MHz (OC)

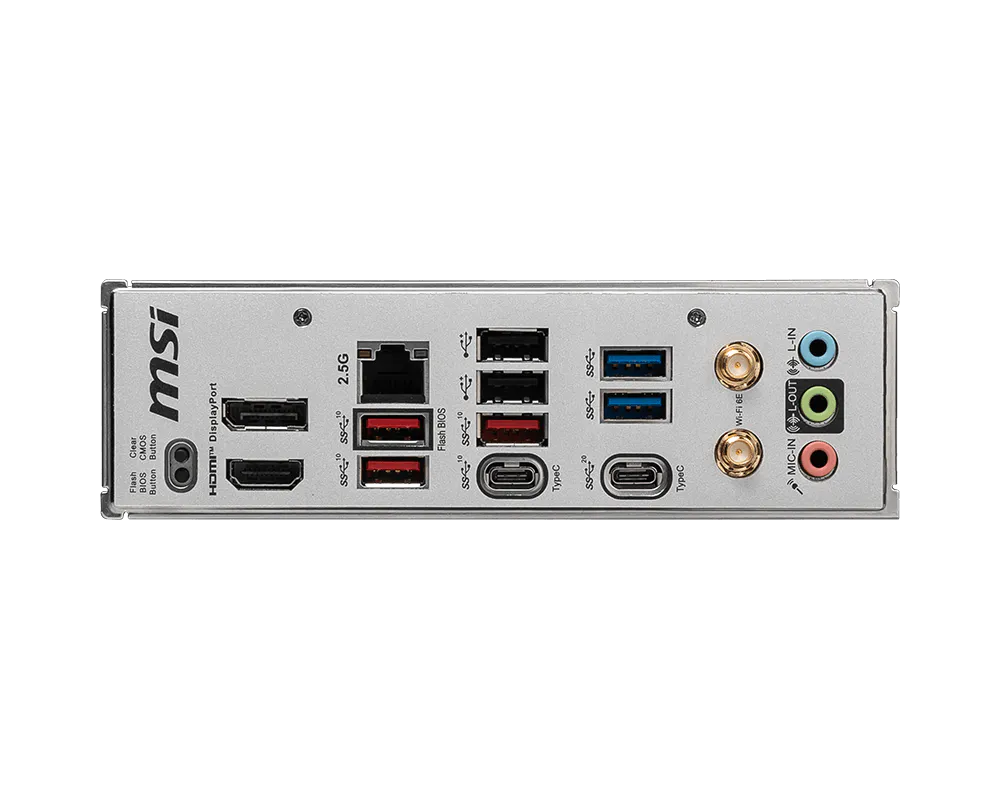

USB Ports: • Rear: 3 x USB 10Gbps Type-A • Rear: 2 x USB 5Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Rear: 1 x USB 20Gbps Type-C • Front: 2 x USB 5Gbps Type-A • Front: 4 x USB 2.0 • Rear: 2 x USB 2.0
CPU Socket: AM5
PCIe Slots: 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – RGB Fusion
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000/8000/7000 Series Processors
Graphics Output: 1 x HDMI 2.1 1 x DisplayPort 1.4
Cooling Features: VRM Heatsinks + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Pump Fan • 3 x System Fan • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 3 x Addressable RGB Header (JARGB_V2) • 1 x TPM Header • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C
Wireless Connectivity: WiFi 6E + Bluetooth 5.3

58,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The MSI B650M PROJECT ZERO DDR5 AM5 Micro-ATX Motherboard is a high-performance platform designed for gamers, content creators, and PC enthusiasts who demand ultimate expandability and memory bandwidth. Built on the AMD B650 chipset with an AM5 socket, it fully supports AMD Ryzen 9000, 8000, and 7000 series processors, providing robust power delivery and exceptional system stability for intensive workloads.

Featuring four DDR5 DIMM slots supporting up to 256 GB at 7600+ MHz (OC), this motherboard excels in memory-intensive applications and dual-/quad-channel configurations. Expansion is versatile with PCIe 4.0 x16, PCIe 3.0 x1 slots, dual M.2 slots, and four SATA III ports, ensuring ultra-fast storage and graphics performance.

Connectivity includes AMD Wi-Fi 6E, Bluetooth 5.3, and 2.5Gb Ethernet, alongside a comprehensive selection of rear and internal USB ports. Integrated HDMI 2.1 and DisplayPort 1.4, multiple fan headers, pump fan support, and RGB headers allow advanced cooling and customization. EZ Debug LEDs make system diagnostics effortless.

The MSI B650M PROJECT ZERO DDR5 AM5 Micro-ATX Motherboard delivers unmatched performance, cutting-edge connectivity, and future-ready features, making it ideal for next-generation PC builds.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

B650M PROJECT ZERO

Chipset

AMD B650

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0)

RAM Speed

DDR5 7600+ MHz (OC)

USB Ports

• Rear: 3 x USB 10Gbps Type-A • Rear: 2 x USB 5Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Rear: 1 x USB 20Gbps Type-C • Front: 2 x USB 5Gbps Type-A • Front: 4 x USB 2.0 • Rear: 2 x USB 2.0

CPU Socket

AM5

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x1

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – RGB Fusion

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000/8000/7000 Series Processors

Graphics Output

1 x HDMI 2.1 1 x DisplayPort 1.4

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Pump Fan • 3 x System Fan • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 3 x Addressable RGB Header (JARGB_V2) • 1 x TPM Header • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C

Wireless Connectivity

WiFi 6E + Bluetooth 5.3

About this product

The MSI B650M PROJECT ZERO DDR5 AM5 Micro-ATX Motherboard delivers unmatched performance, cutting-edge connectivity, and future-ready features, making it ideal for next-generation PC builds.
