Price Notice: Prices are not final. Kindly confirm price and stock before ordering.
In stock
| Brand | MSI |
| Model | B760 GAMING PLUS WIFI DDR5 |
| Chipset | B760 |
| CPU Socket | LGA1700 |
| Form Factor | ATX |
| Supported CPUs | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| RAM Type | DDR5 |
| RAM Capacity | 256 GB |
| RAM Speed | DDR5 6800+ MHz (OC) |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 4.0 / PCIe 3.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 3 x PCIe 3.0 x1 |
| M.2 Slots | 2 x M.2 (PCIe 4.0/SATA) |
| SATA Ports | 4 x SATA III |

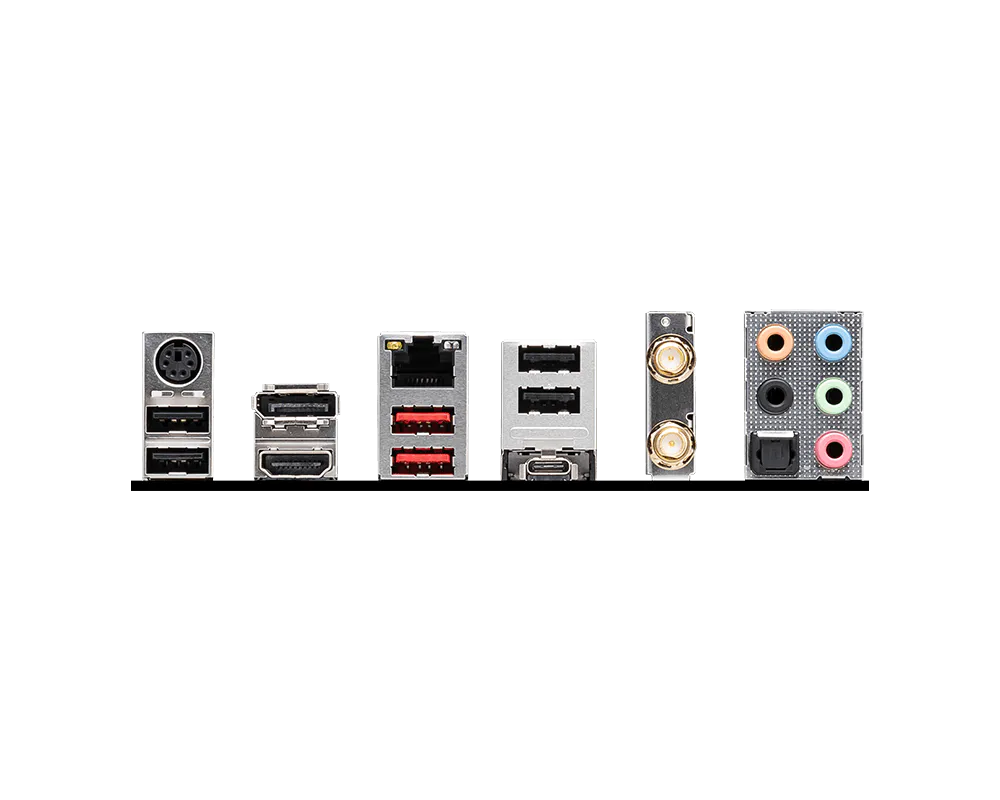

| Graphics Output | 1 x HDMI 2.1 1 x DisplayPort 1.4 1 x D-Sub (VGA) |
| LAN | 2.5Gbps Ethernet (Realtek RTL8125BG) |
| Wireless Connectivity | Intel Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897 7.1 HD Audio, S/PDIF support |
| USB Ports | • Rear: 1 x USB 10Gbps Type-C, 2 x USB 10Gbps Type-A, 4 x USB 2.0 • Front: 1 x USB 5Gbps Type-C, 2 x USB 5Gbps Type-A, 4 x USB 2.0 |
| Internal Headers | • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan, 1 x Pump Fan, 5 x System Fan • 2 x Front Panel Header • 1 x Chassis Intrusion Header • 1 x Front Audio Header • 1 x Printer Port • 1 x Com Port • 2 x Addressable RGB Headers (JARGB_V2) • 1 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 Headers • 2 x USB 5Gbps Type-A Headers • 1 x USB 5Gbps Type-C Header |
| Cooling Features | Smart Fan Control with CPU, Pump, and 5 System Fan Headers |
| RGB Support | Yes – MSI Mystic Light |
| Warranty | 10 Months Local Warranty |

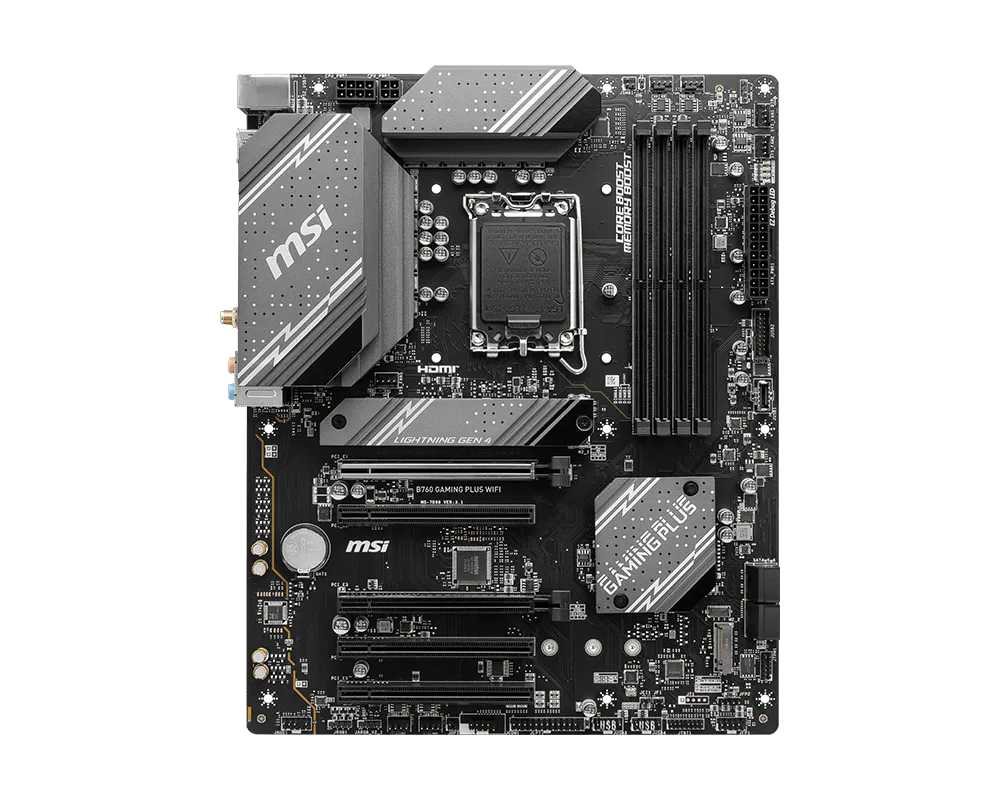

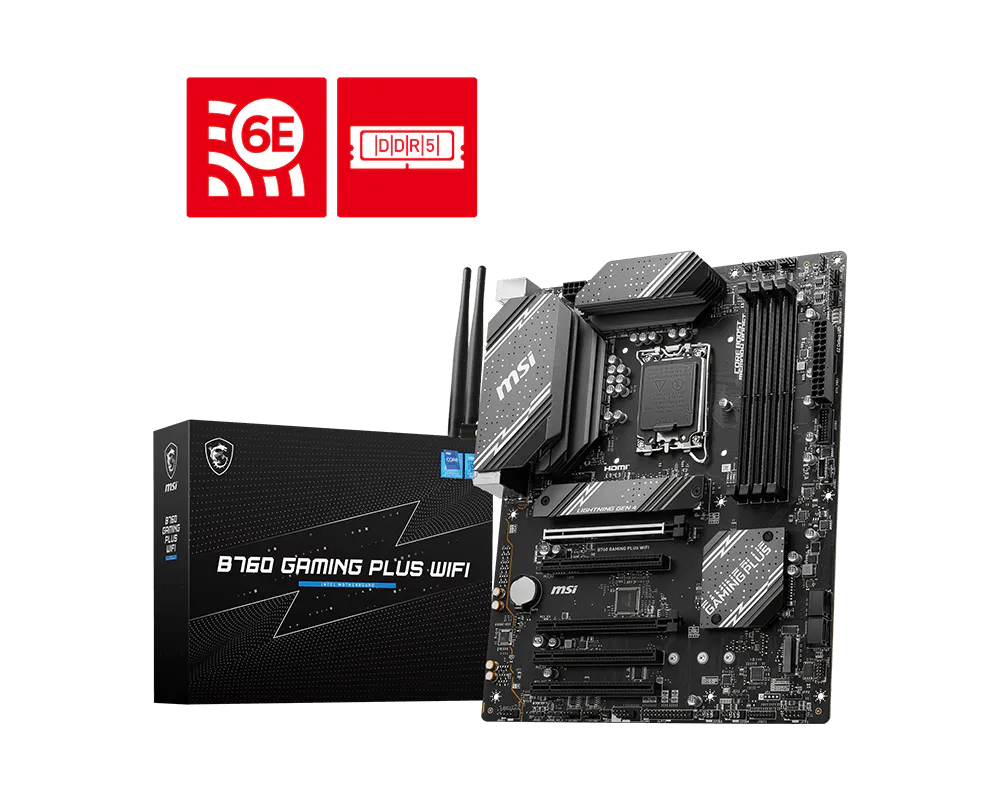

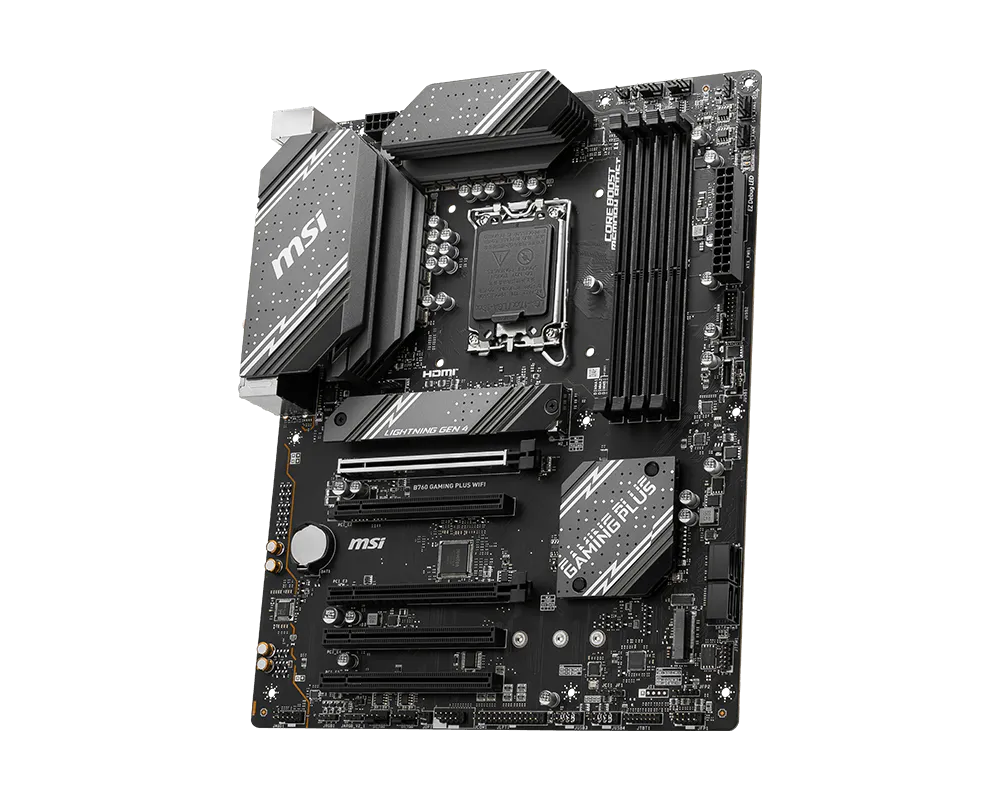

The MSI B760 GAMING PLUS WIFI DDR5 ATX Motherboard is designed for 12th, 13th, and 14th Gen Intel Core processors, Intel Pentium Gold, and Celeron CPUs, featuring the Intel B760 chipset. With support for 4 DDR5 memory slots up to 256GB and speeds up to 6800+ MHz (OC), it ensures high-performance multitasking and gaming with Intel XMP 3.0 support and dual-channel memory architecture.
For graphics, it provides HDMI 2.1, DisplayPort 1.4, and supports integrated GPU outputs. Storage options include 2 M.2 PCIe 4.0/SATA slots and 4 SATA III ports with RAID 0/1/5/10 capability. Networking is boosted with 2.5Gbps LAN and Intel Wi-Fi 6E with Bluetooth 5.3.
Additional features include Realtek ALC897 7.1 HD Audio with S/PDIF, multiple USB ports including 10Gbps Type-A/C, RGB lighting support, TPM 2.0 header, EZ Debug LEDs, and robust fan headers for CPU, pump, and system cooling. Its ATX form factor ensures ample expansion while maintaining reliability for gaming and productivity builds.
