MSI B760M BOMBER WIFI DDR5 LGA1700 Micro-ATX Motherboard

Name: MSI B760M BOMBER WIFI DDR5 LGA1700 Micro-ATX Motherboard
Brand: MSI
SKU: TN-10087
Price: 39500 PKR
Availability: InStock

Manufacturer's page

1 / 4

39,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

Specifications

LAN: 2.5Gbps Ethernet (Realtek RTL8125B)
Audio: Realtek ALC897 7.1 HD Audio
Brand: MSI
Model: B760M BOMBER WIFI DDR5
Chipset: B760
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0/SATA)
RAM Speed: DDR5 6400+ MHz (OC)
USB Ports: • Rear: 1 x USB 10Gbps Type-C, 4 x USB 5Gbps Type-A, 2 x USB 2.0 • Front: 2 x USB 5Gbps Type-A, 4 x USB 2.0
CPU Socket: LGA1700
PCIe Slots: 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – MSI Mystic Light
Memory Slots: 2 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 128 GB
Supported CPUs: Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron

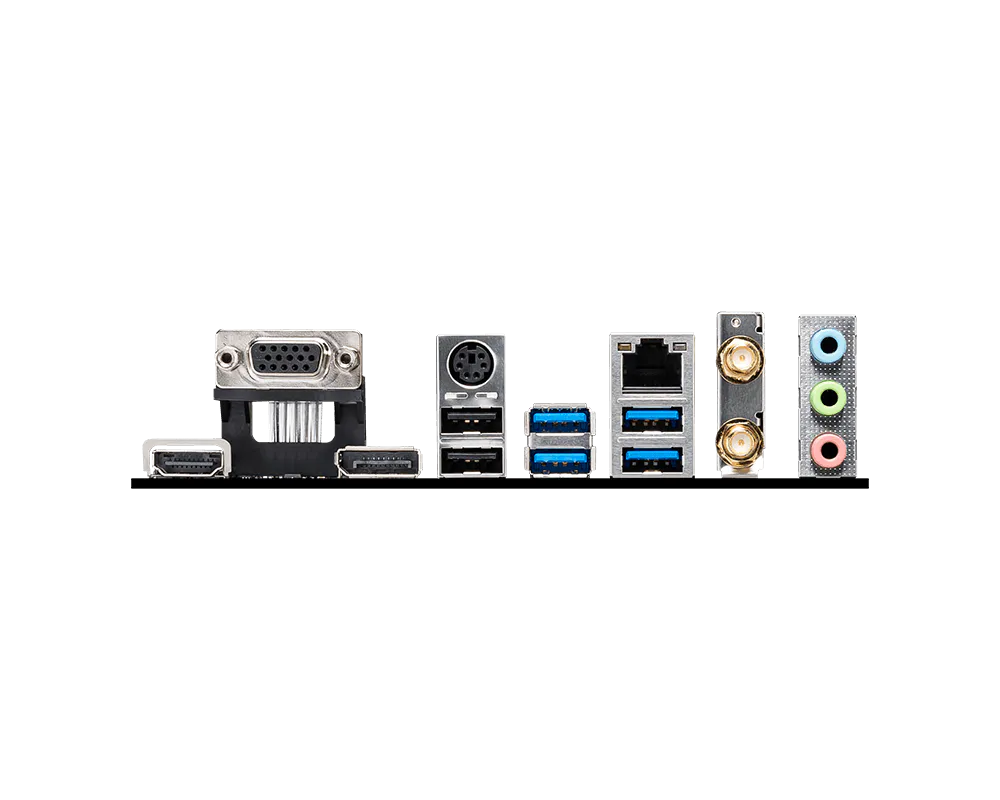

Graphics Output: 1 x HDMI 2.1 1 x DisplayPort 1.4 1 x VGA
Cooling Features: Smart Fan Control with 3 Fan Headers
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 2 x Addressable RGB Headers (JARGB_V2) • 1 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 Headers • 2 x USB 5Gbps Type-A Headers • 3 x Fan Headers • 1 x Com Port • 1 x Front Panel Header • 1 x Chassis Intrusion Header • 1 x Front Audio Header
Wireless Connectivity: Intel Wi-Fi 6E + Bluetooth 5.3

39,500PKR

In stock

10 Months Local Warranty

Keep your invoice to claim

Delivery in 4–5 working days

Safe nationwide delivery

Official store

Direct from brands

About this product

The MSI B760M BOMBER WIFI DDR5 LGA1700 Micro-ATX Motherboard is a high-performance motherboard built for 12th, 13th, and 14th Gen Intel Core processors, as well as Intel Pentium Gold and Celeron CPUs. Featuring the Intel B760 chipset, it supports dual DDR5 memory channels with speeds up to 6400+ MHz (OC) and a maximum capacity of 128GB, optimized for Intel XMP 3.0 and dual-controller dual-channel memory.

For graphics, it offers HDMI 2.1, DisplayPort 1.4, and VGA outputs. Storage options include 2 M.2 PCIe 4.0/SATA slots and 4 SATA III ports, with RAID 0/1/5/10 support. Networking is enhanced with 2.5Gbps LAN and Intel Wi-Fi 6E with Bluetooth 5.3 for ultra-fast wireless connectivity.

Additional features include Realtek ALC897 7.1-channel HD audio, multiple USB ports including 10Gbps Type-C, addressable RGB headers, TPM support, and 4 EZ Debug LEDs for easy troubleshooting. Its mATX form factor fits compact builds while maintaining expandability.

Specifications

LAN

2.5Gbps Ethernet (Realtek RTL8125B)

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

B760M BOMBER WIFI DDR5

Chipset

B760

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0/SATA)

RAM Speed

DDR5 6400+ MHz (OC)

USB Ports

• Rear: 1 x USB 10Gbps Type-C, 4 x USB 5Gbps Type-A, 2 x USB 2.0 • Front: 2 x USB 5Gbps Type-A, 4 x USB 2.0

CPU Socket

LGA1700

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x1

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – MSI Mystic Light

Memory Slots

2 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

128 GB

Supported CPUs

Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron

Graphics Output

1 x HDMI 2.1 1 x DisplayPort 1.4 1 x VGA

Cooling Features

Smart Fan Control with 3 Fan Headers

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 2 x Addressable RGB Headers (JARGB_V2) • 1 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 Headers • 2 x USB 5Gbps Type-A Headers • 3 x Fan Headers • 1 x Com Port • 1 x Front Panel Header • 1 x Chassis Intrusion Header • 1 x Front Audio Header

Wireless Connectivity

Intel Wi-Fi 6E + Bluetooth 5.3
