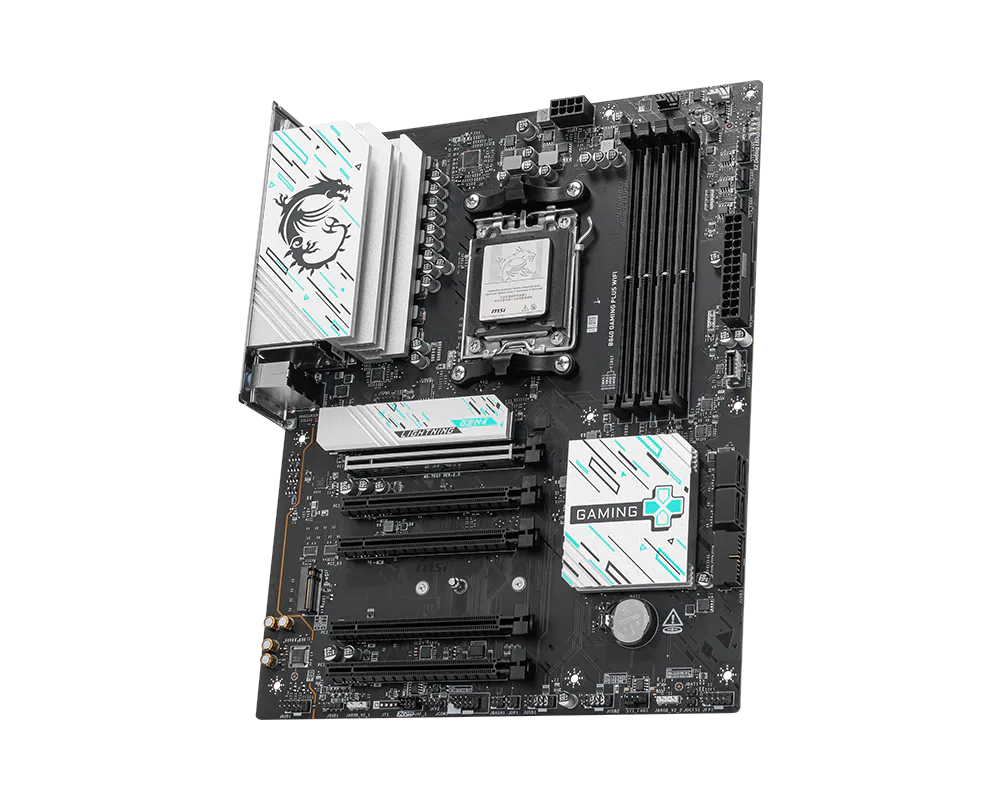

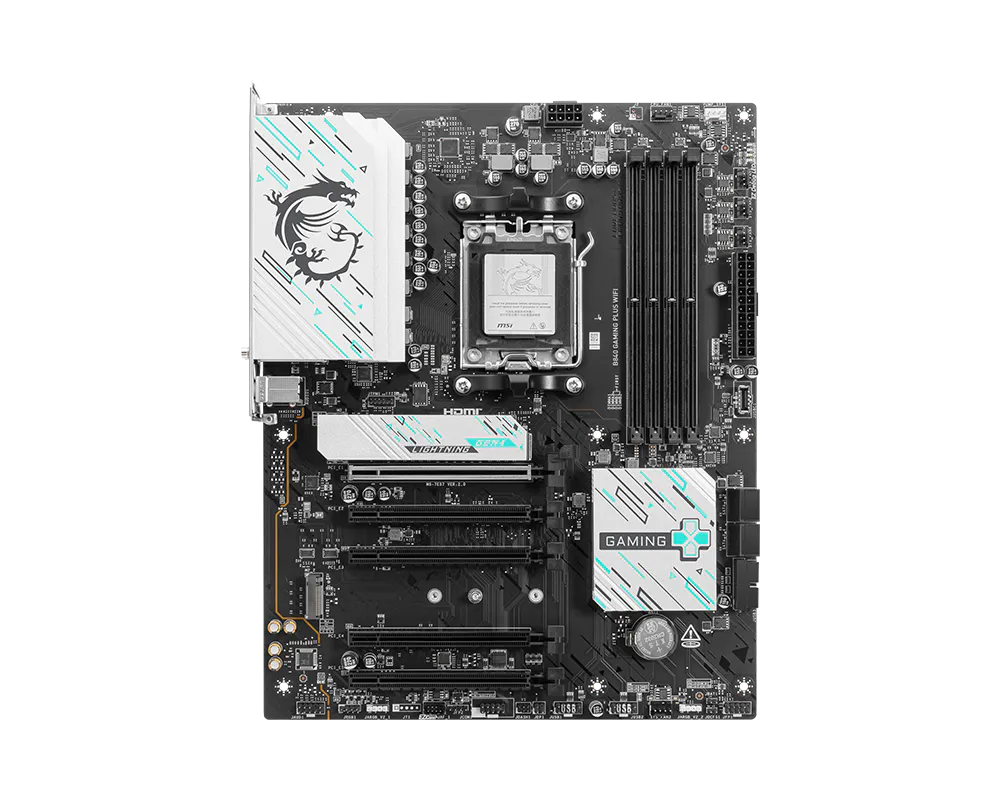

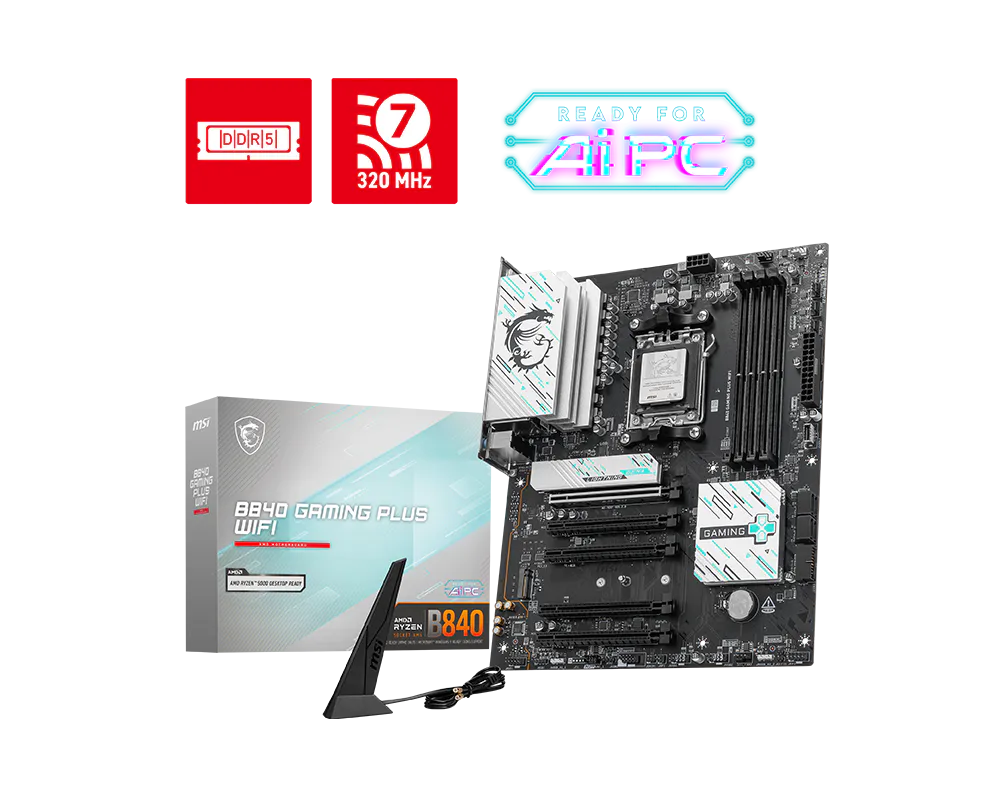

MSI B840 GAMING PLUS WIFI DDR5 AM5 ATX Motherboard

Name: MSI B840 GAMING PLUS WIFI DDR5 AM5 ATX Motherboard
Brand: MSI
SKU: TN-10109
Price: 51499 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

51,499PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC897 7.1 HD Audio
Brand: MSI
Model: B840 GAMING PLUS WIFI DDR5 AM5 ATX Motherboard
Chipset: AMD B840
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0)
RAM Speed: DDR5 8000 – 5600 (OC)

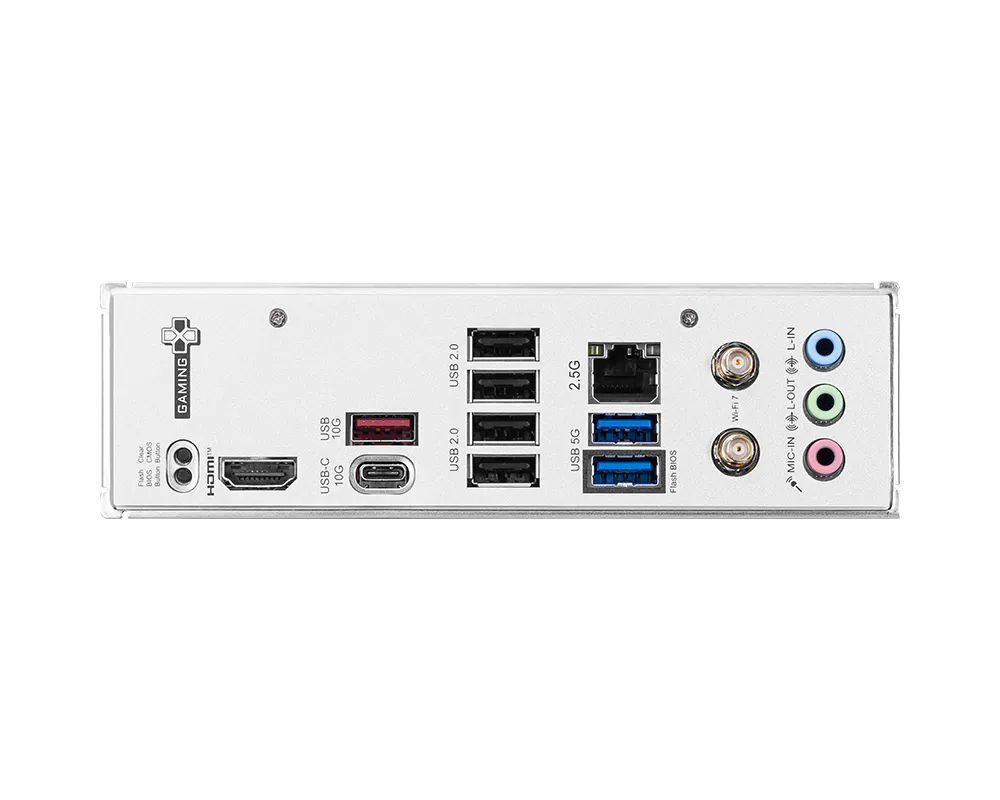

USB Ports: • Rear: 4 x USB 2.0 • Rear: 2 x USB 5Gbps Type-A • Rear: 1 x USB 10Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Front: 4 x USB 2.0 • Front: 2 x USB 5Gbps Type-A • Front: 1 x USB 5Gbps Type-C
CPU Socket: AM5
PCIe Slots: 1 x PCIe 4.0 x16 4 x PCIe 3.0 x1 1 x PCIe 3.0 x4
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Mystic Light
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Graphics Output: 1 x HDMI 2.1
Cooling Features: VRM Heatsinks + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 4 x System Fan • 1 x EZ Conn-header (JAF_1) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Com Port (JCOM) • 1 x Tuning Controller (JDASH) • 2 x Addressable V2 RGB LED (JARGB_V2) • 1 x RGB LED (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 4 x USB 2.0 ports • 2 x USB 5Gbps Type-A ports • 1 x USB 5Gbps Type-C port
Wireless Connectivity: WiFi 7 + Bluetooth 5.4

51,499PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The MSI B840 GAMING PLUS WIFI DDR5 AM5 ATX Motherboard is designed for gamers and enthusiasts who demand high-speed performance and versatile connectivity. Powered by the AMD B840 chipset and supporting AM5 socket Ryzen™ 9000/8000/7000 series processors, this ATX motherboard offers robust VRM power delivery and advanced memory support, making it ideal for overclocking and intensive multitasking workloads.

Equipped with 4 DIMM slots supporting DDR5 memory up to 256 GB, the motherboard delivers blazing-fast performance with speeds up to DDR5 8000 MHz (OC). Storage options are plentiful, including 2 x M.2 slots (PCIe 4.0) and 4 x SATA III ports, with RAID 0, 1, and 10 support. The board also provides 5 PCIe x16 slots and multiple PCIe x1/x4 lanes, giving users flexibility for GPUs, storage expansion, and add-in cards.

Connectivity is next-level with 2.5Gb Ethernet, Wi-Fi 7, and Bluetooth 5.4, while a wide array of USB ports and internal headers support front-panel connections, fan control, and RGB lighting. Enhanced system monitoring is provided by EZ Debug LEDs, and VRM heatsinks maintain optimal temperatures. The MSI B840 GAMING PLUS WIFI DDR5 AM5 ATX Motherboard combines stability, high performance, and cutting-edge features for a future-ready gaming rig.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

B840 GAMING PLUS WIFI DDR5 AM5 ATX Motherboard

Chipset

AMD B840

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0)

RAM Speed

DDR5 8000 – 5600 (OC)

USB Ports

• Rear: 4 x USB 2.0 • Rear: 2 x USB 5Gbps Type-A • Rear: 1 x USB 10Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Front: 4 x USB 2.0 • Front: 2 x USB 5Gbps Type-A • Front: 1 x USB 5Gbps Type-C

CPU Socket

AM5

PCIe Slots

1 x PCIe 4.0 x16 4 x PCIe 3.0 x1 1 x PCIe 3.0 x4

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Graphics Output

1 x HDMI 2.1

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 4 x System Fan • 1 x EZ Conn-header (JAF_1) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Com Port (JCOM) • 1 x Tuning Controller (JDASH) • 2 x Addressable V2 RGB LED (JARGB_V2) • 1 x RGB LED (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 4 x USB 2.0 ports • 2 x USB 5Gbps Type-A ports • 1 x USB 5Gbps Type-C port

Wireless Connectivity

WiFi 7 + Bluetooth 5.4
