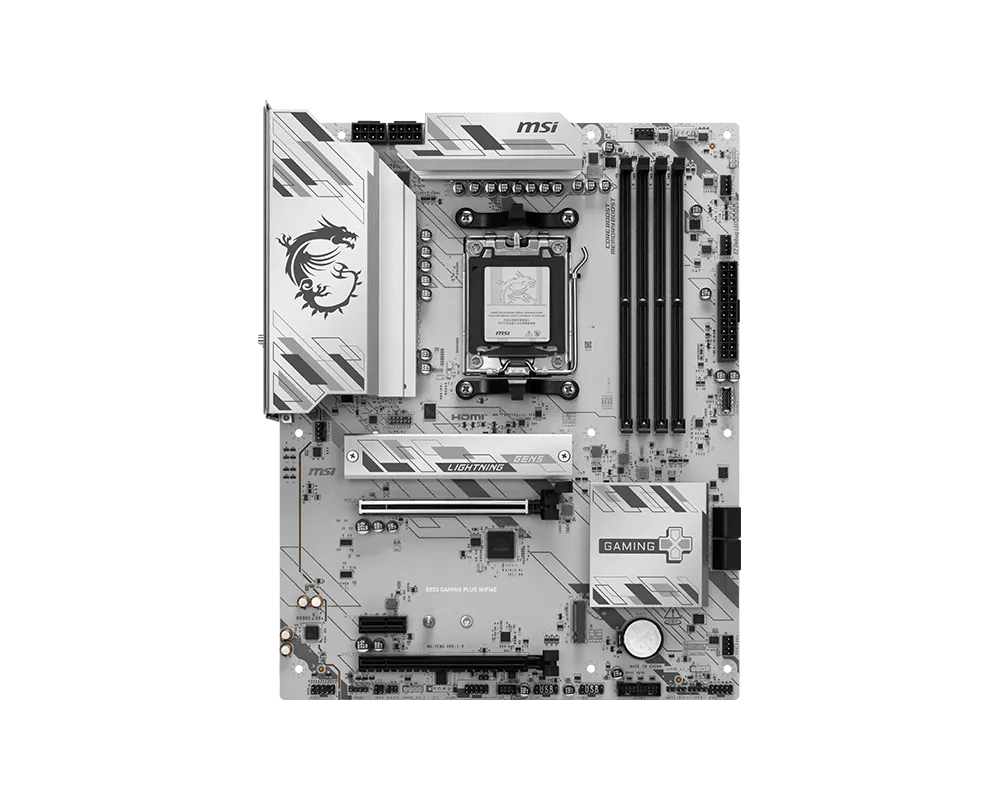

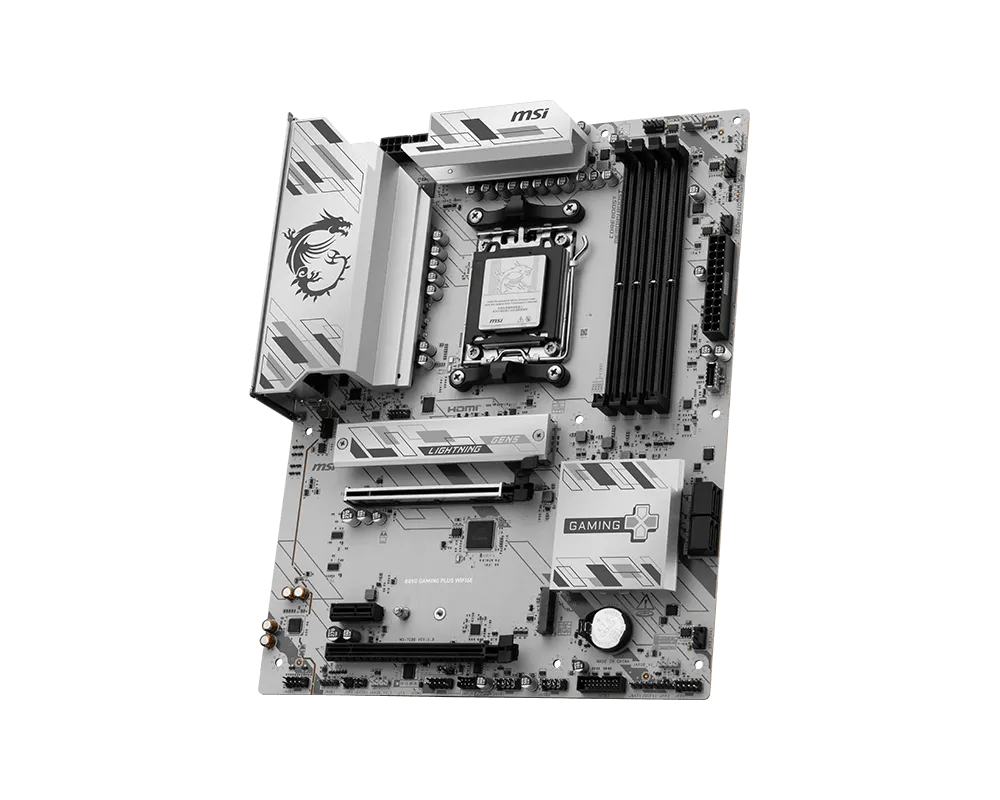

MSI B850 GAMING PLUS WIFI6E DDR5 AM5 ATX Motherboard

Name: MSI B850 GAMING PLUS WIFI6E DDR5 AM5 ATX Motherboard
Brand: MSI
SKU: TN-10111
Price: 68999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

68,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC897 7.1 HD Audio
Brand: MSI
Model: B850 GAMING PLUS WIFI6E DDR5 AM5 ATX Motherboard
Chipset: AMD B850
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4)
RAM Speed: DDR5 8200 – 5600 (OC)
USB Ports: • Rear: 4 x USB 5Gbps Type-A • Rear: 3 x USB 10Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Rear: 1 x USB 5Gbps Type-A • Front: 4 x USB 2.0 • Front: 2 x USB 5Gbps Type-A • Front: 1 x USB 10Gbps Type-C
CPU Socket: AM5
PCIe Slots: 2 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Mystic Light
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0 / PCIe 5.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Graphics Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4
Cooling Features: VRM Heatsinks + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 4 x System Fan • 1 x EZ Conn-header (JAF_1) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Com Port (JCOM) • 1 x Tuning Controller connector (JDASH) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 4 x USB 2.0 ports • 2 x USB 5Gbps Type-A ports • 1 x USB 10Gbps Type-C port
Wireless Connectivity: Wi-Fi 6E + Bluetooth 5.3

68,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The MSI B850 GAMING PLUS WIFI6E DDR5 AM5 ATX Motherboard is engineered for AMD Ryzen™ 9000/8000/7000 series desktop processors, combining high-speed memory support, advanced connectivity, and robust gaming-ready features. With the AMD B850 chipset and AM5 socket, it supports up to 256 GB DDR5 memory at speeds of DDR5 8200 MHz (OC). The board also offers dual-channel memory, AMD EXPO™ overclocking, and PCIe 5.0 support for next-gen storage.

It includes 2 PCIe x16 slots and 1 PCIe x1 slot for GPUs and expansion cards, along with 2 M.2 slots and 4 SATA III ports for storage. Networking features include Wi-Fi 6E, Bluetooth 5.3, and 2.5 Gb LAN. RGB enthusiasts benefit from 3 Addressable V2 RGB headers and 1 RGB header, while EZ Debug LEDs simplify troubleshooting. Back panel connectivity is versatile with USB 10 Gbps Type-A/C, USB 5 Gbps Type-A, DisplayPort 1.4, HDMI 2.1, LAN, and audio ports.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

B850 GAMING PLUS WIFI6E DDR5 AM5 ATX Motherboard

Chipset

AMD B850

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4)

RAM Speed

DDR5 8200 – 5600 (OC)

USB Ports

• Rear: 4 x USB 5Gbps Type-A • Rear: 3 x USB 10Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Rear: 1 x USB 5Gbps Type-A • Front: 4 x USB 2.0 • Front: 2 x USB 5Gbps Type-A • Front: 1 x USB 10Gbps Type-C

CPU Socket

AM5

PCIe Slots

2 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0 / PCIe 5.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Graphics Output

1 x HDMI 2.1, 1 x DisplayPort 1.4

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 4 x System Fan • 1 x EZ Conn-header (JAF_1) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Com Port (JCOM) • 1 x Tuning Controller connector (JDASH) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 4 x USB 2.0 ports • 2 x USB 5Gbps Type-A ports • 1 x USB 10Gbps Type-C port

Wireless Connectivity

Wi-Fi 6E + Bluetooth 5.3

About this product
