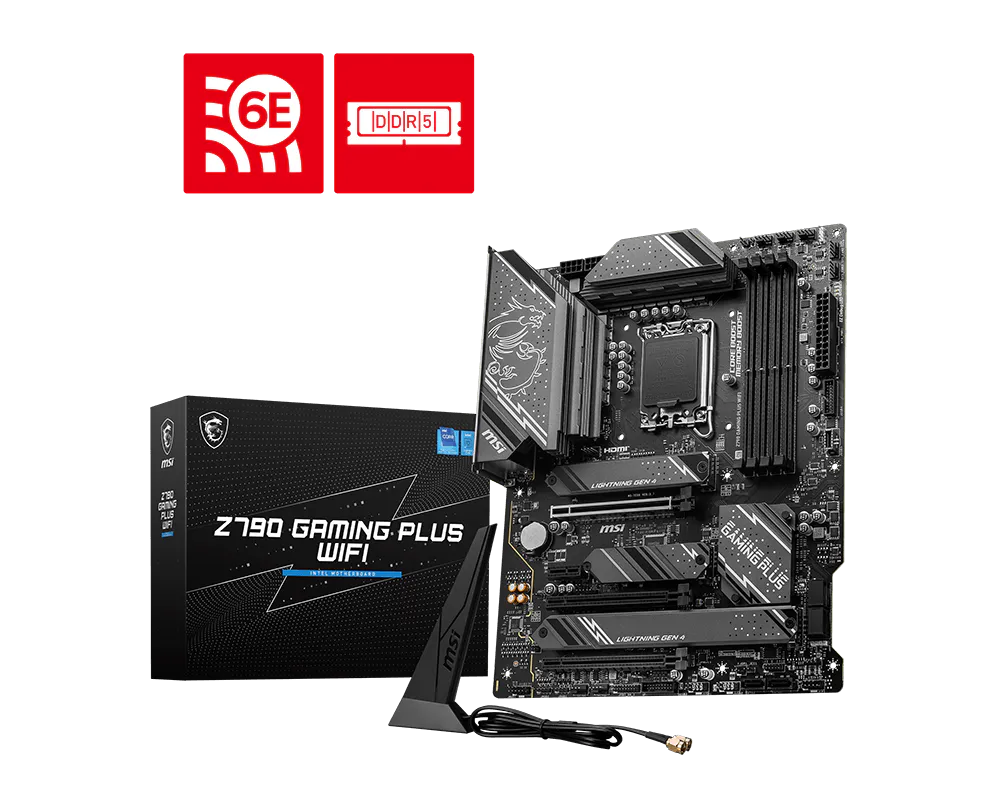

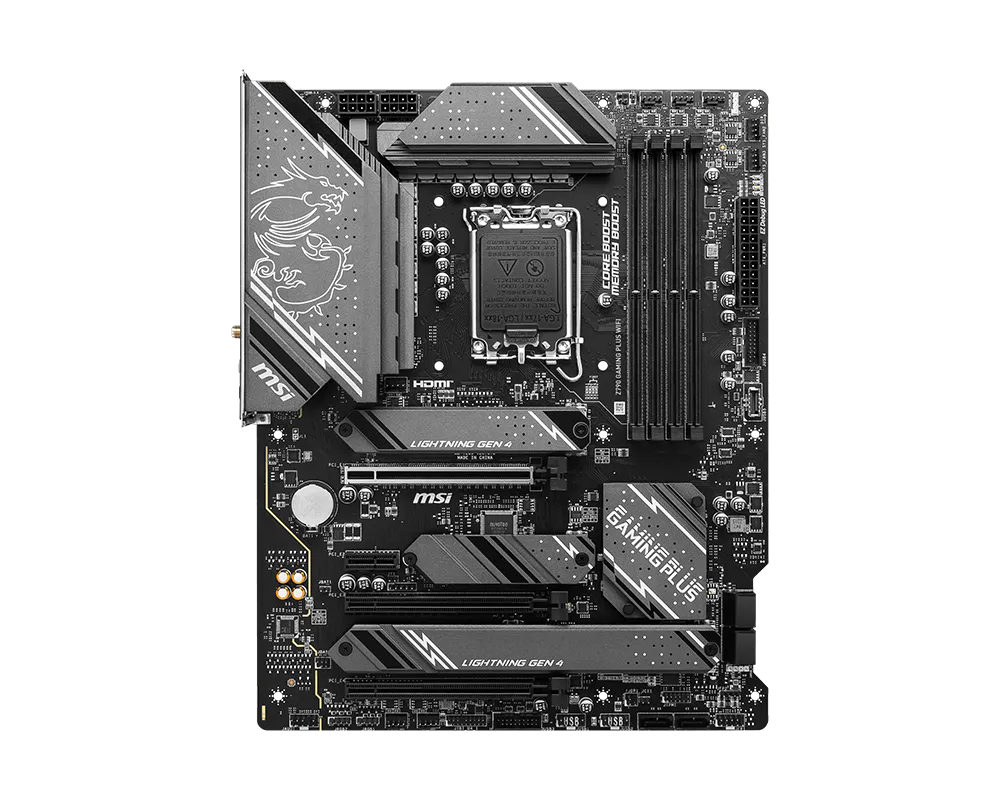

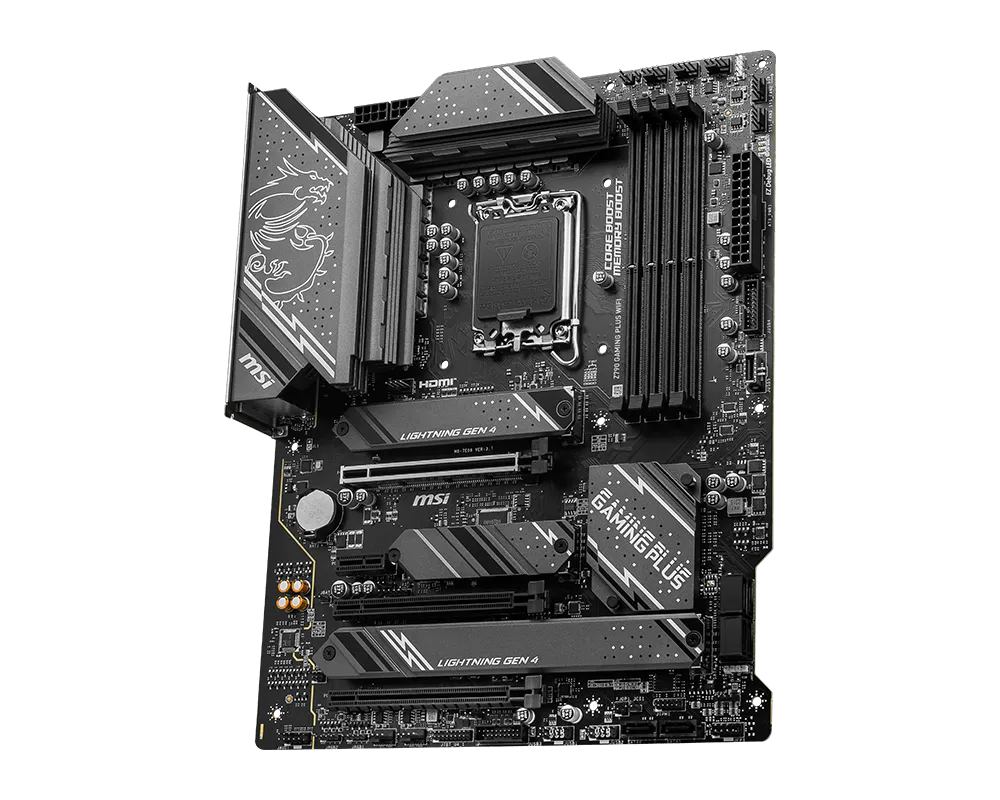

MSI GAMING Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX Motherboard

Name: MSI GAMING Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX Motherboard
Brand: MSI
SKU: TN-10100
Price: 75999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

75,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC897 7.1 HD Audio
Brand: MSI
Model: GAMING Z790 GAMING PLUS WIFI
Chipset: Intel Z790
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 4 x M.2 (PCIe 4.0)
RAM Speed: DDR5 7200+ MHz (OC)

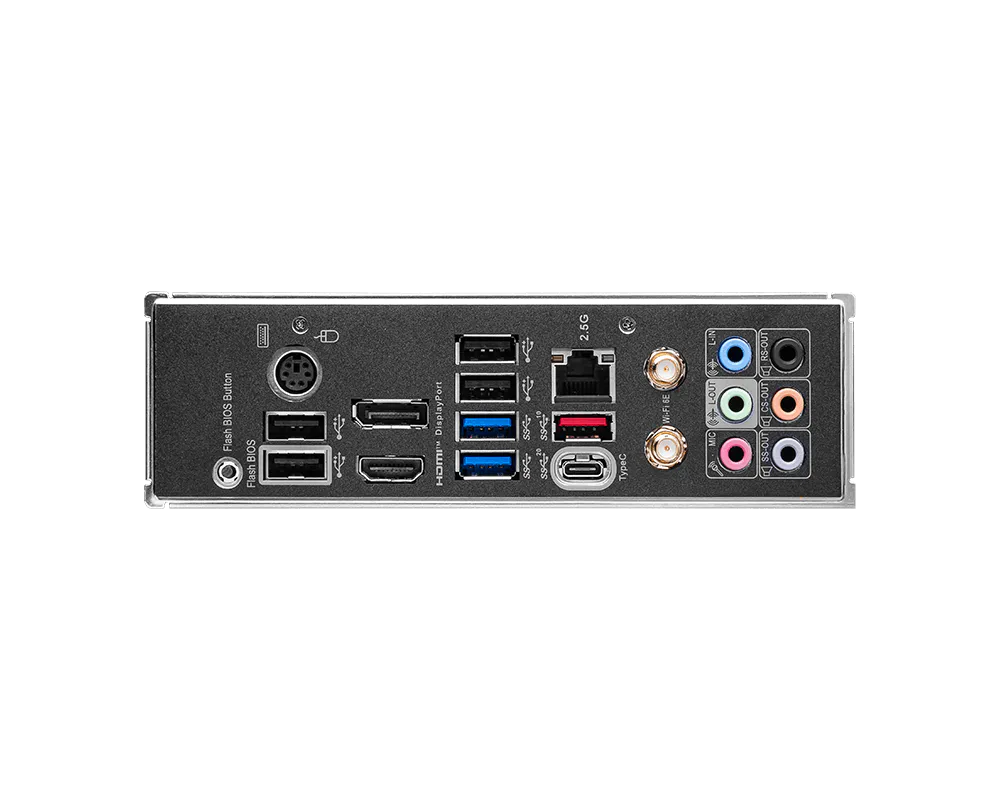

USB Ports: • Rear: 1 x USB 20Gbps Type-C • Rear: 1 x USB 10Gbps Type-A • Rear: 2 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 • Front: 1 x USB 10Gbps Type-C Header • Front: 4 x USB 5Gbps Type-A • Front: 2 x USB 2.0 Headers
CPU Socket: LGA1700
PCIe Slots: 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1
SATA Ports: 6 x SATA III
Form Factor: ATX
RGB Support: Yes – Mystic Light
Memory Slots: 4 x DIMM
PCIe Version: PCIe 5.0
RAM Capacity: 256 GB
Supported CPUs: Intel Core 14th/13th/12th Gen Processors, Pentium Gold, Celeron
Graphics Output: 1 x HDMI 1 x DisplayPort
Cooling Features: Heatsink Design + M.2 Shield + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan Header • 1 x Pump Fan Header • 6 x System Fan Headers • 1 x USB-C Header • 2 x USB 2.0 Headers
Wireless Connectivity: WiFi 6E + Bluetooth 5.3

75,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The MSI GAMING Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX Motherboard is built to deliver reliable high-performance computing for gamers and power users. Powered by the Intel Z790 chipset and supporting 12th, 13th, and 14th Gen Intel Core processors, it offers a solid foundation for modern gaming systems with optimized power delivery and durable components.

With support for DDR5 memory up to 7200+ MHz (OC) and a maximum capacity of 256 GB, the MSI GAMING Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX Motherboard ensures smooth multitasking and fast system responsiveness. Equipped with PCIe 5.0 x16, multiple expansion slots, and four M.2 PCIe 4.0 slots, it provides excellent flexibility for storage and high-speed components.

Connectivity is robust with 2.5Gb Ethernet, integrated WiFi 6E, and a wide array of USB ports including USB 20Gbps Type-C for ultra-fast data transfer. Enhanced with effective cooling solutions, EZ Debug LEDs, and Mystic Light RGB support, the MSI GAMING Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX Motherboard is a dependable and future-ready choice for performance-driven PC builds.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

GAMING Z790 GAMING PLUS WIFI

Chipset

Intel Z790

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (PCIe 4.0)

RAM Speed

DDR5 7200+ MHz (OC)

USB Ports

• Rear: 1 x USB 20Gbps Type-C • Rear: 1 x USB 10Gbps Type-A • Rear: 2 x USB 5Gbps Type-A • Rear: 4 x USB 2.0 • Front: 1 x USB 10Gbps Type-C Header • Front: 4 x USB 5Gbps Type-A • Front: 2 x USB 2.0 Headers

CPU Socket

LGA1700

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

SATA Ports

6 x SATA III

Form Factor

ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 5.0

RAM Capacity

256 GB

Supported CPUs

Intel Core 14th/13th/12th Gen Processors, Pentium Gold, Celeron

Graphics Output

1 x HDMI 1 x DisplayPort

Cooling Features

Heatsink Design + M.2 Shield + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan Header • 1 x Pump Fan Header • 6 x System Fan Headers • 1 x USB-C Header • 2 x USB 2.0 Headers

Wireless Connectivity

WiFi 6E + Bluetooth 5.3
