| Brand | MSI |
| Model | MAG B650 TOMAHAWK WIFI |
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| Form Factor | ATX |
| Supported CPUs | AMD Ryzen 9000/8000/7000 Series Processors |
| RAM Type | DDR5 |
| RAM Capacity | 256 GB |
| RAM Speed | DDR5 7600+ MHz (OC) |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 4.0 / 3.0 |
| PCIe Slots | 2 x PCIe x16 1 x PCIe 3.0 x1 |
| M.2 Slots | 3 x M.2 (PCIe 4.0 x4, M2_3 runs x2 when shared) |
| SATA Ports | 6 x SATA III |
| Graphics Output | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| LAN | 2.5Gb Ethernet |
| Wireless Connectivity | Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC4080 7.1 HD Audio with S/PDIF |

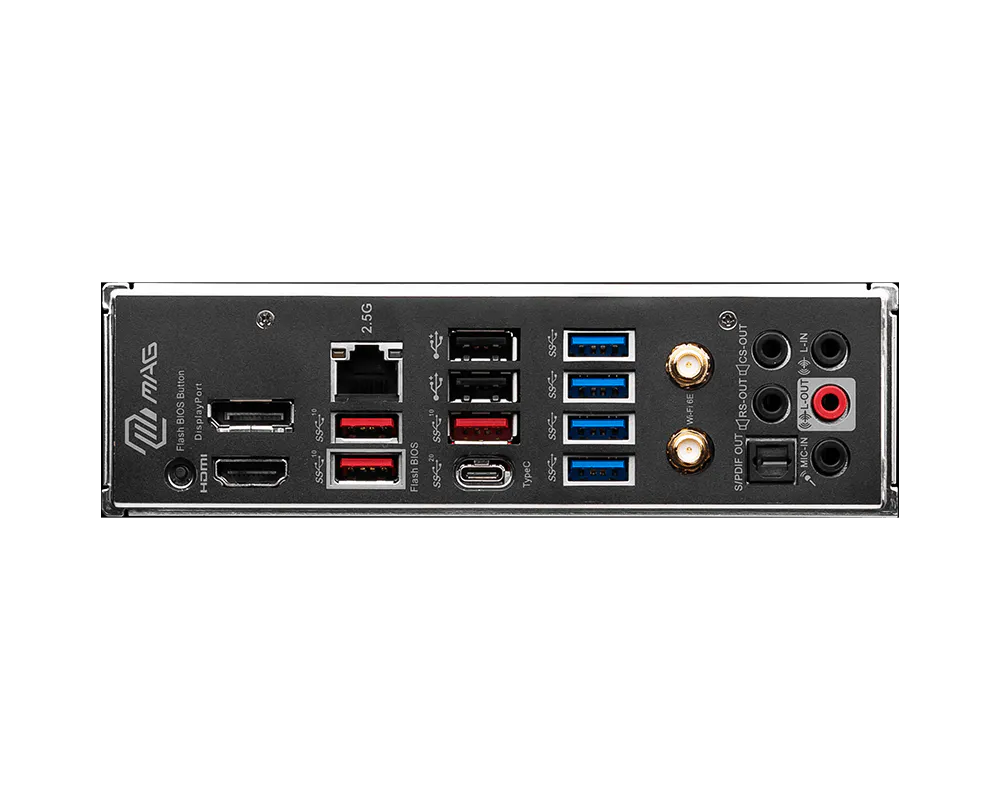

| USB Ports | • Rear: 3 x USB 10Gbps Type-A • Rear: 1 x USB 20Gbps Type-C • Rear: 4 x USB 5Gbps Type-A • Front: 1 x USB 10Gbps Type-C • Front: 2 x USB 5Gbps Type-A • Front: 4 x USB 2.0 |
| Internal Headers | • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Pump Fan • 6 x System Fan • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Tuning Controller (JDASH) • 2 x Addressable RGB Header (JARGB_V2) • 2 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C |
| Cooling Features | VRM Heatsinks + Smart Fan Control |
| RGB Support | Yes – RGB Fusion |
| Warranty | 10 Months Local Warranty |

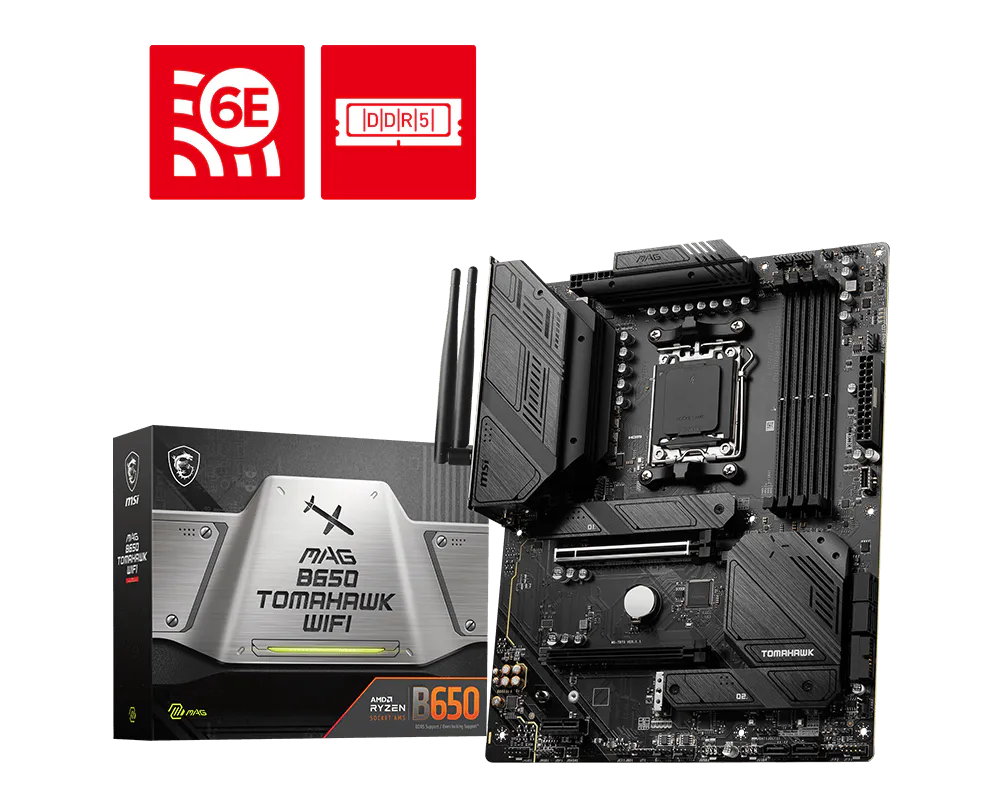

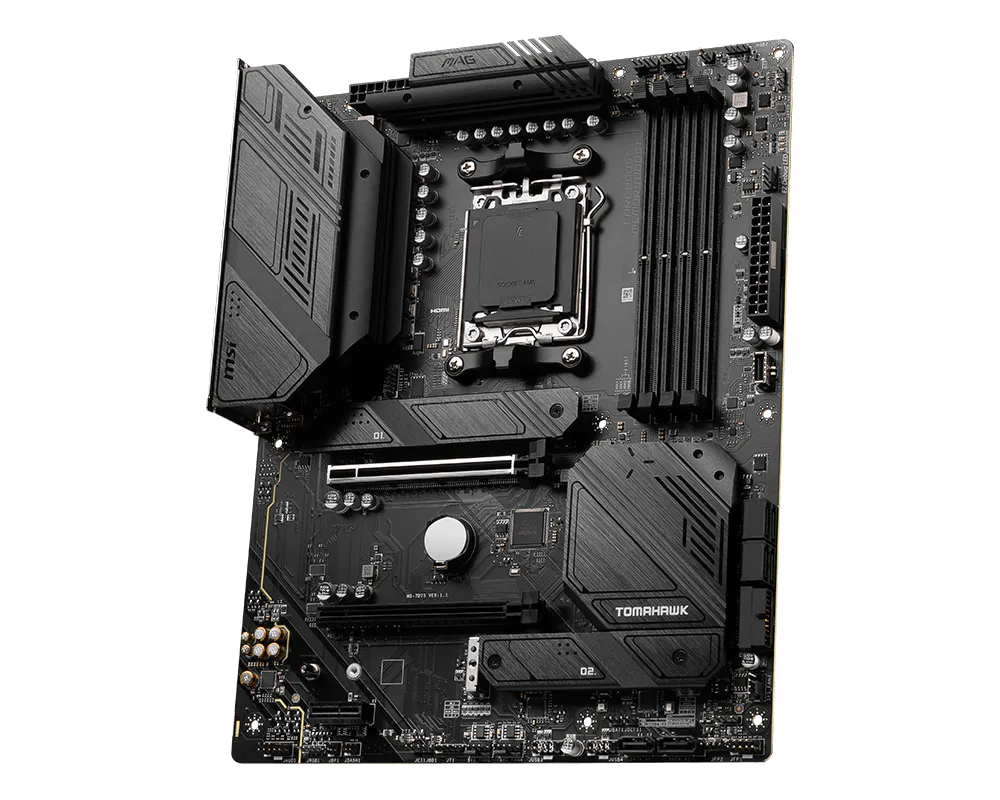

The MSI MAG B650 TOMAHAWK WIFI DDR5 AM5 ATX Motherboard is designed for high-performance AMD builds, offering advanced features for gaming, content creation, and multitasking. Based on the AMD B650 chipset and AM5 socket, it supports AMD Ryzen 9000, 8000, and 7000 series processors, delivering robust power and stability.
Equipped with four DDR5 DIMM slots supporting up to 256 GB at 7600+ MHz (OC), it enables extreme memory performance. Expansion options include dual PCIe x16 slots, a PCIe x1 slot, and three M.2 NVMe slots plus six SATA III ports, providing flexibility for storage and graphics setups, with AMD Multi-GPU support for enhanced gaming or professional workloads.
Connectivity is extensive with Wi-Fi 6E, Bluetooth 5.3, 2.5Gb Ethernet, multiple high-speed USB ports including USB 10Gbps Type-A and 20Gbps Type-C, and integrated display outputs (HDMI 2.1 and DisplayPort 1.4 up to 8K). Internal headers support fans, pumps, RGB lighting, and tuning controllers, with EZ Debug LEDs for easy troubleshooting. High-end Realtek ALC4080 7.1 audio codec ensures immersive sound for gaming and media.
The MSI MAG B650 TOMAHAWK WIFI DDR5 AM5 ATX Motherboard combines premium features, advanced connectivity, and superior build quality for demanding PC enthusiasts.
