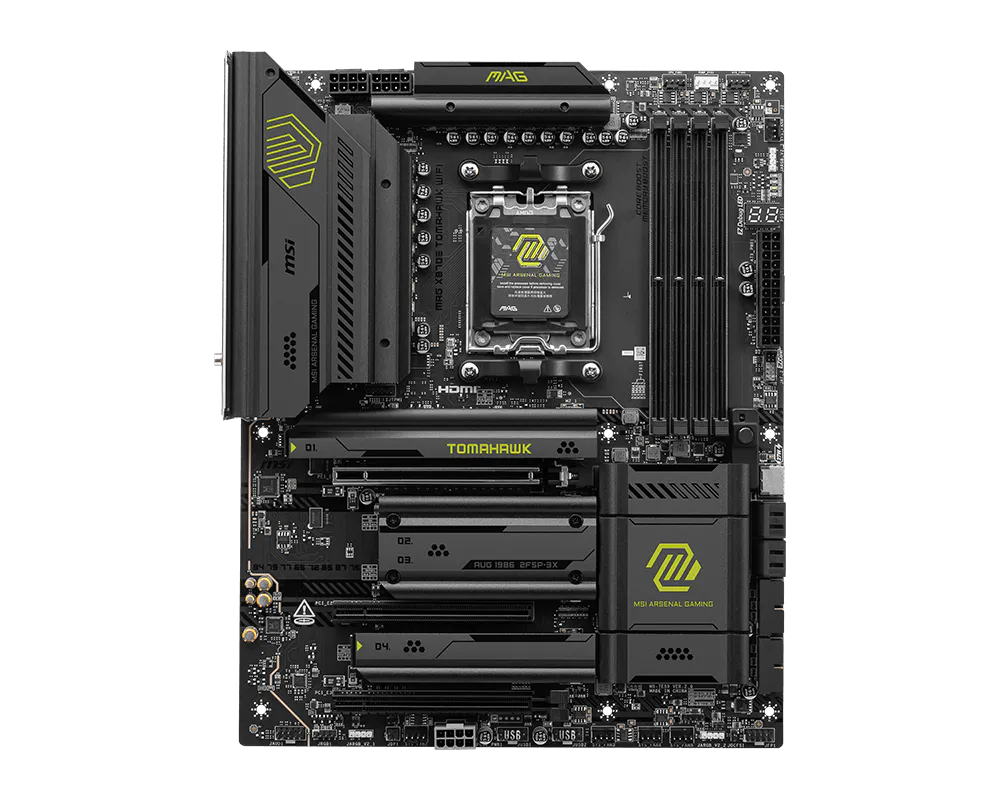

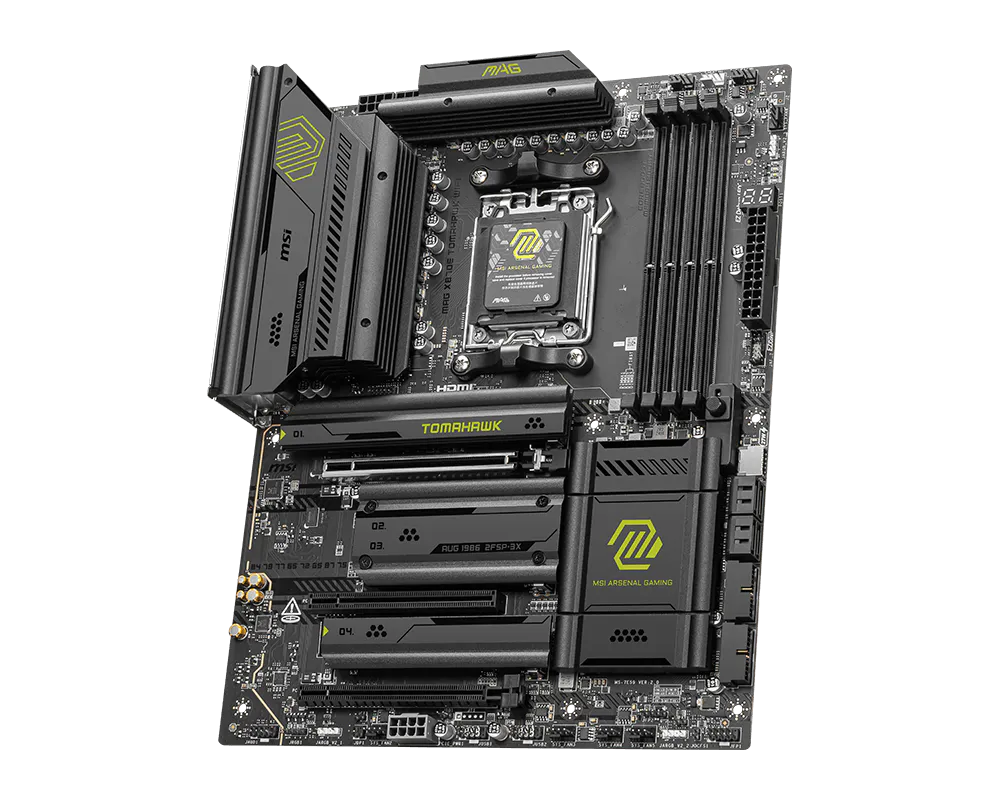

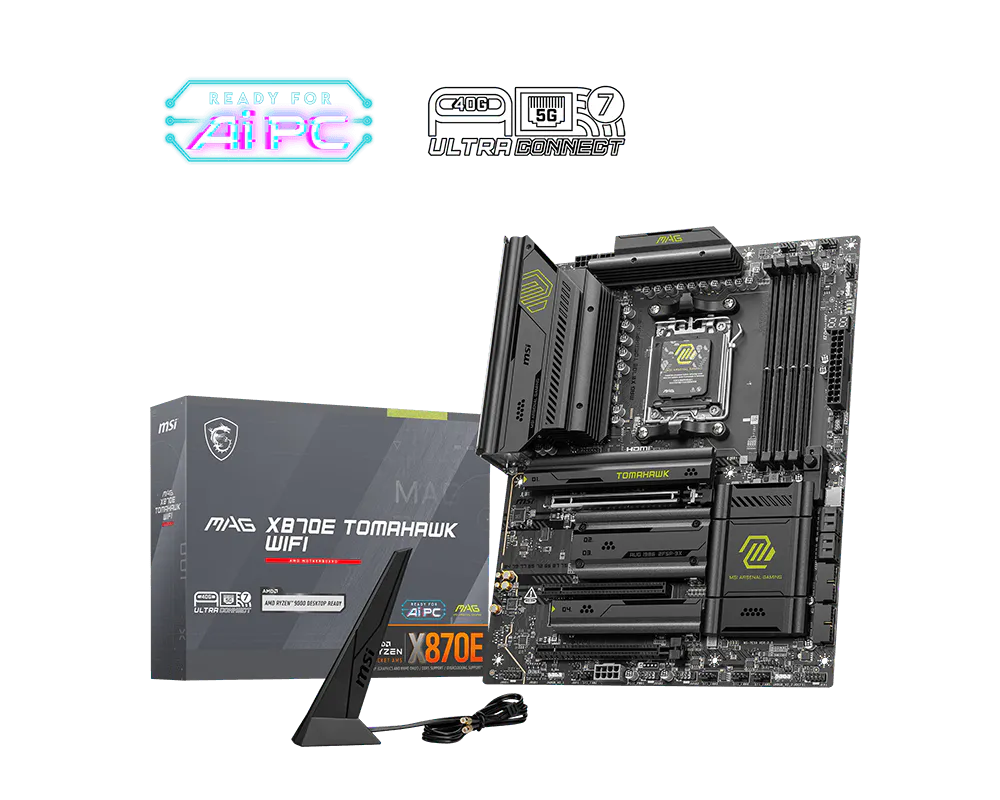

MSI MAG X870E TOMAHAWK WIFI DDR5 AM5 ATX Motherboard

Name: MSI MAG X870E TOMAHAWK WIFI DDR5 AM5 ATX Motherboard
Brand: MSI
SKU: TN-10114
Price: 118999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

118,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 5Gb Ethernet
Audio: Realtek ALC4080 7.1 USB High-Performance Audio
Brand: MSI
Model: MAG X870E TOMAHAWK WIFI DDR5 AM5 ATX Motherboard
Chipset: AMD X870E
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 4 x M.2 (M.2_1 & M.2_2 PCIe 5.0 x4, M.2_3 & M.2_4 PCIe 4.0 x4)
RAM Speed: DDR5 8400 – 5600 (OC)

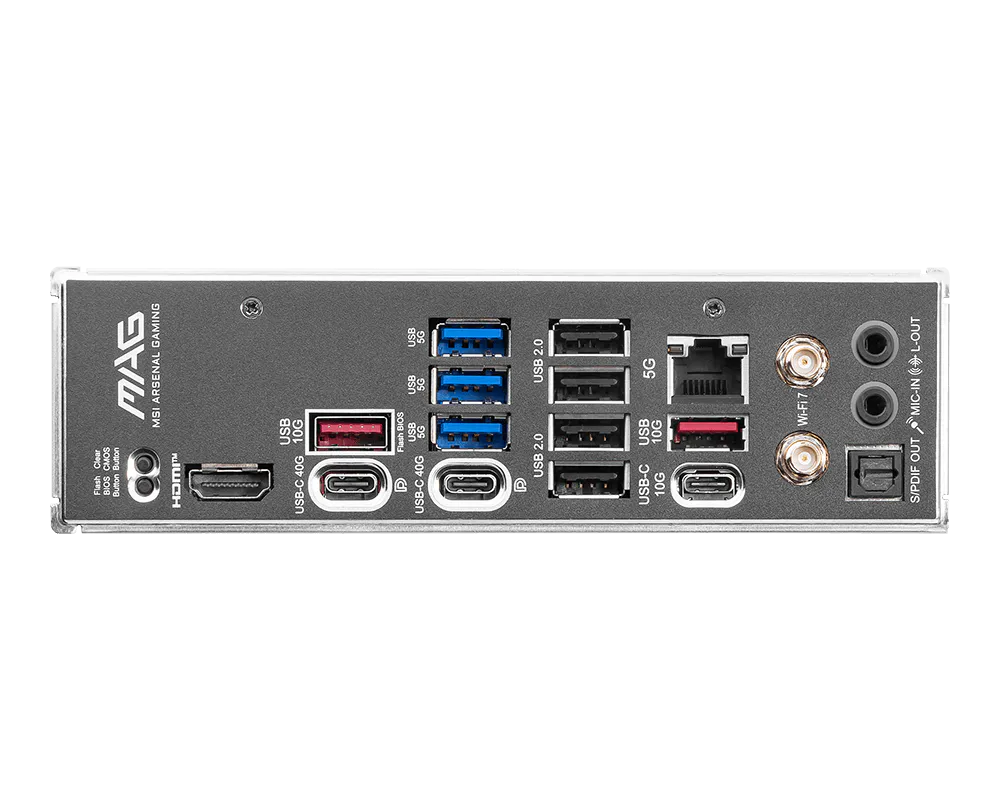

USB Ports: • Rear: 4 x USB 2.0 • Rear: 3 x USB 5Gbps Type-A • Rear: 2 x USB 10Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Rear: 2 x USB 40Gbps Type-C • Front: 4 x USB 2.0 • Front: 4 x USB 5Gbps Type-A • Front: 1 x USB 20Gbps Type-C
CPU Socket: AM5
PCIe Slots: 3 x PCIe x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Mystic Light
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0 / PCIe 5.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Graphics Output: 1 x HDMI 2.1 (8K 60Hz), 2 x Type-C DisplayPort (USB4)
Cooling Features: VRM Heatsinks + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 6 x System Fan • 1 x EZ Conn-header (JAF_2) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 4 x USB 2.0 ports • 4 x USB 5Gbps Type-A ports • 1 x USB 20Gbps Type-C port
Wireless Connectivity: Wi-Fi 7 + Bluetooth 5.4

118,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The MSI MAG X870E TOMAHAWK WIFI DDR5 AM5 ATX Motherboard is a premium motherboard for AMD Ryzen™ 9000/8000/7000 Series processors with the AMD X870E chipset. It supports up to 256 GB DDR5 memory with speeds up to DDR5 8400 MHz (OC) and dual-channel mode, offering robust overclocking potential.

It features 4 M.2 slots (two from CPU supporting PCIe 5.0), 3 PCIe x16 slots, and comprehensive storage options including SATA and NVMe RAID. The board also comes with HDMI 2.1 8K support, USB4 Type-C DisplayPort, and high-speed connectivity including USB 40 Gbps Type-C, USB 20 Gbps Type-C, and USB 10 Gbps Type-A ports.

Networking is top-tier with Wi-Fi 7, Bluetooth 5.4, and 5 Gb Ethernet LAN. Audio is handled by Realtek ALC4080 for high-resolution 7.1-channel playback. RGB customization is supported via 3 Addressable V2 headers and 1 RGB header, along with diagnostic EZ Debug LEDs.

Specifications

LAN

5Gb Ethernet

Audio

Realtek ALC4080 7.1 USB High-Performance Audio

Brand

MSI

Model

MAG X870E TOMAHAWK WIFI DDR5 AM5 ATX Motherboard

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (M.2_1 & M.2_2 PCIe 5.0 x4, M.2_3 & M.2_4 PCIe 4.0 x4)

RAM Speed

DDR5 8400 – 5600 (OC)

USB Ports

• Rear: 4 x USB 2.0 • Rear: 3 x USB 5Gbps Type-A • Rear: 2 x USB 10Gbps Type-A • Rear: 1 x USB 10Gbps Type-C • Rear: 2 x USB 40Gbps Type-C • Front: 4 x USB 2.0 • Front: 4 x USB 5Gbps Type-A • Front: 1 x USB 20Gbps Type-C

CPU Socket

AM5

PCIe Slots

3 x PCIe x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0 / PCIe 5.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Graphics Output

1 x HDMI 2.1 (8K 60Hz), 2 x Type-C DisplayPort (USB4)

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 6 x System Fan • 1 x EZ Conn-header (JAF_2) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 4 x USB 2.0 ports • 4 x USB 5Gbps Type-A ports • 1 x USB 20Gbps Type-C port

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4
