MSI MPG X870E CARBON WIFI DDR5 AM5 ATX Motherboard

Name: MSI MPG X870E CARBON WIFI DDR5 AM5 ATX Motherboard
Brand: MSI
SKU: TN-10115
Price: 157999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

157,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 1 x 5Gb Ethernet (Realtek 8126), 1 x 2.5Gb Ethernet (Realtek 8125)
Audio: Realtek ALC4080 7.1 USB High-Performance Audio
Brand: MSI
Model: MPG X870E CARBON WIFI DDR5 AM5 ATX Motherboard
Chipset: AMD X870E
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 4 x M.2 (M.2_1 & M.2_2 PCIe 5.0 x4, M.2_3 & M.2_4 PCIe 4.0 x4)
RAM Speed: DDR5 9000 – 5600 (OC)

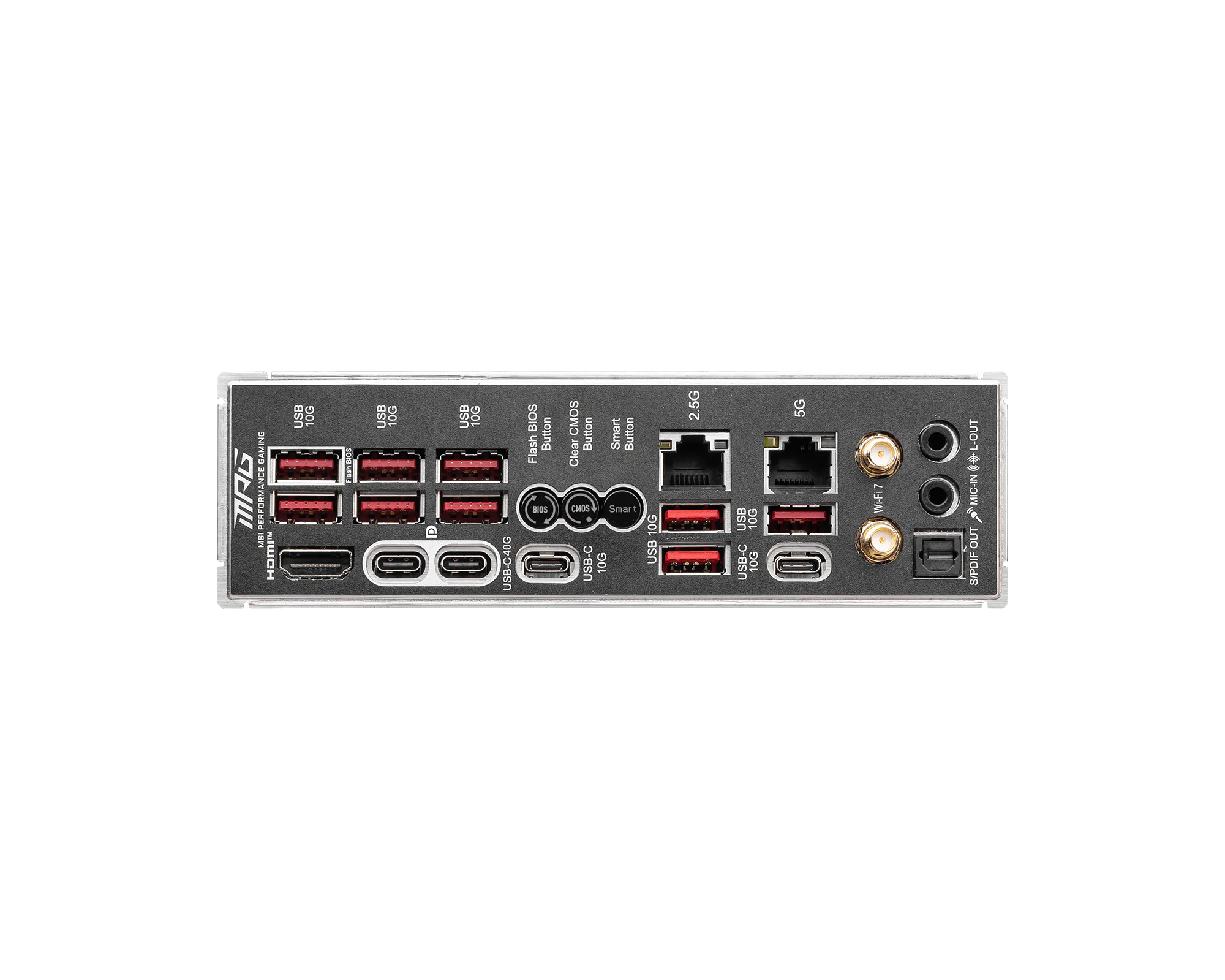

USB Ports: • Rear: 9 x USB 10Gbps Type-A • Rear: 2 x USB 10Gbps Type-C • Rear: 2 x USB 40Gbps Type-C • Rear: Flash BIOS / Clear CMOS / Smart Button / HDMI / Audio / LAN / Wi-Fi / Optical S/PDIF Out • Front: 4 x USB 2.0 • Front: 4 x USB 5Gbps Type-A • Front: 1 x USB 20Gbps Type-C
CPU Socket: AM5
PCIe Slots: 3 x PCIe x16 (PCI_E1 & PCI_E2: PCIe 5.0/x16/x8) 1 x PCIe 4.0 x4 (PCI_E3)
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – Mystic Light
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0 / PCIe 5.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Graphics Output: 1 x HDMI 2.1 (8K 60Hz), 2 x Type-C DisplayPort (USB4)
Cooling Features: VRM Heatsinks + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 5 x System Fan • 1 x EZ Conn-header (JAF_2) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Thermal Sensor connector (T_SEN) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 4 x USB 2.0 ports • 4 x USB 5Gbps Type-A ports • 1 x USB 20Gbps Type-C port
Wireless Connectivity: Wi-Fi 7 + Bluetooth 5.4

157,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

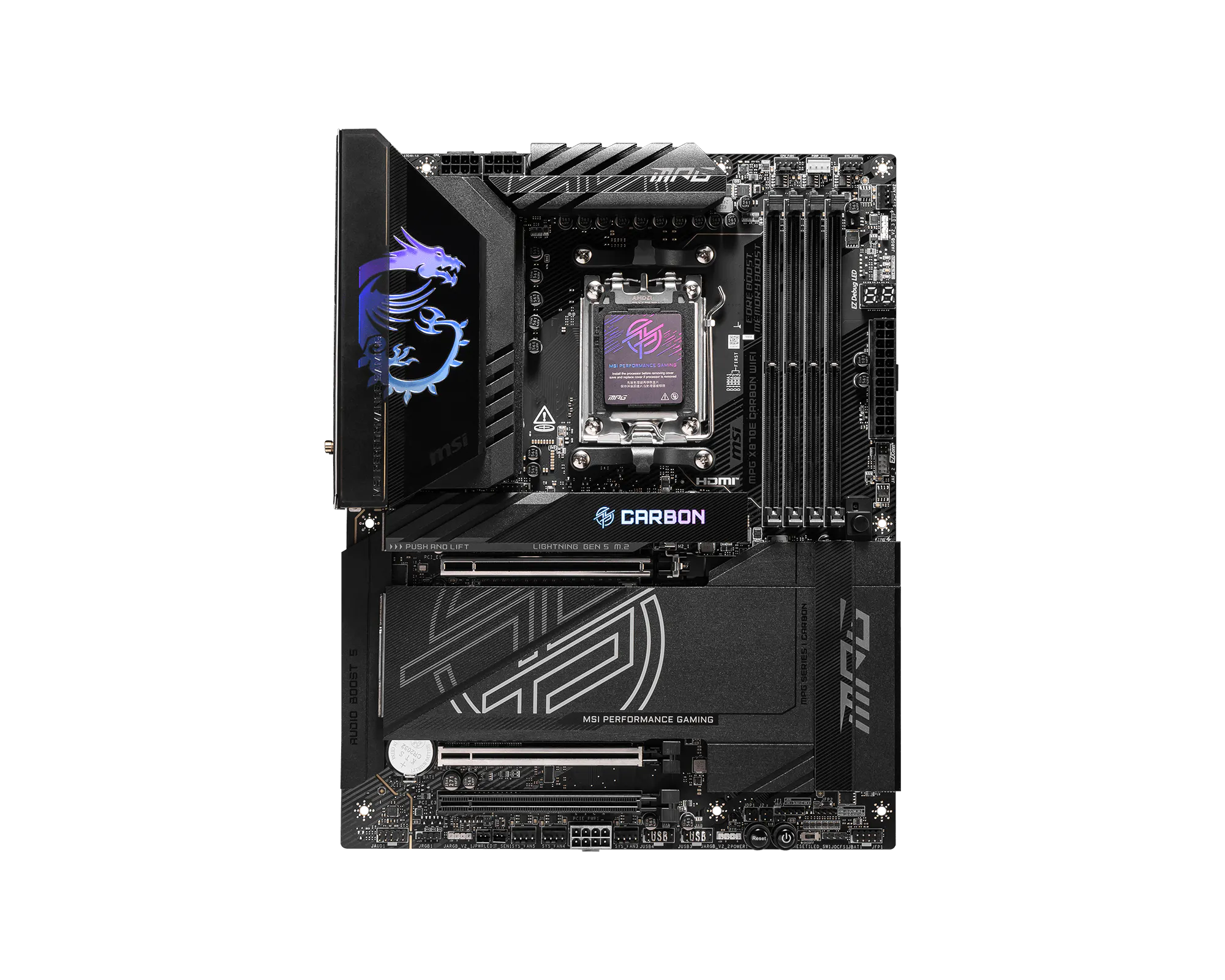

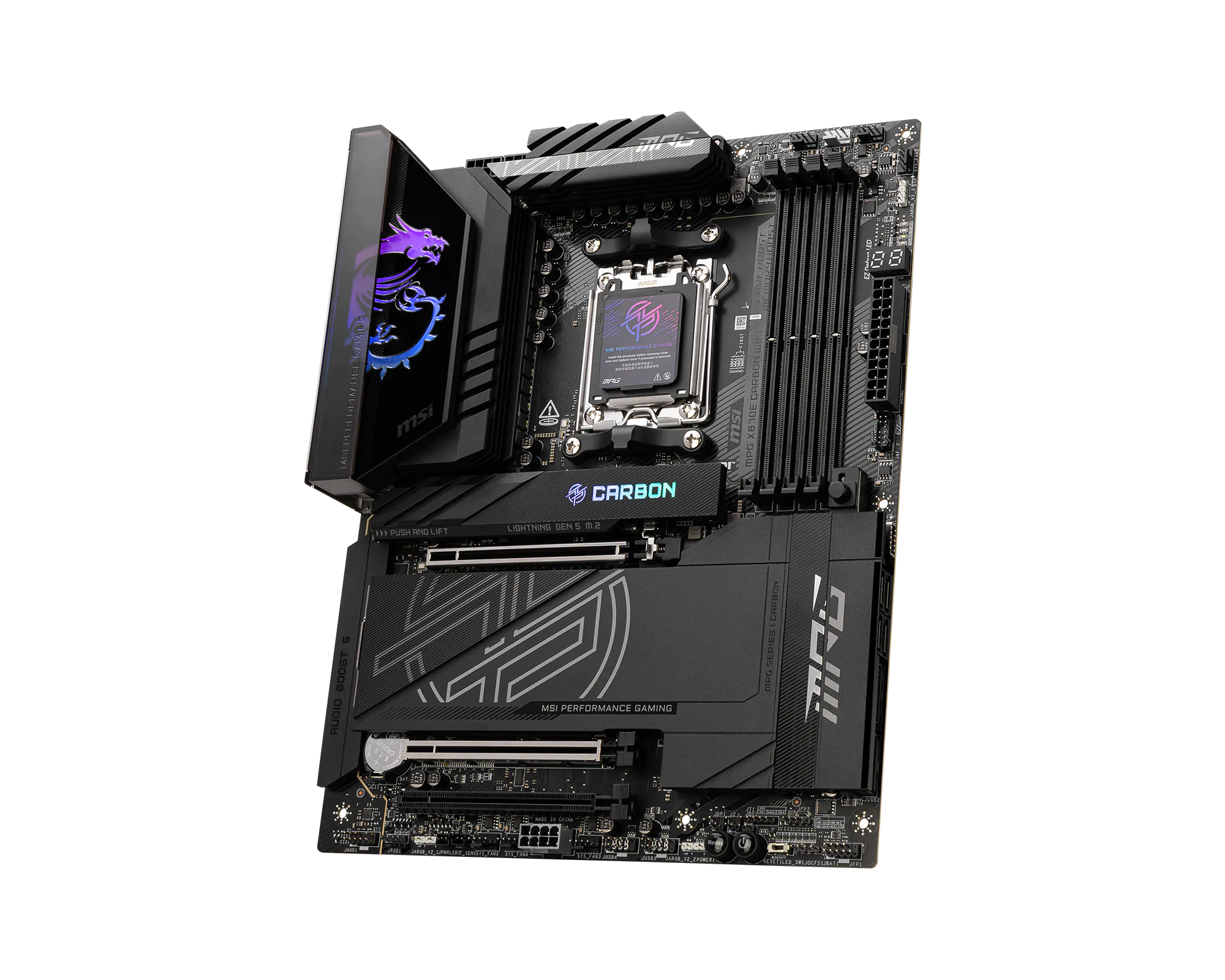

The MSI MPG X870E CARBON WIFI DDR5 AM5 ATX Motherboard is a high-end board designed for AMD Ryzen™ 9000/8000/7000 Series processors with the AMD X870E chipset. It supports up to 256 GB DDR5 memory with speeds up to DDR5 9000 MHz (OC) and dual-channel mode, making it ideal for extreme memory overclocking.

This motherboard offers 4 M.2 slots (two PCIe 5.0 from CPU), 3 PCIe x16 slots, SATA storage, and RAID configurations for maximum flexibility. Graphics options include HDMI 2.1 8K and USB4 Type-C DisplayPort. Connectivity is extensive with USB 40 Gbps Type-C, USB 20 Gbps Type-C, USB 10 Gbps Type-A/C, dual LAN (5 G + 2.5 G), Wi-Fi 7, and Bluetooth 5.4.

Audio is powered by the Realtek ALC4080 codec for high-resolution 7.1-channel playback. RGB enthusiasts will enjoy 3 Addressable V2 headers, 1 RGB header, and system monitoring with EZ Debug LEDs.

Specifications

LAN

1 x 5Gb Ethernet (Realtek 8126), 1 x 2.5Gb Ethernet (Realtek 8125)

Audio

Realtek ALC4080 7.1 USB High-Performance Audio

Brand

MSI

Model

MPG X870E CARBON WIFI DDR5 AM5 ATX Motherboard

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

4 x M.2 (M.2_1 & M.2_2 PCIe 5.0 x4, M.2_3 & M.2_4 PCIe 4.0 x4)

RAM Speed

DDR5 9000 – 5600 (OC)

USB Ports

• Rear: 9 x USB 10Gbps Type-A • Rear: 2 x USB 10Gbps Type-C • Rear: 2 x USB 40Gbps Type-C • Rear: Flash BIOS / Clear CMOS / Smart Button / HDMI / Audio / LAN / Wi-Fi / Optical S/PDIF Out • Front: 4 x USB 2.0 • Front: 4 x USB 5Gbps Type-A • Front: 1 x USB 20Gbps Type-C

CPU Socket

AM5

PCIe Slots

3 x PCIe x16 (PCI_E1 & PCI_E2: PCIe 5.0/x16/x8) 1 x PCIe 4.0 x4 (PCI_E3)

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0 / PCIe 5.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Graphics Output

1 x HDMI 2.1 (8K 60Hz), 2 x Type-C DisplayPort (USB4)

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 5 x System Fan • 1 x EZ Conn-header (JAF_2) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Thermal Sensor connector (T_SEN) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 4 x USB 2.0 ports • 4 x USB 5Gbps Type-A ports • 1 x USB 20Gbps Type-C port

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4
