| Brand | MSI |
| Model | PRO A620AM-B EVO |
| Chipset | AMD A620A |
| CPU Socket | AM5 |
| Form Factor | Micro-ATX |
| Supported CPUs | AMD Ryzen 9000/8000/7000 Series Processors |
| RAM Type | DDR5 |
| RAM Capacity | 128 GB |
| RAM Speed | DDR5 6800+ MHz (OC) |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 |
| M.2 Slots | 1 x M.2 (PCIe 4.0) |
| SATA Ports | 2 x SATA III |
| Graphics Output | 1 x HDMI 2.1 1 x VGA |
| LAN | 2.5Gb Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek ALC897 7.1 HD Audio |

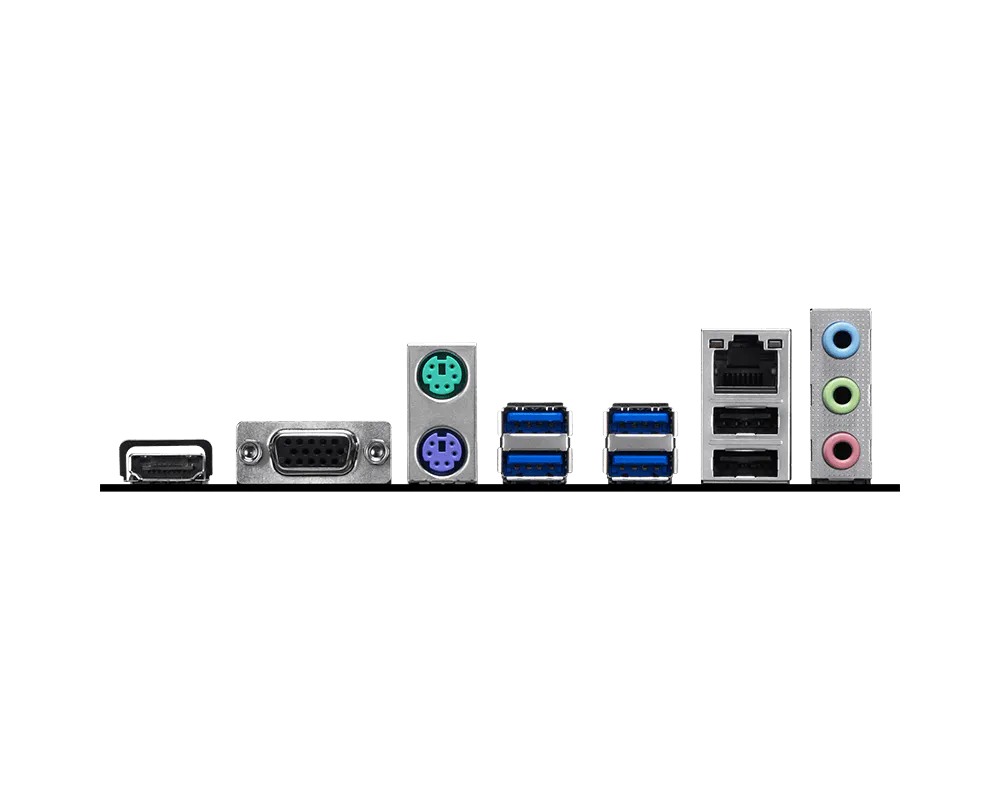

| USB Ports | • Rear: 4 x USB 5Gbps Type-A • Rear: 2 x USB 2.0 • Front: 2 x USB 5Gbps Type-A • Front: 4 x USB 2.0 • Front: 1 x USB 5Gbps Type-C |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x CPU Fan • 2 x System Fan • 1 x Addressable RGB Header • 1 x RGB Header • 1 x TPM Header • 2 x USB 5Gbps Type-A • 4 x USB 2.0 |
| Cooling Features | VRM Heatsinks + Smart Fan Control |
| RGB Support | Yes – RGB Fusion |
| Warranty | 10 Months Local Warranty |

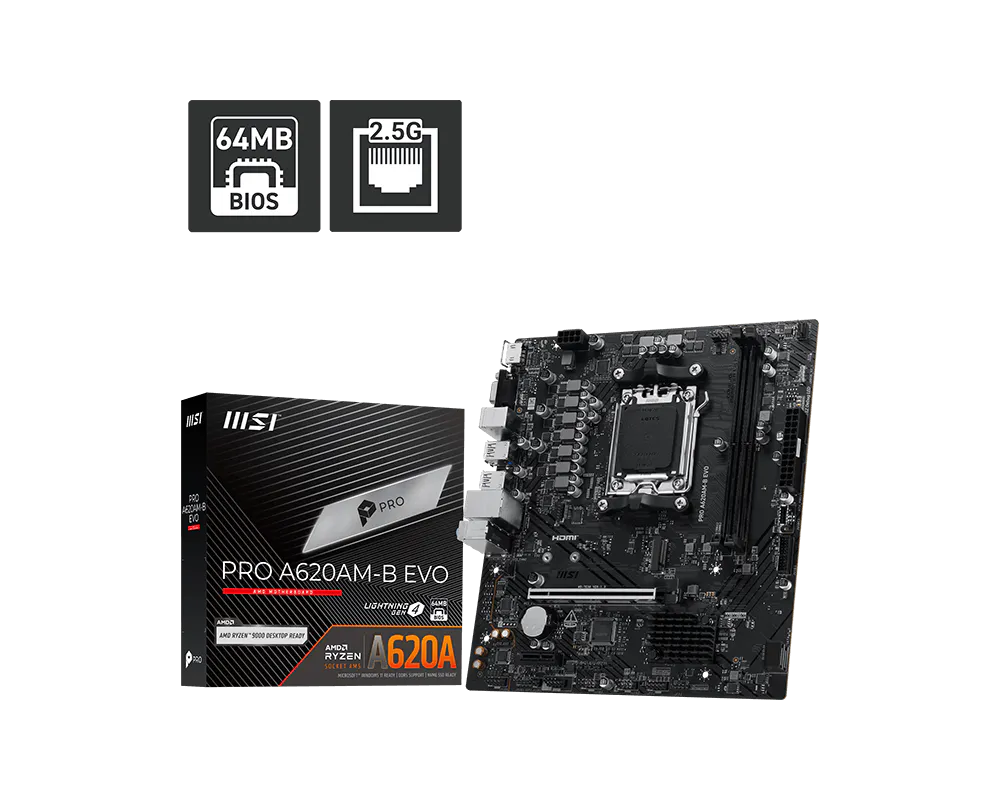

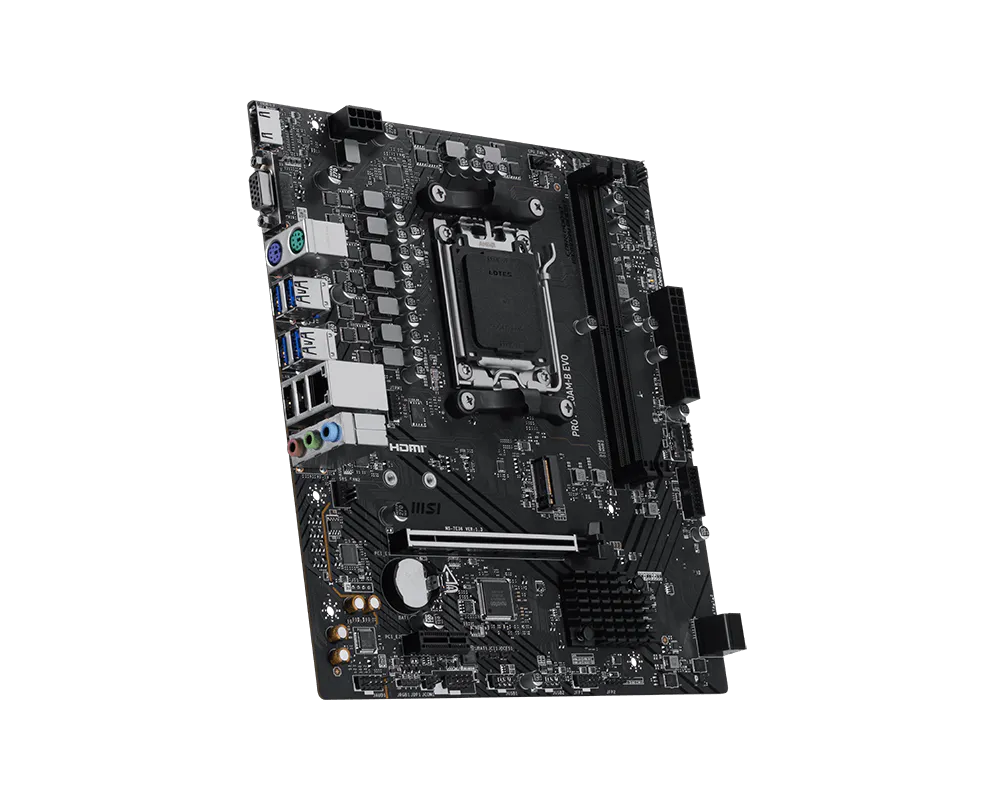

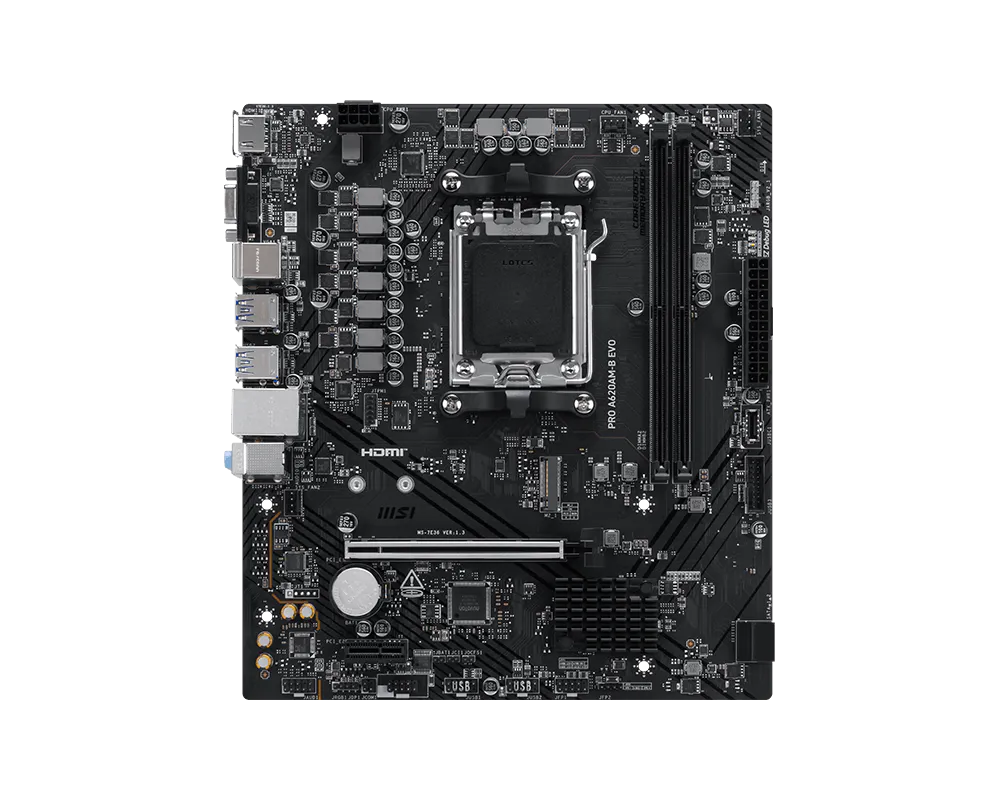

The MSI PRO A620AM-B EVO DDR5 AM5 Micro-ATX Motherboard is a versatile and reliable platform designed for productivity-focused builds and mainstream gaming. Built on the AMD A620A chipset with an AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 series processors, ensuring stable performance through its robust power design and efficient thermal management.
With a compact Micro-ATX form factor, this motherboard accommodates DDR5 memory up to 6800+ MHz (OC) and a maximum capacity of 128 GB, supporting dual-channel configurations and AMD EXPO™ overclocking for enhanced memory performance. It features PCIe 4.0 and 3.0 slots, along with an M.2 slot and 2 SATA III ports for flexible storage options.
Connectivity is comprehensive, including 2.5Gb Ethernet, USB 5Gbps Type-A and Type-C ports, and internal headers for system fans and RGB lighting. Integrated graphics support via HDMI 2.1 and VGA ensures versatile display options. Cooling is enhanced with multiple fan headers, and the RGB ecosystem is supported through addressable and standard RGB headers.
The MSI PRO A620AM-B EVO DDR5 AM5 Micro-ATX Motherboard delivers a reliable, future-ready foundation for efficient and stable PC builds.
