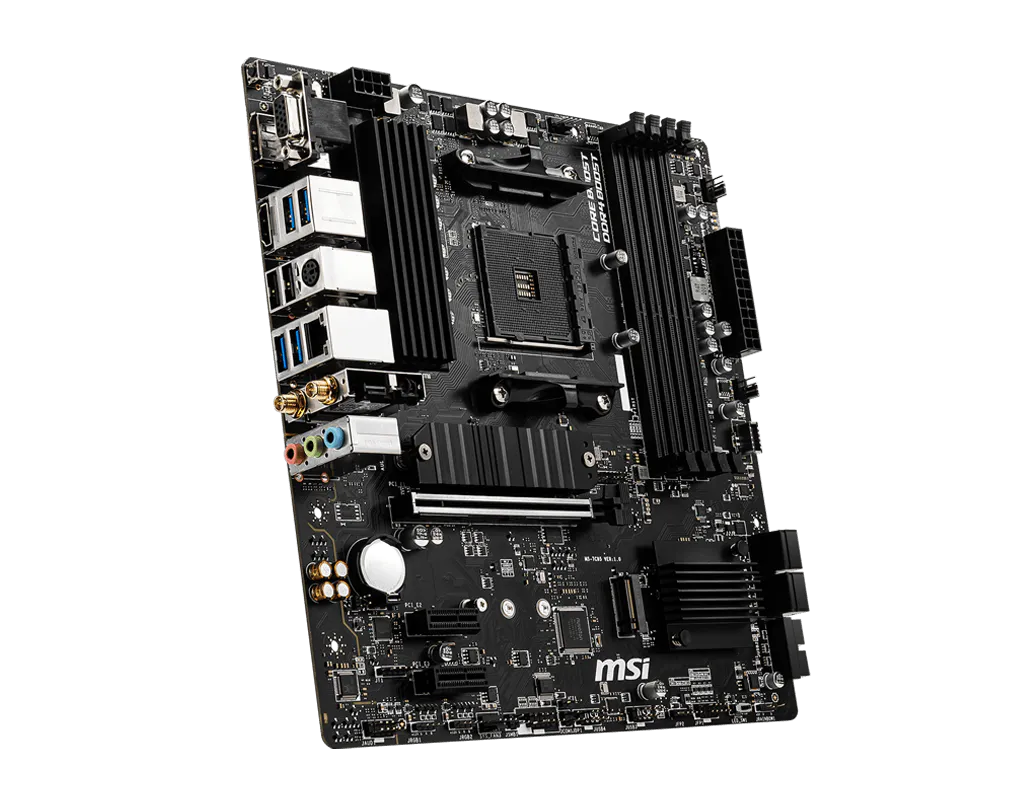

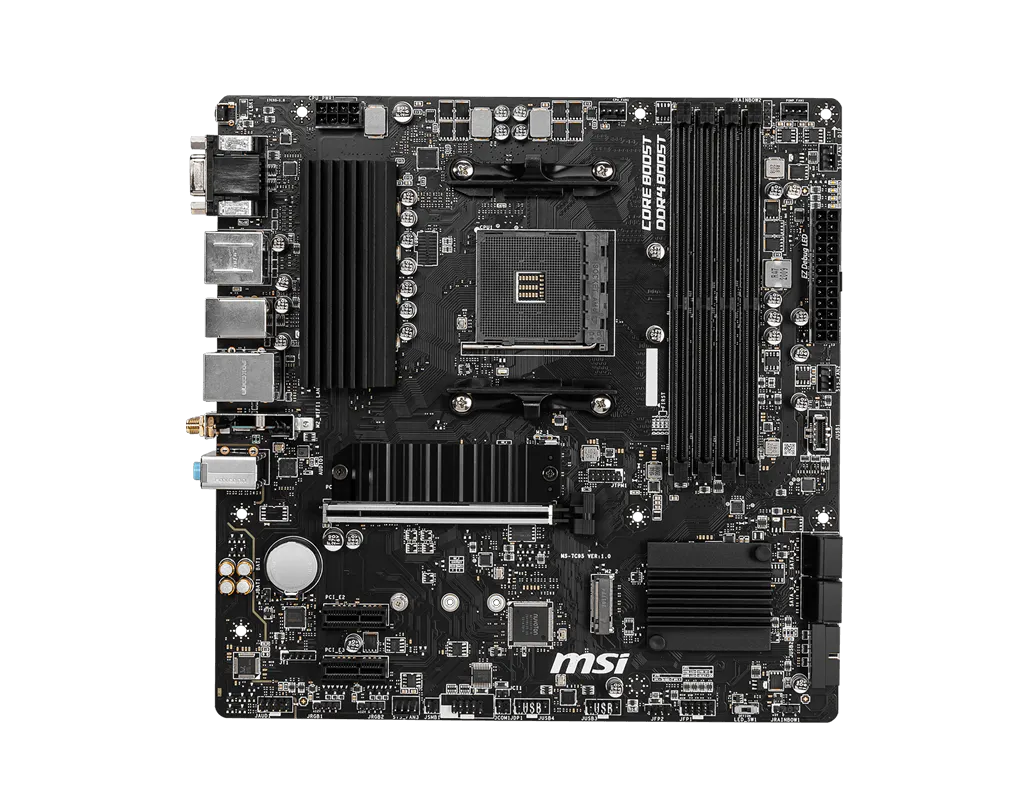

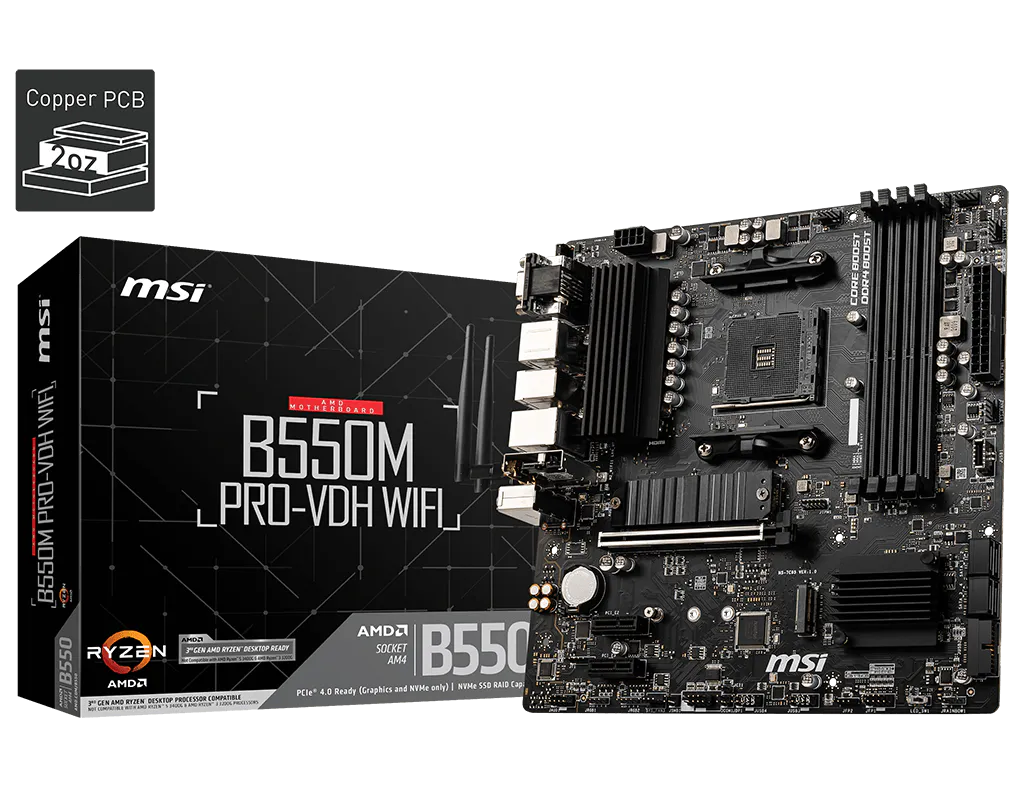

MSI PRO B550M PRO-VDH WIFI DDR4 AM4 Micro-ATX Motherboard

Name: MSI PRO B550M PRO-VDH WIFI DDR4 AM4 Micro-ATX Motherboard
Brand: MSI
SKU: TN-10227
Price: 39999 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

39,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: Realtek RTL8111H Gigabit LAN
Audio: Realtek ALC892/ALC897 7.1 HD Audio
Brand: MSI
Model: PRO B550M PRO-VDH WIFI
Chipset: B550
RAM Type: DDR4
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0/3.0)
RAM Speed: DDR4 4400+ MHz (OC)

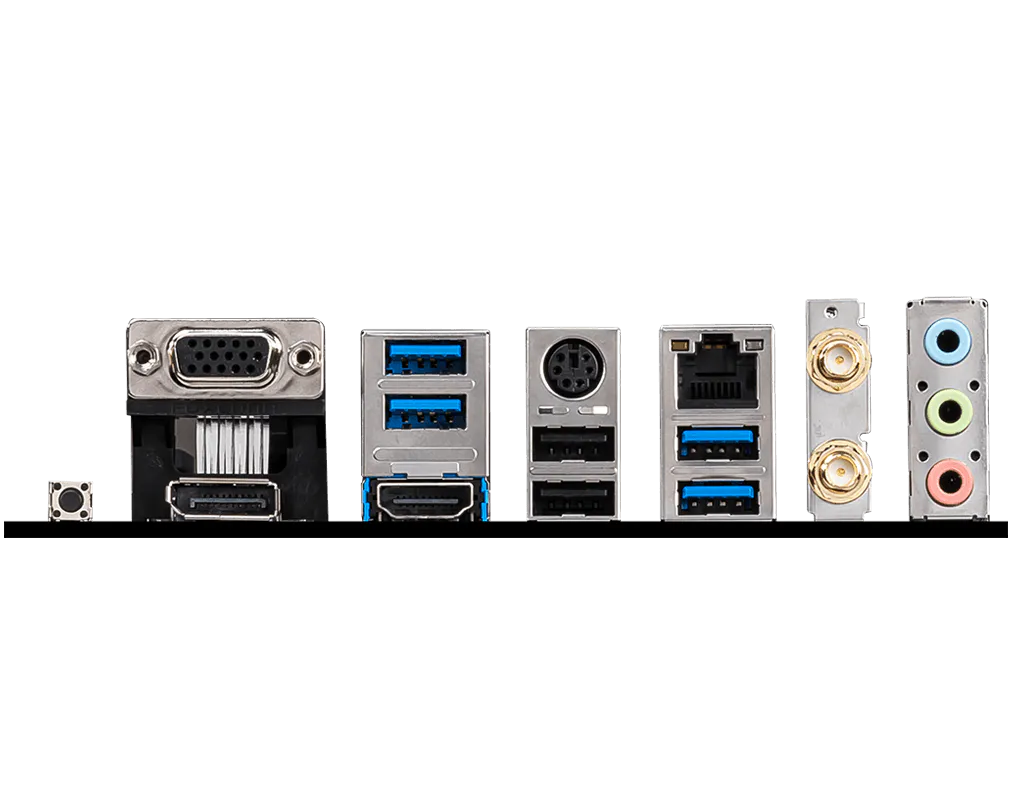

USB Ports: • Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB-C Header • Front: 2 x USB 3.2 Gen 1
CPU Socket: AM4
PCIe Slots: 1 x PCIe 4.0/3.0 x16 2 x PCIe 3.0 x1
SATA Ports: 4 x SATA III
Form Factor: Micro-ATX
RGB Support: Yes – Mystic Light
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0
RAM Capacity: 128 GB
Supported CPUs: AMD Ryzen 3000, 4000 G-Series, and 5000 Series Processors
Graphics Output: 1 x HDMI 2.1 1 x DisplayPort 1.4 1 x VGA
Cooling Features: Extended Heatsink Design + M.2 Shield Frozr
Internal Headers: • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x USB-C Header • 2 x USB 2.0 Headers • 3 x Fan Headers
Wireless Connectivity: WiFi-AC + Bluetooth 4.2

39,999PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The MSI PRO B550M PRO-VDH WIFI DDR4 AM4 Micro-ATX Motherboard is a versatile and efficient solution designed for professionals and creators who require stability and modern connectivity. Built on the AMD B550 chipset, this motherboard supports third-generation Ryzen processors and beyond, offering a perfect balance between value and performance. It features a streamlined power delivery system and reinforced components to handle sustained workloads without compromising on reliability.

Equipped with PCIe 4.0 technology, the MSI PRO B550M PRO-VDH WIFI DDR4 AM4 Micro-ATX Motherboard provides lightning-fast bandwidth for the latest graphics cards and NVMe SSDs. Users in Pakistan will appreciate the integrated WiFi-AC and Bluetooth 4.2, which offer convenient wireless networking right out of the box. With support for up to 128 GB of DDR4 memory across four DIMM slots and dual M.2 connectors, this gaming motherboard ensures you have the expansion room needed for demanding applications. The inclusion of Core Boost and DDR4 Boost technologies further optimizes signal traces for maximum system stability.

MSI PRO B550M PRO-VDH WIFI DDR4 AM4 Micro-ATX Motherboard: AMD B550, PCIe 4.0, Dual M.2, WiFi-AC, and 128 GB RAM support. Best Price in Pakistan at TechNod.

Specifications

LAN

Realtek RTL8111H Gigabit LAN

Audio

Realtek ALC892/ALC897 7.1 HD Audio

Brand

MSI

Model

PRO B550M PRO-VDH WIFI

Chipset

B550

RAM Type

DDR4

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0/3.0)

RAM Speed

DDR4 4400+ MHz (OC)

USB Ports

• Rear: 4 x USB 3.2 Gen 1 • Rear: 2 x USB 2.0 • Front: 1 x USB-C Header • Front: 2 x USB 3.2 Gen 1

CPU Socket

AM4

PCIe Slots

1 x PCIe 4.0/3.0 x16 2 x PCIe 3.0 x1

SATA Ports

4 x SATA III

Form Factor

Micro-ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0

RAM Capacity

128 GB

Supported CPUs

AMD Ryzen 3000, 4000 G-Series, and 5000 Series Processors

Graphics Output

1 x HDMI 2.1 1 x DisplayPort 1.4 1 x VGA

Cooling Features

Extended Heatsink Design + M.2 Shield Frozr

Internal Headers

• 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x USB-C Header • 2 x USB 2.0 Headers • 3 x Fan Headers

Wireless Connectivity

WiFi-AC + Bluetooth 4.2

About this product

MSI PRO B550M PRO-VDH WIFI DDR4 AM4 Micro-ATX Motherboard: AMD B550, PCIe 4.0, Dual M.2, WiFi-AC, and 128 GB RAM support. Best Price in Pakistan at TechNod.
