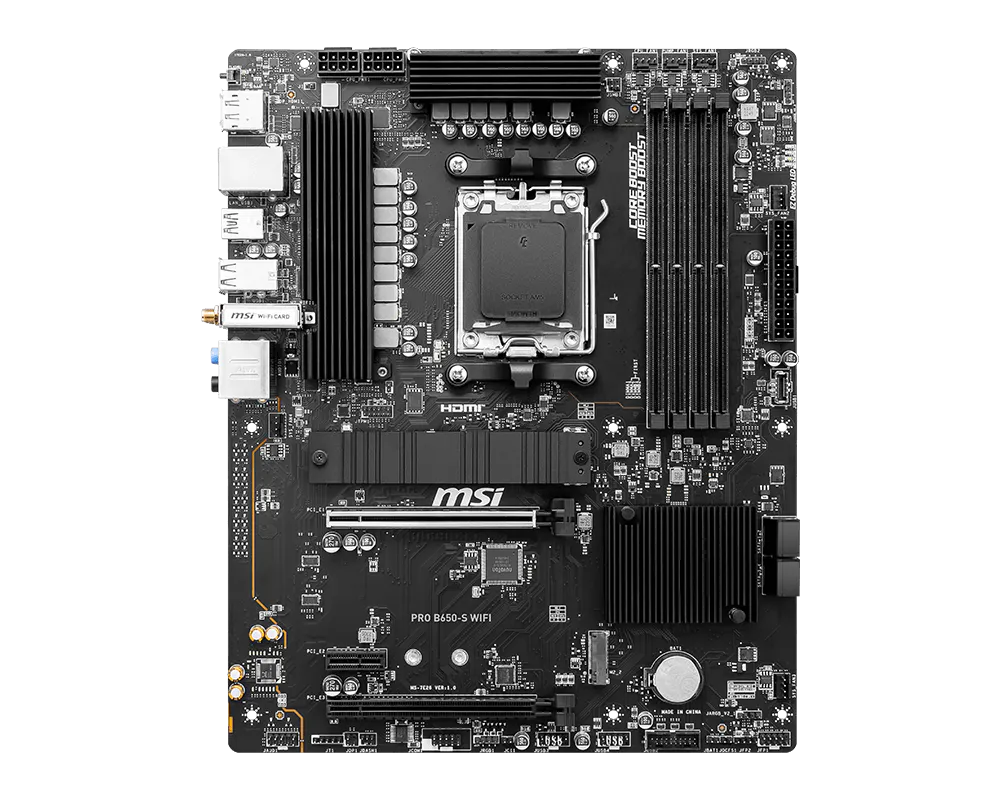

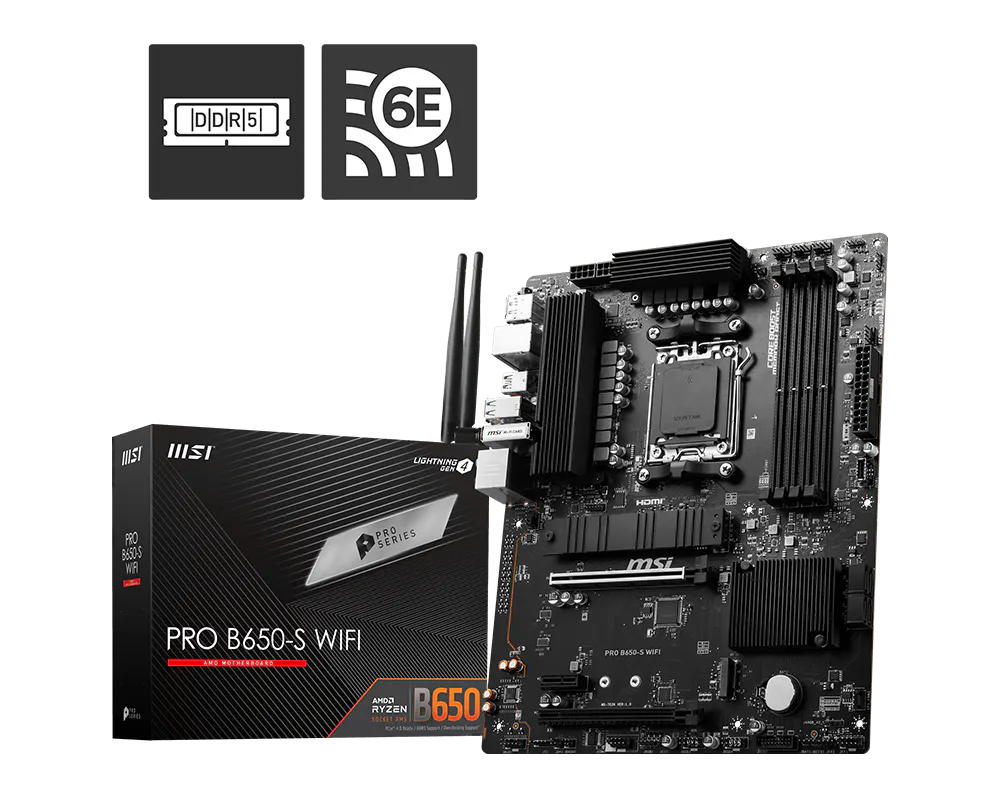

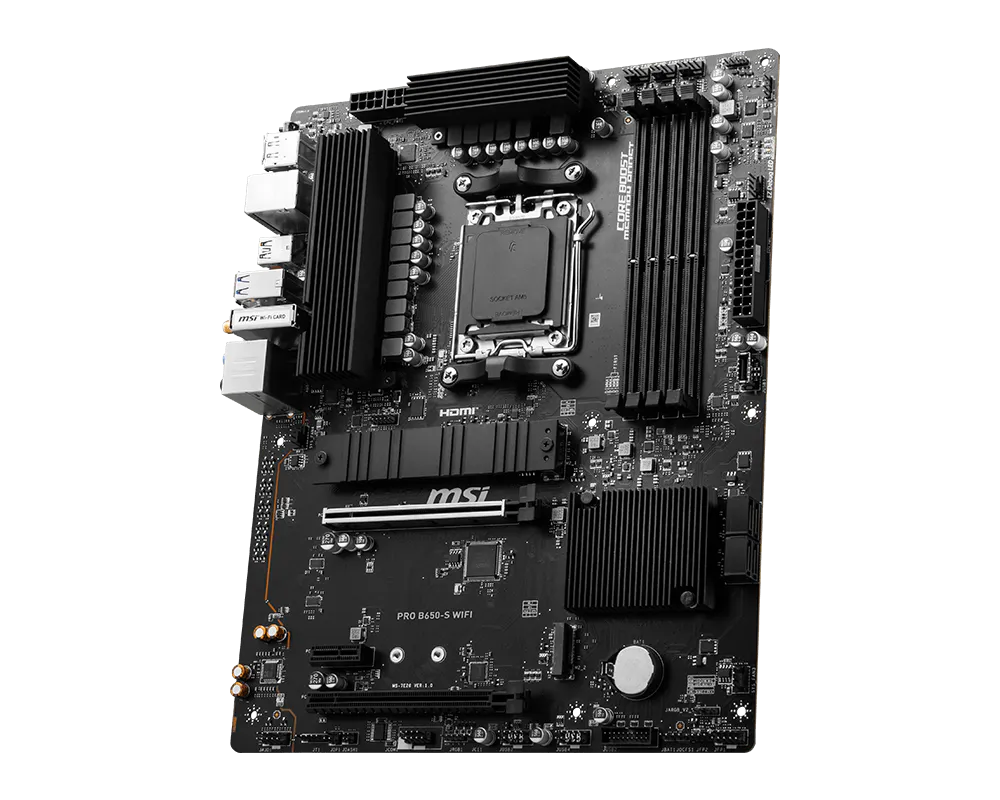

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

Name: MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
Brand: MSI
SKU: TN-10106
Price: 53499 PKR
Availability: OutOfStock

Manufacturer's page

1 / 4

53,499PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

Specifications

LAN: 2.5Gb Ethernet
Audio: Realtek ALC897 7.1 HD Audio
Brand: MSI
Model: PRO B650-S WIFI
Chipset: AMD B650
RAM Type: DDR5
Warranty: 10 Months Local Warranty
M.2 Slots: 2 x M.2 (PCIe 4.0 x4)
RAM Speed: DDR5 7200+ MHz (OC)

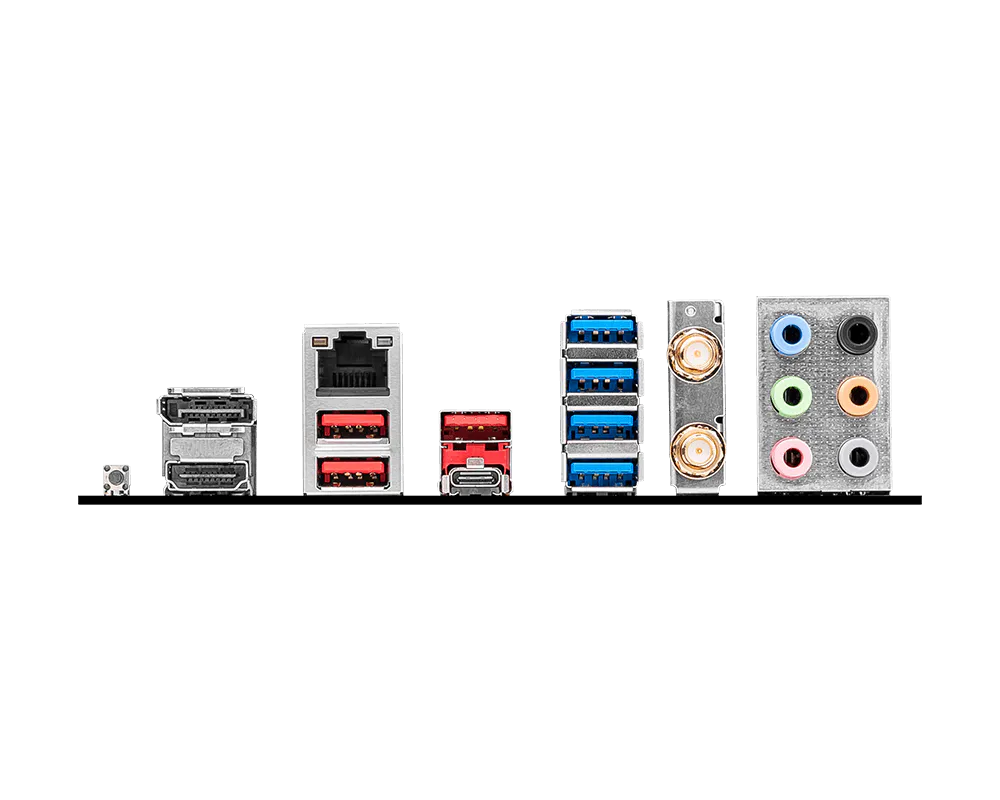

USB Ports: • Rear: 3 x USB 10Gbps Type-A • Rear: 1 x USB 20Gbps Type-C • Rear: 4 x USB 5Gbps Type-A • Front: 1 x USB 10Gbps Type-C • Front: 2 x USB 5Gbps Type-A • Front: 4 x USB 2.0
CPU Socket: AM5
PCIe Slots: 2 x PCIe x16 1 x PCIe 3.0 x1
SATA Ports: 4 x SATA III
Form Factor: ATX
RGB Support: Yes – RGB Fusion
Memory Slots: 4 x DIMM
PCIe Version: PCIe 4.0 / 3.0
RAM Capacity: 256 GB
Supported CPUs: AMD Ryzen 9000/8000/7000 Series Processors
Graphics Output: 1 x HDMI 2.1 1 x DisplayPort 1.4
Cooling Features: VRM Heatsinks + Smart Fan Control
Internal Headers: • 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Pump Fan • 4 x System Fan • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Com Port (JCOM) • 1 x Tuning Controller (JDASH) • 2 x Addressable RGB Header (JARGB_V2) • 2 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C
Wireless Connectivity: Wi-Fi 6E + Bluetooth 5.3

53,499PKR

Out of stock

Ask about it on WhatsApp

10 Months Local Warranty

Keep your invoice to claim

Official store

Direct from brands

About this product

The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a robust platform tailored for gamers, professionals, and PC builders seeking high performance, advanced connectivity, and extensive memory support. Built on the AMD B650 chipset with an AM5 socket, it fully supports AMD Ryzen 9000, 8000, and 7000 series processors, offering excellent stability and system responsiveness.

With four DDR5 DIMM slots supporting up to 256 GB at 7200+ MHz (OC), the motherboard excels in multitasking and memory-intensive workloads. Expansion options include dual PCIe x16 slots, a PCIe x1 slot, dual M.2 NVMe slots, and four SATA III ports, ensuring fast storage and versatile graphics capabilities, with AMD Multi-GPU support for enhanced gaming performance.

Connectivity is comprehensive, featuring Wi-Fi 6E, Bluetooth 5.3, 2.5Gb Ethernet, multiple USB ports including USB 10Gbps Type-A, 20Gbps Type-C, and integrated display outputs (HDMI 2.1 and DisplayPort 1.4). The board also offers extensive internal headers for fans, RGB lighting, and cooling controllers, along with EZ Debug LEDs for simplified troubleshooting.

The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard combines power, speed, and modern features for a future-ready PC build.

Specifications

LAN

2.5Gb Ethernet

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

PRO B650-S WIFI

Chipset

AMD B650

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

2 x M.2 (PCIe 4.0 x4)

RAM Speed

DDR5 7200+ MHz (OC)

USB Ports

• Rear: 3 x USB 10Gbps Type-A • Rear: 1 x USB 20Gbps Type-C • Rear: 4 x USB 5Gbps Type-A • Front: 1 x USB 10Gbps Type-C • Front: 2 x USB 5Gbps Type-A • Front: 4 x USB 2.0

CPU Socket

AM5

PCIe Slots

2 x PCIe x16 1 x PCIe 3.0 x1

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – RGB Fusion

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0 / 3.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen 9000/8000/7000 Series Processors

Graphics Output

1 x HDMI 2.1 1 x DisplayPort 1.4

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x CPU Fan • 1 x Pump Fan • 4 x System Fan • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Com Port (JCOM) • 1 x Tuning Controller (JDASH) • 2 x Addressable RGB Header (JARGB_V2) • 2 x RGB Header (JRGB) • 1 x TPM Header • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C

Wireless Connectivity

Wi-Fi 6E + Bluetooth 5.3

About this product

The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard combines power, speed, and modern features for a future-ready PC build.
