| Brand | MSI |
| Model | PRO B650M-B |
| Chipset | AMD B650 |
| CPU Socket | AM5 |
| Form Factor | Micro-ATX |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| RAM Type | DDR5 |
| RAM Capacity | 128 GB |
| RAM Speed | DDR5 6800+ MHz (OC) |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 |
| M.2 Slots | 1 x M.2 (PCIe 4.0 x4) |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x HDMI 2.1 1 x VGA (requires CPU with integrated graphics) |
| LAN | 2.5Gb Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek ALC897 7.1 HD Audio |
| USB Ports | • Rear: 4 x USB 3.2 Gen 1 Type-A • Rear: 2 x USB 2.0 • Front: 2 x USB 3.2 Gen 1 Type-A • Front: 4 x USB 2.0 |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x CPU Fan Header • 2 x System Fan Headers • 2 x Front Panel Headers • 1 x Chassis Intrusion Header • 1 x Front Audio Header • 1 x COM Header • 1 x ARGB V2 Header • 1 x RGB Header • 1 x TPM Header • 2 x USB 2.0 Headers • 1 x USB 3.2 Gen 1 Header |
| Cooling Features | Chipset Heatsink + Frozr AI Cooling + PWM/DC Fan Control |
| RGB Support | Yes – Mystic Light |
| Warranty | 10 Months Local Warranty |

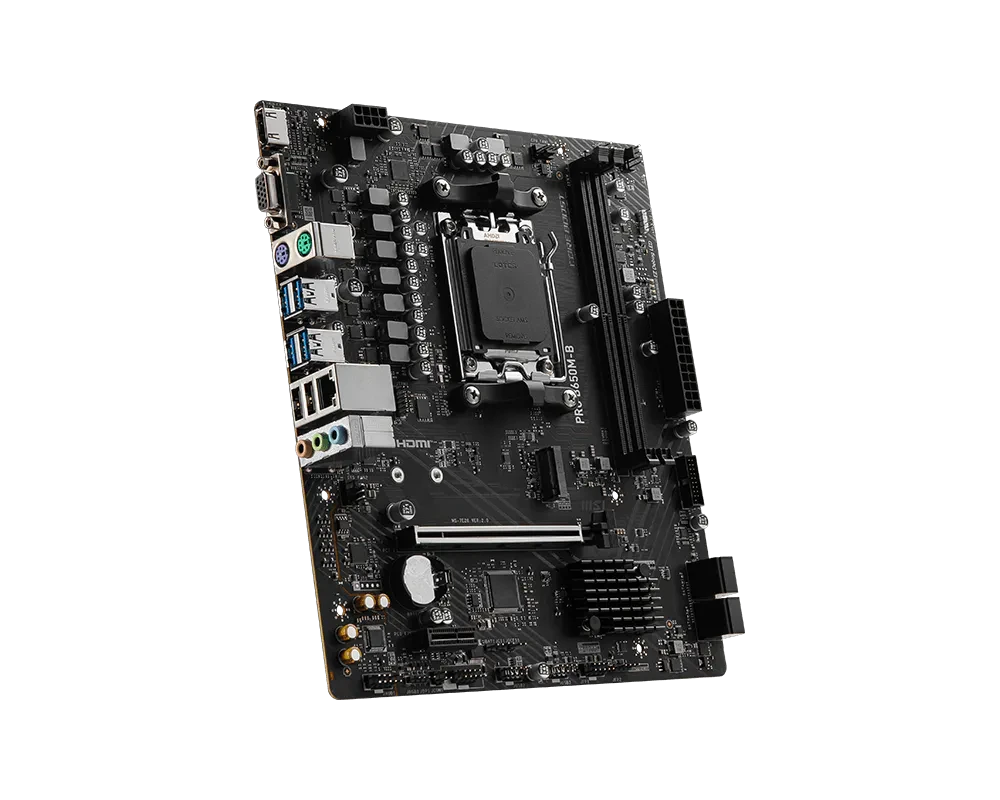

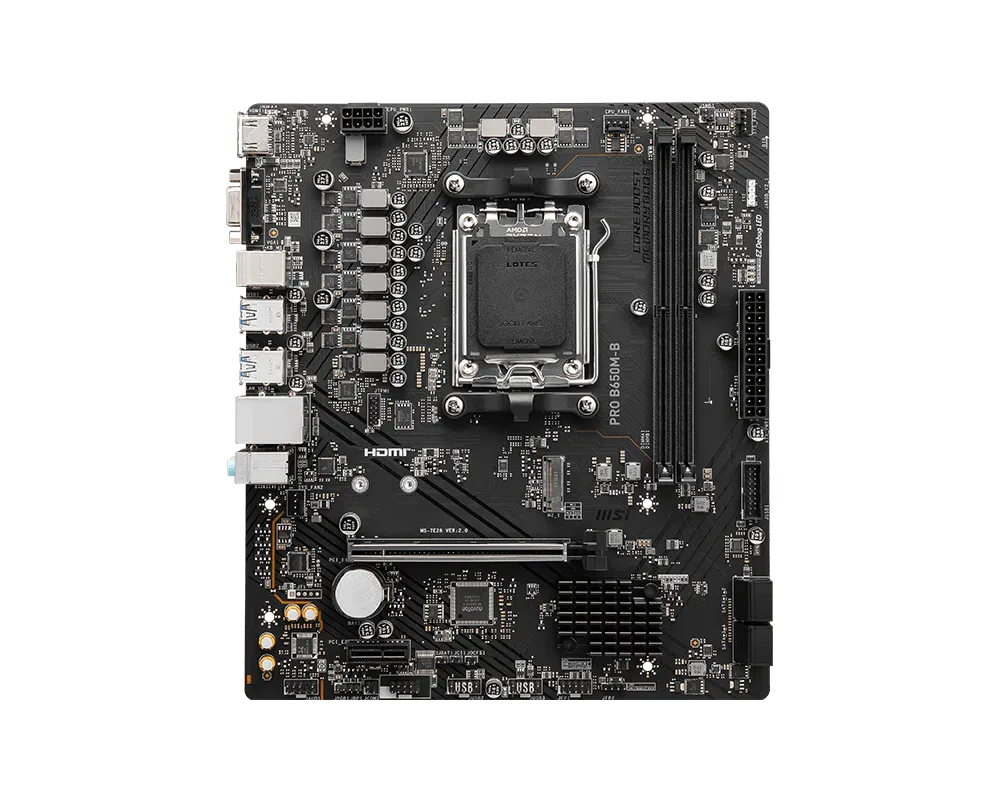

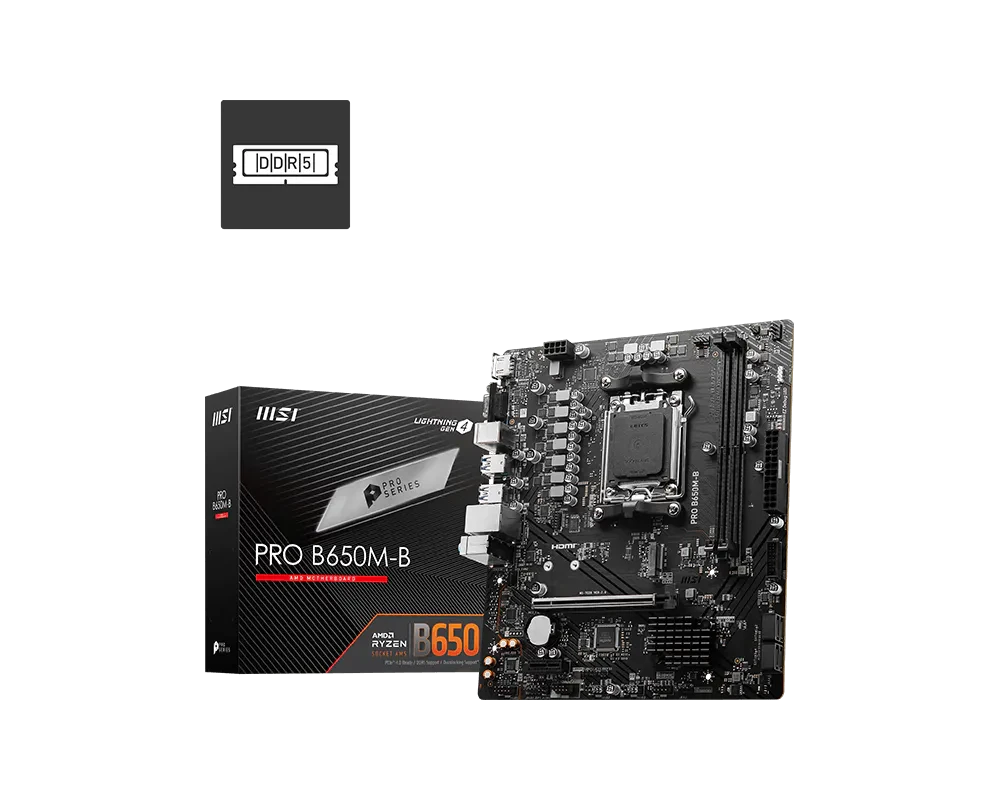

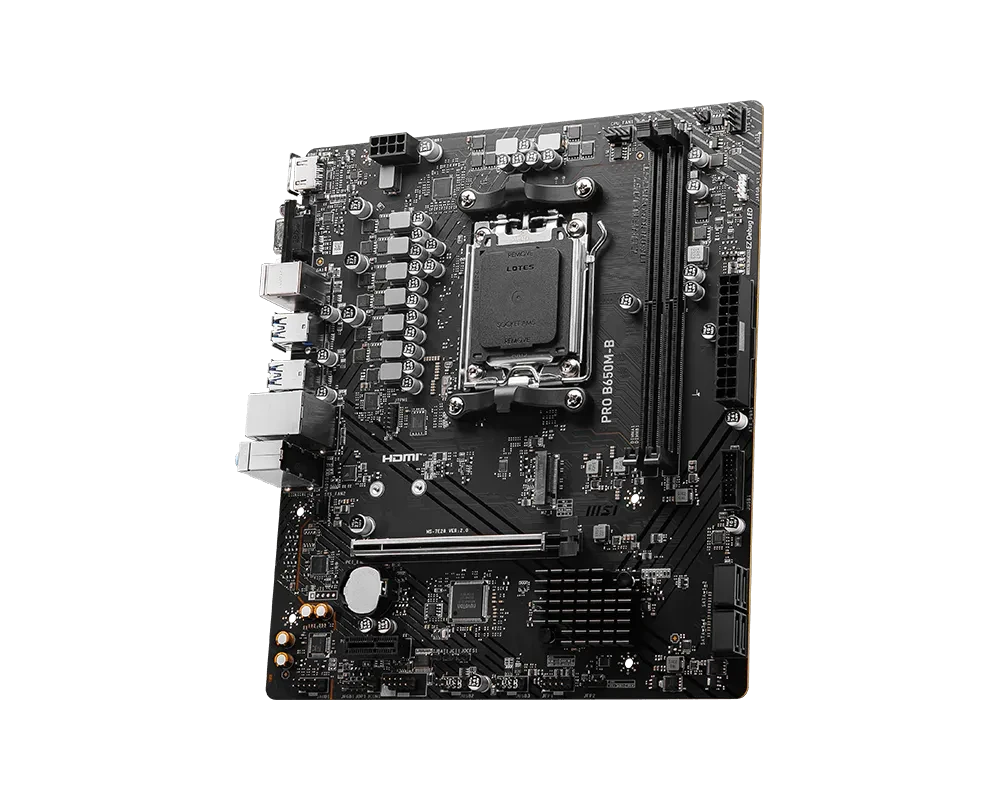

The MSI PRO B650M-B DDR5 AM5 Micro-ATX Motherboard gives compact desktop builds an AMD B650 chipset and AM5 socket for Ryzen 9000, 8000 and 7000 Series processors. Its two DDR5 DIMM slots support up to 128 GB and 6800+ MHz overclocked memory, with AMD EXPO profiles for compatible kits. The Micro-ATX layout suits everyday workstations and gaming PCs in Pakistan.
A PCIe 4.0 x16 slot supports a dedicated graphics card, while one PCIe 4.0 x4 M.2 slot and four SATA ports provide SSD and hard drive connections. Integrated 2.5Gb Ethernet handles wired networking, and Realtek ALC897 audio delivers 7.1 channel sound. Rear HDMI and VGA outputs work with processors that include integrated graphics.
The MSI PRO B650M-B motherboard includes a chipset heatsink, three fan headers, EZ Debug LEDs and RGB expansion headers. Fan controls in BIOS and software help adjust cooling to your workload, while the accessible layout makes installation and troubleshooting straightforward.
MSI PRO B650M-B DDR5 AM5 motherboard supports Ryzen processors, PCIe 4.0 M.2 storage and 2.5Gb LAN for everyday builds. Best Price in Pakistan at TechNod.
