| Brand | MSI |
| Model | PRO B760M-E DDR4 |
| Chipset | B760 |
| CPU Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Supported CPUs | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| RAM Type | DDR4 |
| RAM Capacity | 64 GB |
| RAM Speed | DDR4 4800+ MHz (OC) |
| Memory Slots | 2 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 |
| M.2 Slots | 1 x M.2 (PCIe 4.0/SATA) |
| SATA Ports | 4 x SATA III |
| Graphics Output | 1 x HDMI 1.4 1 x VGA |
| LAN | Gigabit Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek ALC897 7.1 HD Audio |
| USB Ports | • Rear: 2 x USB 3.2 Gen 1 • Rear: 4 x USB 2.0 • Front: 2 x USB 3.2 Gen 1 • Front: 4 x USB 2.0 |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x RGB Header • 1 x TPM Header • 2 x USB 2.0 Headers • 3 x Fan Headers |
| Cooling Features | Basic Heatsink + Smart Fan Control |
| RGB Support | Yes – MSI Mystic Light |
| Warranty | 10 Months Local Warranty |

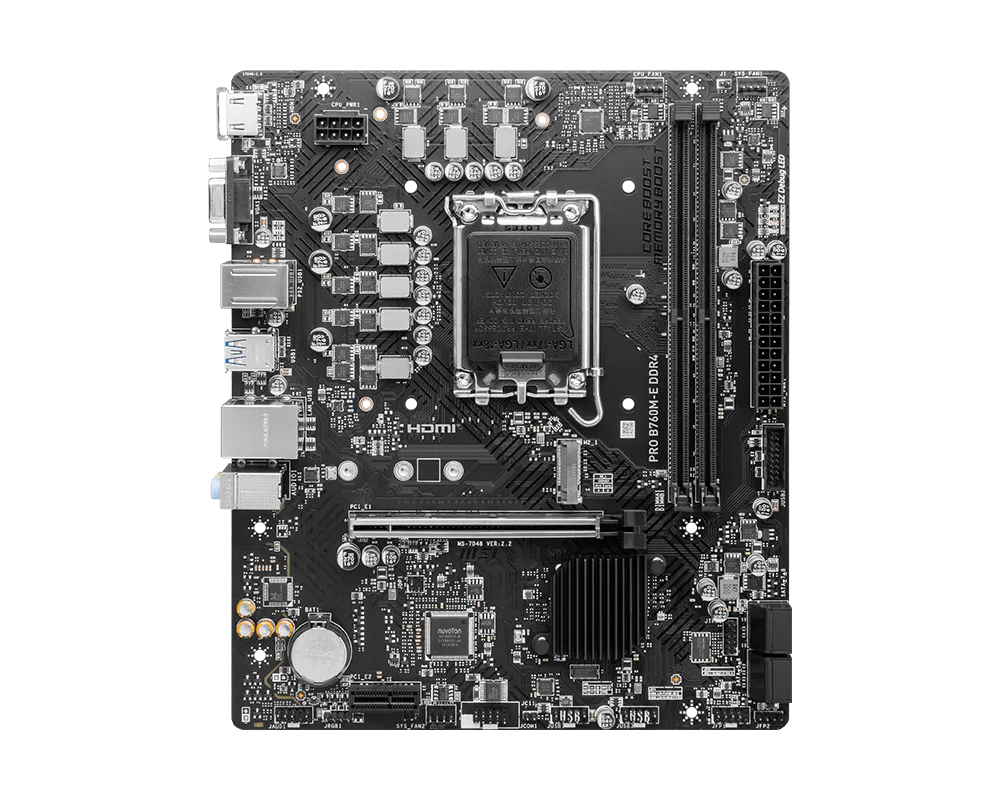

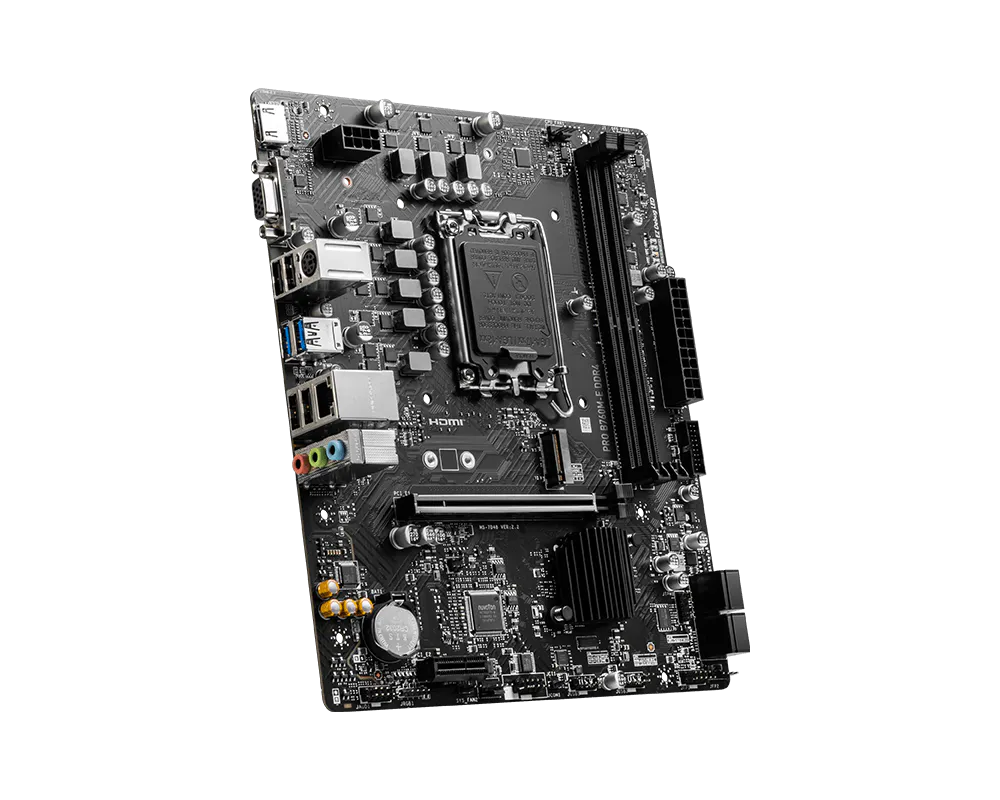

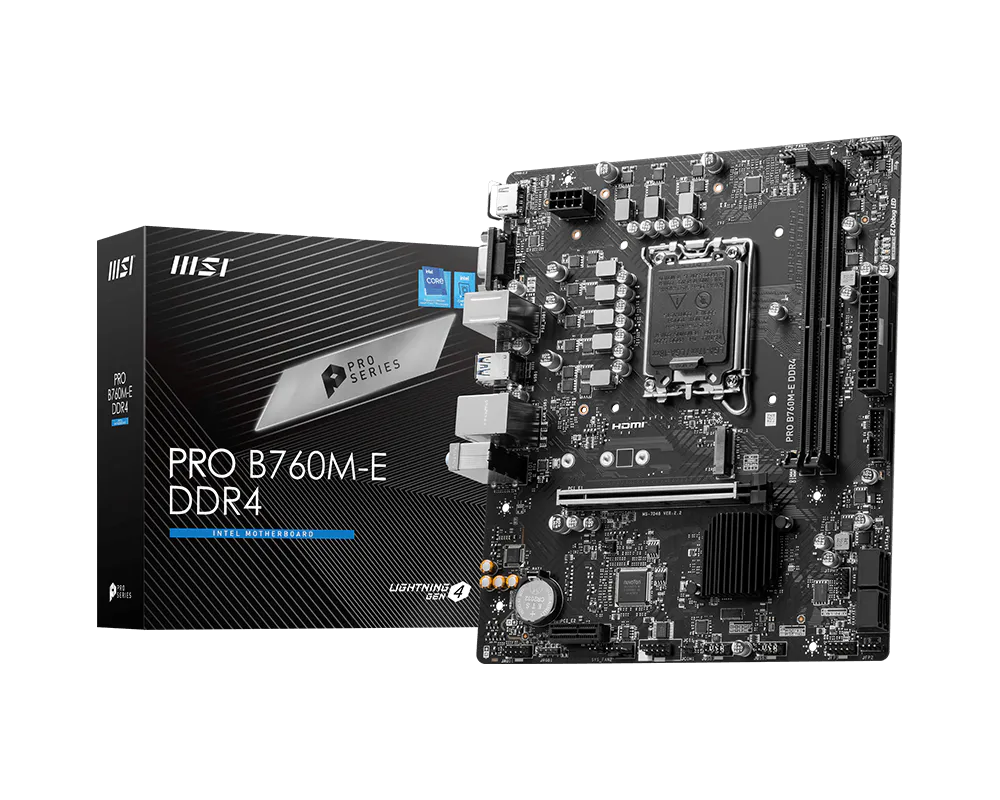

The MSI PRO B760M-E DDR4 LGA1700 Micro-ATX Motherboard is built to deliver reliable performance and essential features for modern computing environments. Powered by the Intel B760 chipset and supporting 12th, 13th, and 14th Gen Intel Core processors, it offers a balanced platform for office productivity, home use, and entry-level gaming systems.
With support for DDR4 memory up to 4800+ MHz (OC) and a maximum capacity of 64GB, this motherboard ensures stable multitasking and smooth everyday performance. The compact Micro-ATX form factor makes it ideal for smaller builds, while still offering expansion through a PCIe 4.0 x16 slot and fast storage via an M.2 slot supporting both PCIe 4.0 and SATA modes.

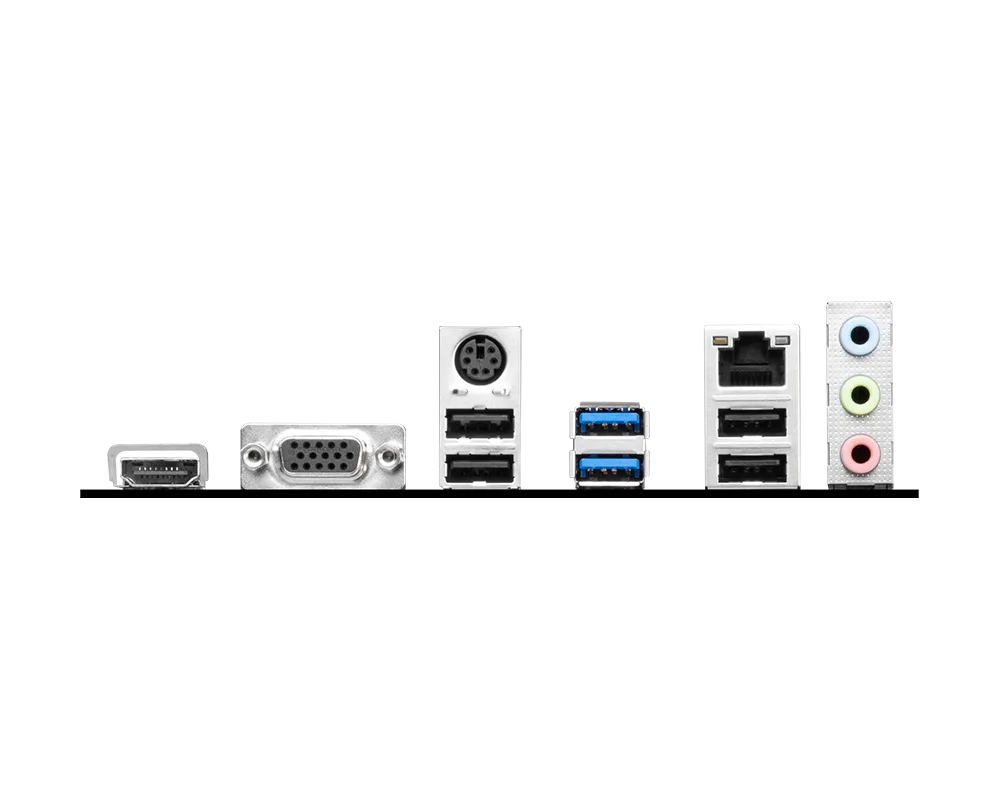

Connectivity is versatile with HDMI and VGA outputs, Gigabit LAN, and multiple USB ports for peripherals and accessories. Enhanced with EZ Debug LEDs, essential cooling features, and an RGB header, the MSI PRO B760M-E DDR4 LGA1700 Micro-ATX Motherboard is a dependable, cost-effective, and future-ready choice for stable PC builds.
