| Brand | MSI |
| Model | PRO B760M-P DDR4 |
| Chipset | B760 |
| CPU Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Supported CPUs | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| RAM Type | DDR4 |
| RAM Capacity | 128 GB |
| RAM Speed | DDR4 4800+ MHz (OC) |
| Memory Slots | 4 x DIMM |
| PCIe Version | PCIe 4.0 |
| PCIe Slots | 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 |
| M.2 Slots | 2 x M.2 (1 x PCIe 4.0 from CPU, 1 x PCIe 4.0/SATA from Chipset) |
| SATA Ports | 4 x SATA III |

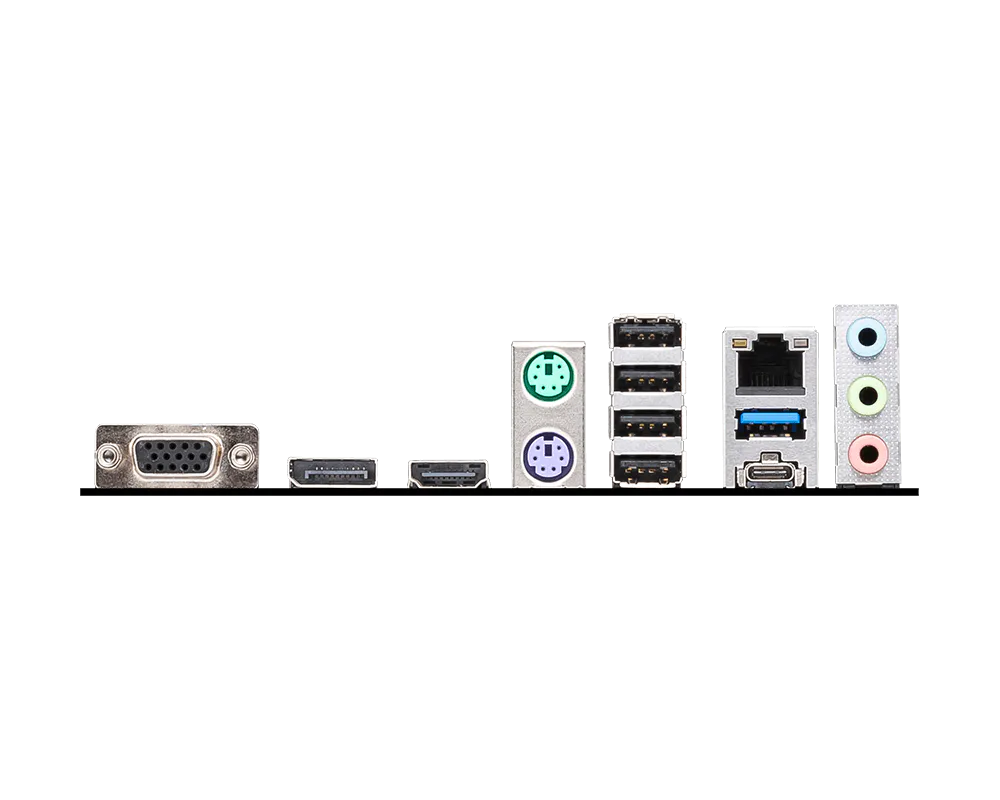

| Graphics Output | 1 x HDMI 1.4 1 x DisplayPort 1.4 1 x VGA |
| LAN | Gigabit Ethernet |
| Wireless Connectivity | N/A |
| Audio | Realtek ALC897 7.1 HD Audio |
| USB Ports | • Rear: 1 x USB 3.2 Gen 2 Type-C (10Gbps) • Rear: 1 x USB 3.2 Gen 1 Type-A (5Gbps) • Rear: 4 x USB 2.0 • Front: 2 x USB 3.2 Gen 1 Type-A (5Gbps) • Front: 4 x USB 2.0 |
| Internal Headers | • 1 x 24-pin ATX Power • 1 x 8-pin CPU Power • 1 x RGB Header • 1 x TPM Header • 2 x USB 5Gbps Type-A Headers • 4 x USB 2.0 Headers • 3 x Fan Headers • 1 x Printer Port • 1 x Com Port |
| Cooling Features | Basic Heatsink + Smart Fan Control |
| RGB Support | Yes – MSI Mystic Light |
| Warranty | 10 Months Local Warranty |

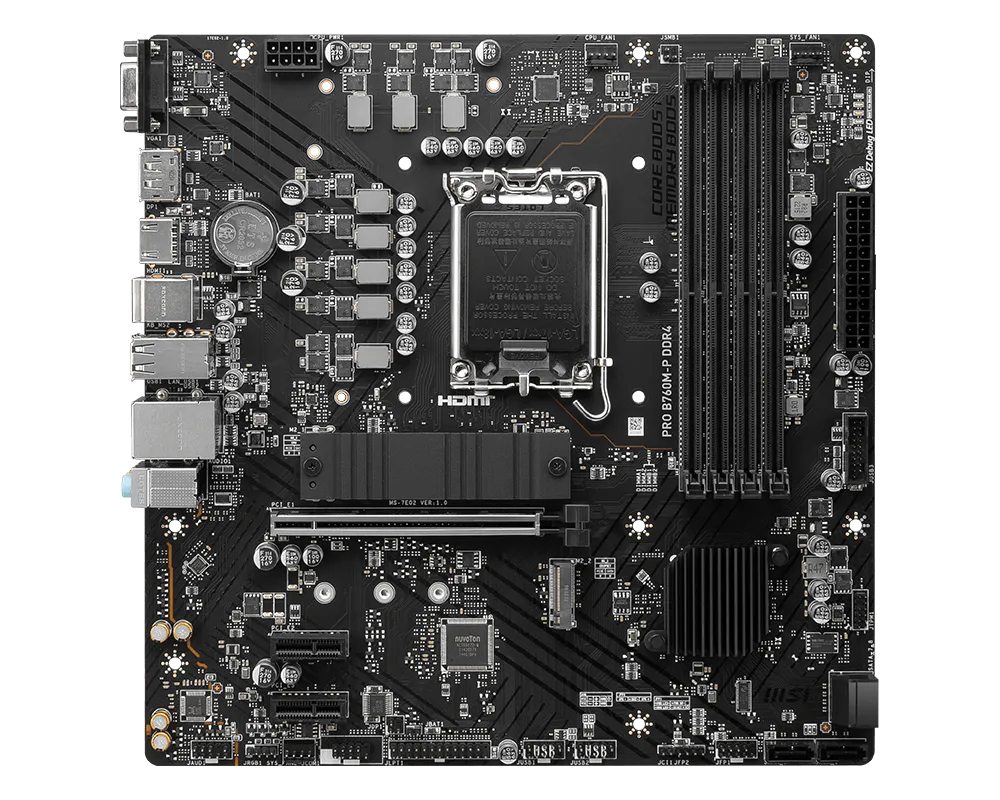

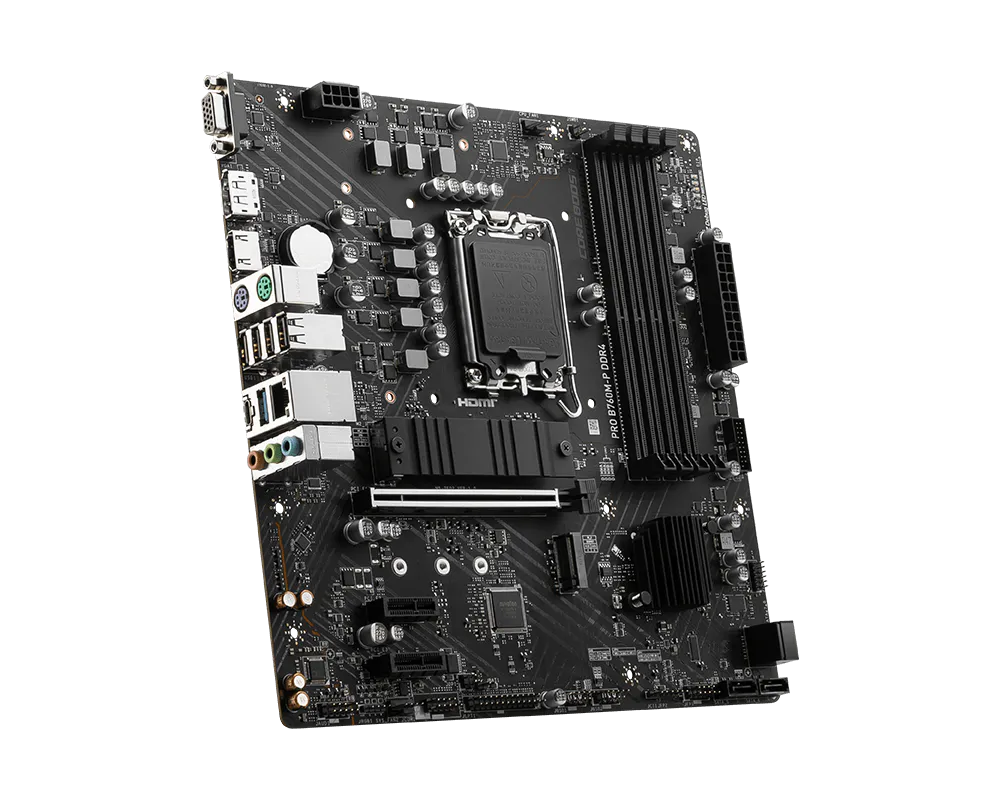

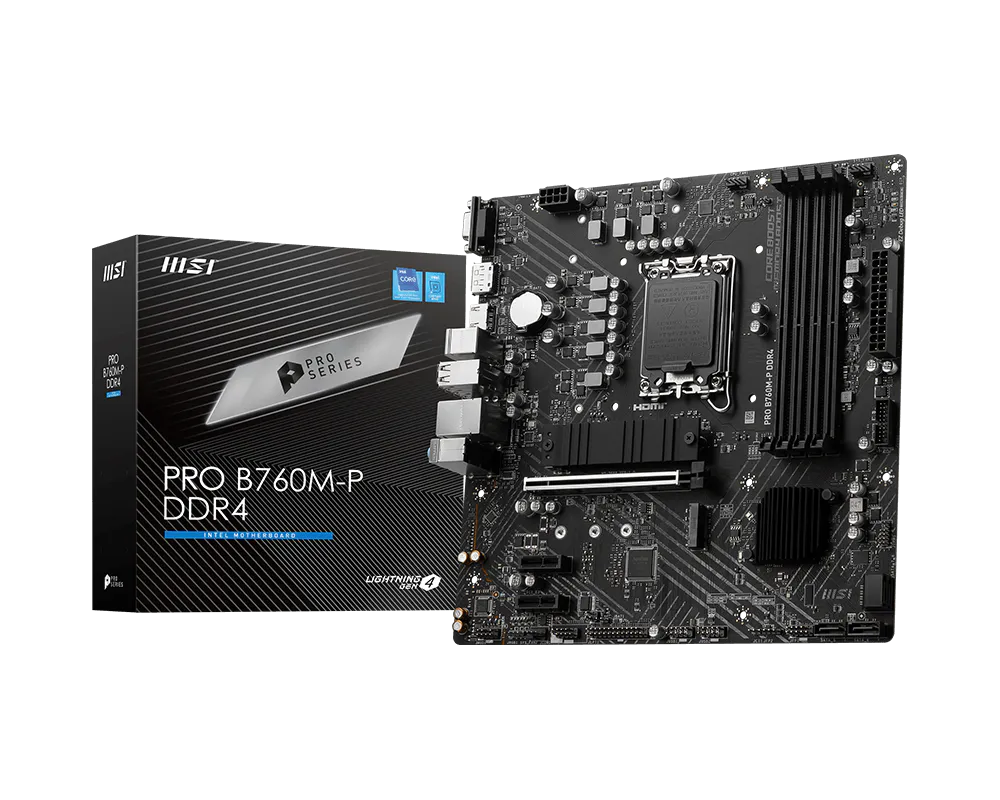

The MSI PRO B760M-P DDR4 LGA1700 Micro-ATX Motherboard offers robust performance and expandability for modern PC builds. Equipped with the Intel B760 chipset, it supports 12th, 13th, and 14th Gen Intel Core processors, along with Pentium Gold and Celeron CPUs, making it a versatile platform for office, home, and light gaming setups.
Featuring 4 DDR4 DIMM slots with a maximum memory capacity of 128GB, it supports high-speed overclocking up to 4800+ MHz and Intel XMP profiles for optimized performance. Dual-channel memory and dual-controller architecture ensure stability and multitasking efficiency.
For graphics, it includes HDMI, DisplayPort, and VGA outputs, while storage options include 2 M.2 slots (PCIe 4.0/SATA) and 4 SATA III ports with RAID support. The motherboard also provides Gigabit LAN, multiple USB 2.0/3.2 ports including a 10Gbps Type-C port, and convenient internal headers for RGB and TPM. The EZ Debug LED system and multiple fan headers simplify troubleshooting and cooling.
With a Micro-ATX form factor, this motherboard fits compact cases while still offering solid expandability, making the MSI PRO B760M-P DDR4 a reliable and future-proof choice for budget-conscious builds.
