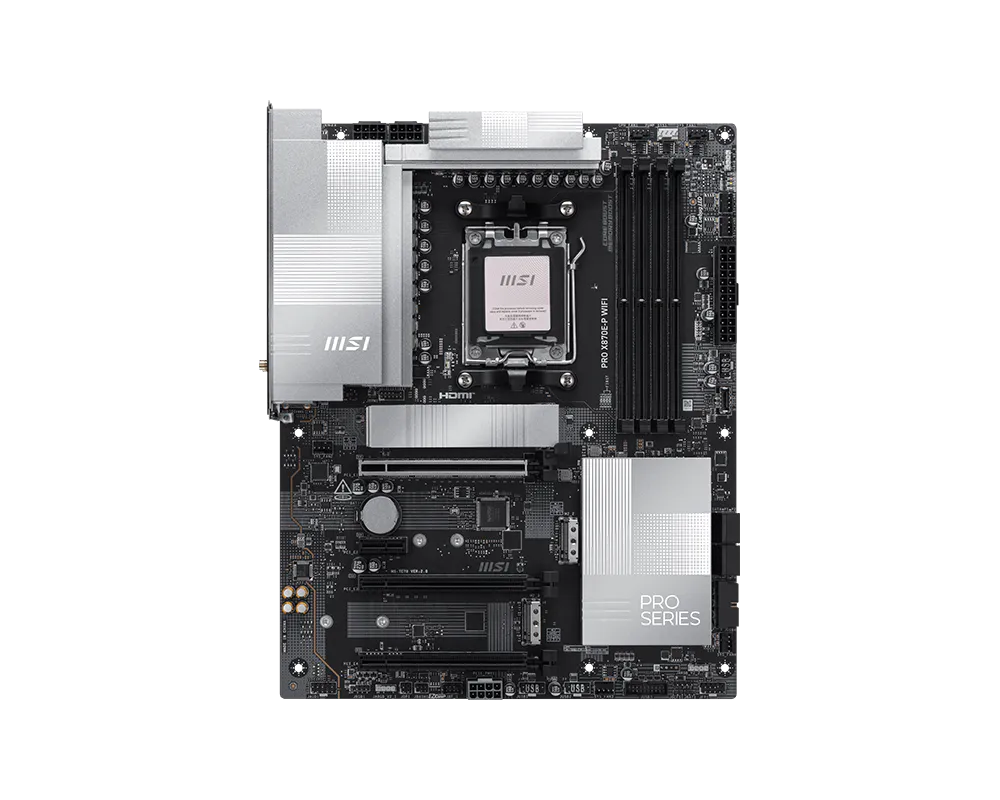

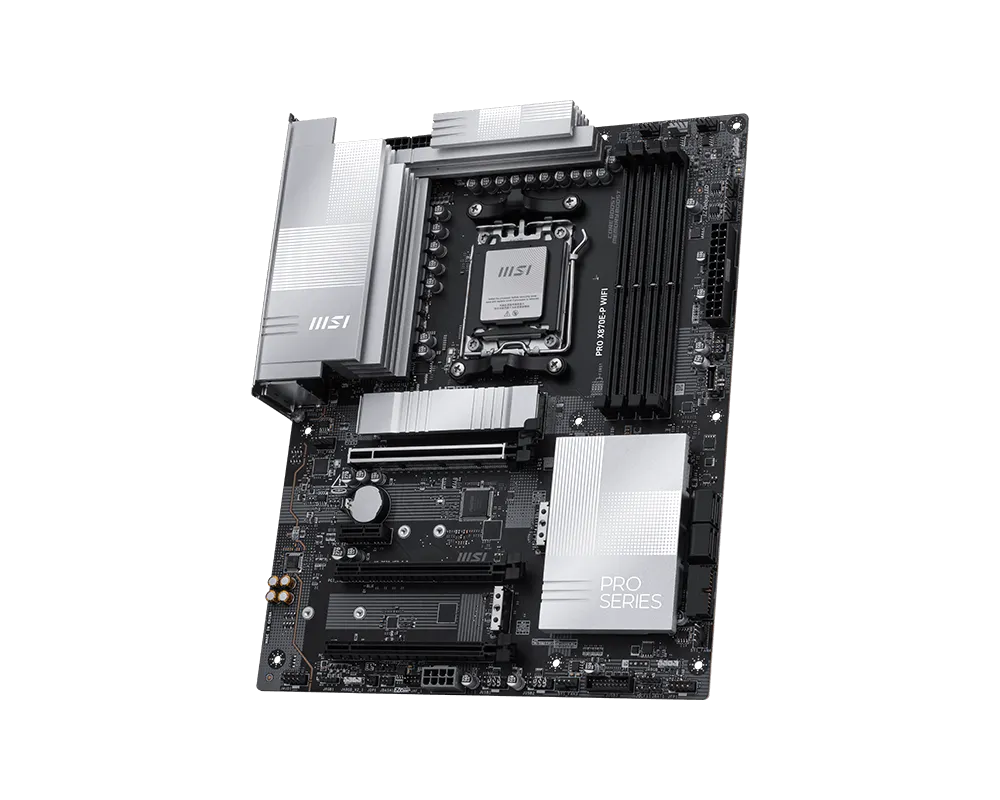

MSI PRO X870E-P WIFI DDR5 AM5 ATX Motherboard

Specifications

LAN

5Gb Ethernet

Audio

Realtek ALC897 7.1 HD Audio

Brand

MSI

Model

PRO X870E-P WIFI DDR5 AM5 ATX Motherboard

Chipset

AMD X870E

RAM Type

DDR5

Warranty

10 Months Local Warranty

M.2 Slots

3 x M.2 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4)

RAM Speed

DDR5 8200 – 5600 (OC)

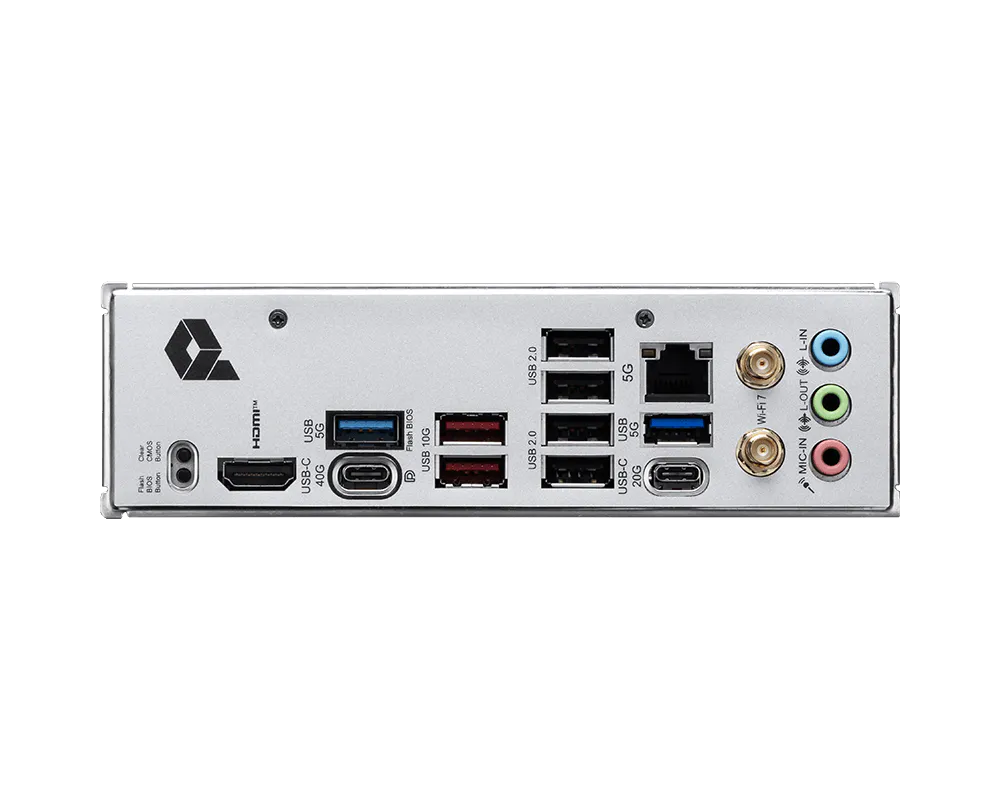

USB Ports

• Rear: 4 x USB 2.0 • Rear: 2 x USB 5Gbps Type-A • Rear: 2 x USB 10Gbps Type-A • Rear: 1 x USB 20Gbps Type-C • Rear: 1 x USB 40Gbps Type-C • Front: 6 x USB 2.0 • Front: 4 x USB 5Gbps Type-A • Front: 1 x USB 10Gbps Type-C

CPU Socket

AM5

PCIe Slots

3 x PCIe x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

SATA Ports

4 x SATA III

Form Factor

ATX

RGB Support

Yes – Mystic Light

Memory Slots

4 x DIMM

PCIe Version

PCIe 4.0 / PCIe 5.0

RAM Capacity

256 GB

Supported CPUs

AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Graphics Output

1 x HDMI 2.1, 1 x Type-C DisplayPort (USB4)

Cooling Features

VRM Heatsinks + Smart Fan Control

Internal Headers

• 1 x 24-pin ATX Power • 2 x 8-pin CPU Power • 1 x 8-pin PCIe Power • 1 x CPU Fan • 1 x Combo Fan (Pump_Sys Fan) • 6 x System Fan • 1 x EZ Conn-header (JAF_1) • 2 x Front Panel (JFP) • 1 x Chassis Intrusion (JCI) • 1 x Front Audio (JAUD) • 1 x Tuning Controller connector (JDASH) • 3 x Addressable V2 RGB LED connectors (JARGB_V2) • 1 x RGB LED connector (JRGB) • 1 x TPM pin header (Support TPM 2.0) • 6 x USB 2.0 ports • 4 x USB 5Gbps Type-A ports • 1 x USB 10Gbps Type-C port

Wireless Connectivity

Wi-Fi 7 + Bluetooth 5.4
